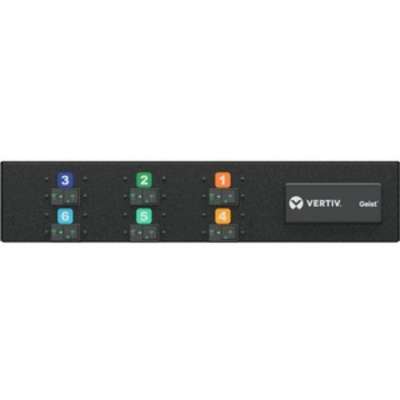

Vertiv Rpdu, Switched Unit Level Monitoring EC, 30A, 240/415V Wye, 17.2KW, Horizontal, (12

Add to Wishlist
  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.

AED14,699.00

Add to Wishlist

Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

SKU: VP5N31A4 Category: Tag:
Category Specification
General Information
Product Name Rpdu, Switched Unit Level Monitoring EC, 30A, 240/415V Wye, 17.2KW, Horizontal, (12)
Manufacturer Part Number VP5N31A4
Product Series rPDU
Product Model MNS5M1R6-12CF13-3TL56A0H10-S
Product Type PDU
Technical Information
PDU Type Switched
Phase Three Phase
Plug / Connector Type NEMA L22-30P
Plug / Connector Detail 1 x NEMA L22-30P
Receptacle Type Combination C13/C19
Receptacle Detail 12 x Combination C13/C19
Protection Type Overcurrent Protection, Single Pole
Load Capacity (Watt) 17.20 kW
Interfaces/Ports
Network (RJ-45) Yes
Environmental Conditions
Max Operating Temperature 140°F (60°C)
Management
Remote Outlet Switching Yes
Power Description
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC / 346 V AC – 415 V AC
Output Voltage 240 V AC
Power Rating (Watt) 17.20 kW
Input Current 30 A
Input Frequency 60 Hz
Physical Characteristics
Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Cord Length 10 ft
Height 1.7″
Width 17″
Depth 12″
