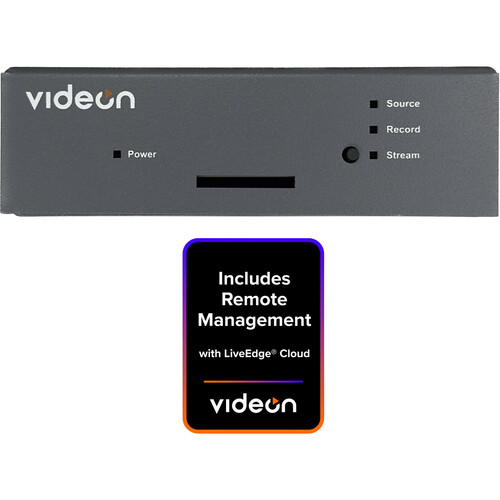

Videon EZ Encoder (Multiple Output + MBR)

Add to Wishlist
Key Features
  • Up to UHD 4K30/1080p60 Input/Streaming
  • Multiple Streams Using Multiple Profiles
  • RTMP/RTMPS/RTSP Streaming
  • Qualcomm-Powered Processing
  • Ultralow Latency Down to 500 ms
  • 1 x 3G-SDI, 1 x HDMI Input
  • H.265/HEVC Base, Main, High Codecs
  • MPEG-4 AAC-LC Audio up to 48 kHz
  • Record to SD Card or USB 3.0 Drive
  • Web Interface, Third-Party API

AED11,599.00

Add to Wishlist

Transmit simultaneous streams with multiple profiles and up to UHD 4K30 H.265/HEVC video using the EZ Encoder from Videon. This single-channel input/multiple streaming output unit has one HDMI and one 3G-SDI input supporting a maximum input resolution of 4K30/1080p60. Streaming outputs include up to three RTMP/RTMPS, two Unicast, multicast, and SRT options using multiple profiles.

This compact encoder features ultralow latency with HLS/DASH/CMAF formatting, Qualcomm processing, a 3.5mm audio input, and supports embedded HDMI and SDI audio. It can record the stream to an SD card via its built-in card slot or to an external USB drive using its USB 3.0 port while it streams to the network via its RJ45 10/100/1000 Ethernet port.

Streaming Encoder
  • Core processing, partner apps, and custom functions are run aboard the device, enabling a simplified workflow with connection and control from anywhere.
  • Cloud Control is available with a subscription to vCare Premium Support.
Simultaneous Streaming/Multiple Profiles
Transmits up to three simultaneous RTMP/RTMPS streams, up to two Unicast streams, with multicasting, HLS, MPEG-DASH, CMAF, and SRT streaming options using multiple profiles.
Reduced Latency
Reduced end-to-end latency down to 500 ms to 2 seconds provides truly live coverage.
Cost Efficient
Streaming with powerful Qualcomm processing reduces the need for expensive cloud processing, increasing your cost efficiency.
Versatile Encoding
Input and encode H.265/HEVC and H.264 video at rates up to UHD 4K30 and 1080p60 with maximum bit rates up to 30 Mb/s.
SKU: ECEZ-BASE-XMBR Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (1.4a)
1x BNC (3G-SDI)
Audio Inputs
1x 1/8″ / 3.5 mm TRS Analog
Video Outputs
1x RJ45 (RTMP/RTSP)
1x USB-A (USB Video)
Audio Outputs
No
Expansion Slots
No
Latency
500 to 2000 ms
Format Support
Input Video Format
HDMI / SDI
UHD 4K at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
576p at 50/59.94/60 fps
576i / 625 lines at 50/59.94/60 fps
Input Audio Format
Analog
Output Video Format
RJ45 / USB-A
UHD 4K 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
720p 50/59.94/60 fps
576p 50 fps
720 x 540
640 x 360
Embedded Audio
HDMI/SDI: 8-Channel
Standards
Video Standard Compliance
SMPTE 344M
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Encoding
H.264, H.265: 852 x 480 to 3840 x 2160 (500 to 30,000 Kb/s)
Audio IP Encoding
AAC-LC, MPEG-4: 48 kHz (64.00 to 512.00 Kb/s)
Hardware
Media Card Reader
1x SDXC
Wireless
No
Power
Power I/O
1x Barrel (12 VDC ) Input
PoE Support
PoE 802.3af
Power Consumption
8 W
General
Dimensions
5 x 4.23 x 1.5″ / 12.7 x 10.74 x 3.8 cm
Packaging Info
Package Weight
2.135 lb
Box Dimensions (LxWxH)
9.4 x 8.7 x 3.9″
