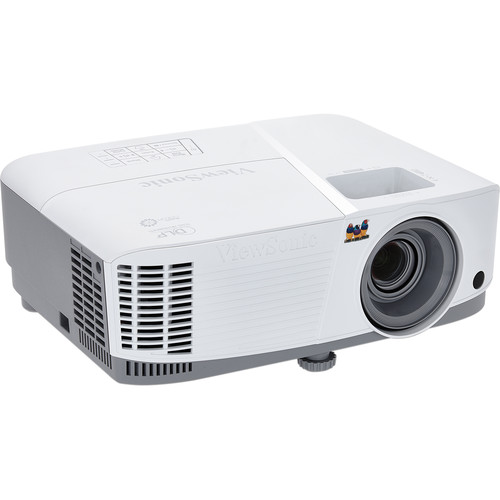

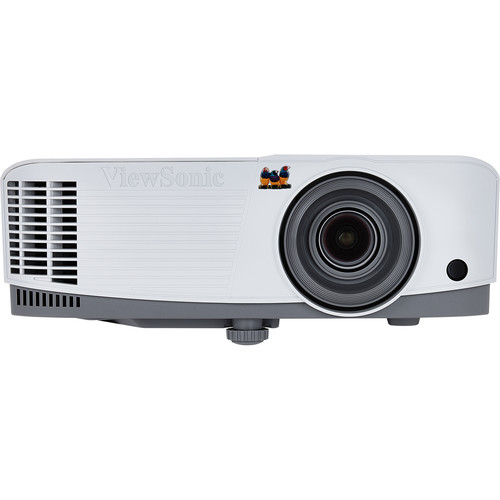

ViewSonic PA503X 3600-Lumen XGA DLP Projector


Key Features
  • Brightness of 3600 Lumens
  • XGA (1024 x 768) Native Resolution
  • 1.96 to 2.15:1 Throw Ratio
  • HDMI, Composite Video, 2x VGA Inputs
  • VGA Output for Loop-Through
  • Analog Audio Input and Output
  • 2-Watt Speaker
  • 3D-Capable
  • IR Remote Included

AED1,899.00

Enjoy bright images in many environments with the ViewSonic PA503X 3600-Lumen XGA DLP Projector. Its 3600 lumens of brightness can overcome ambient light in many situations, making it well suited for presentation areas such as boardrooms and classrooms. The 1024 x 768 XGA native resolution is suitable for displaying many file and document types, and it will accept video signals up to WUXGA (1920 x 1200) for higher resolution sources. The projector features a 1.96 to 2.15:1 throw ratio, which will allow you to place it near the back of the room in many installations.

The PA503X has one HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes. It also has two VGA inputs for analog sources, and its VGA output will allow you to daisy-chain multiple projectors or displays so they can all display the same source. Analog audio input and output and an onboard 2W speaker will ensure that audio accompanies your video. The projector includes a VGA cable and an IR remote control.

SuperColor for Enhanced Color Accuracy
ViewSonic’s SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
3D Blu-ray Ready HDMI Input
This projector is suitable for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Quick Power Off
With the Quick Power Off feature enabled, the projector can be powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.
Additional Features
  • Energy efficient SuperEco mode
  • Designed for reduced input latency
SKU: PA503X Category: Tag:
Key Specs
Display System
DLP
Native Resolution
1024 x 768
Maximum Brightness
3600 Lumens
Throw Ratio
1.96 to 2.15:1
Projection Size
30 to 300″ / 76.20 to 762.00Ā cm
HDR Support
No,
Inputs/Outputs
1x HDMI Audio, Video Input
2x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8″ / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x Mini-USB Data Input
1x DE-9/DB-9 (RS-232) Control Input
Image Display
Display System
DLP
Native Resolution
1024 x 768
Supported Resolutions
1920 x 1200
Maximum Brightness
3600 Lumens
Aspect Ratio
Native: 4:3
Dynamic Contrast Ratio
22,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz
Lens
Includes Lens
Yes
Focus
Manual
Optical Zoom
Manual: 1.1x
Throw Distance
3.9 – 43′ / 1.189 – 13.106Ā m
Throw Ratio
1.96 to 2.15:1
Projection Size
30 to 300″ / 76.20 to 762.00Ā cm
Features
Keystone Correction
Vertical: ± 40°
HDR Support
No,
Built-In Speaker
Yes
Speaker Power
2 W
Input/Output Connectors
Inputs/Outputs
1x HDMI Audio, Video Input
2x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8″ / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x Mini-USB Data Input
1x DE-9/DB-9 (RS-232) Control Input
HDCP Support
Not Specified by Manufacturer
Hardware
Bluetooth
No
General
Lamp Power
190 W
Expected Lamp Life
Medium Brightness: 4500 Hours
Low Brightness: 15,000 Hours
Security
Cable Lock Slot
Input Power
120 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 260 W
Standby Mode (Lamp Off): < 0.5 W
Dimensions (W x H x D)
11.6 x 4.3 x 8.6″ / 294.0 x 110.0 x 218.0Ā mm
Weight
4.89Ā lb / 2.22Ā kg
Packaging Info
Package Weight
7.1 lb
Box Dimensions (LxWxH)
14.3 x 12 x 7.25″
