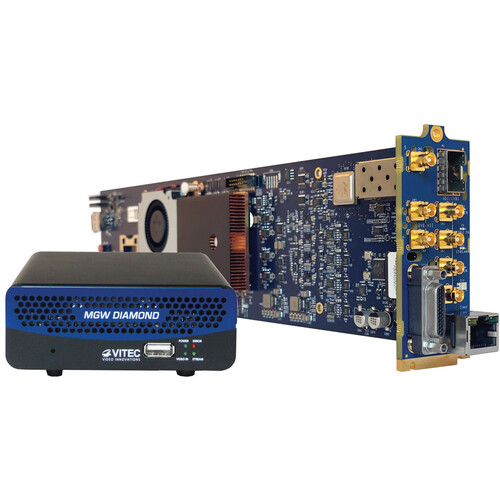

VITEC MGW Diamond openGear 1-Channel 4K HEVC/H.264 Encoder (Main & Rear I/O Modules)

Add to Wishlist
Key Features
  • UHD 4K HEVC openGear Video Encoder Card
  • 1 x 12G-SDI & 4 x 3G-SDI/CVBS Inputs
  • For IPTV/Web Distribution Applications
  • Supports 1 x UHD 4K Live Stream Output

AED49,099.00

Add to Wishlist

Add UHD 4K video encoding to your OGX openGear frame with this MGW Diamond openGear 1-Channel 4K HEVC/H.264 Encoder from VITEC. The card installs into a standard 2 RU openGear frame and provides one 12G-SDI video input and four 3G-SDI video inputs for IP streaming distribution out the Gigabit RJ45 Ethernet port. The card can input up to DCI 4K60 video, and it can output one stream of up to UHD 4K60 video.

Other features include simultaneous HEVC/H.265 and AVC/H.264 encoding of two separate channels, up to 32 channels of audio output, real-time AES-128/256 encryption, and support for KLV / STANAG metadata and time stamping.

Key Features
openGear 4K HEVC video encoder card designed for IPTV distribution or Direct-to-Web applications
Low-latency streaming from four SDI/Composite sources simultaneously
Support for Ultra-High Definition (4K) and High-Definition Range (HDR)
Up to eight output streams
Next-generation HEVC (H.265) compression support to reduce network bandwidth utilization by up to 50% compared to H.264
Stream protection for reliable video/audio and metadata transmission (Zixi, SRT, and Pro-MPEG)
KLV / STANAG metadata ingest from SDI, IP plus multiplexing, JITC Compliant
Compact, low-power hardware design optimized for field use (14W) or dense openGear encoding solution
Applications
Multi-site and multi-channel IP video contribution
IP video dissemination from multiple video sources (analog/digital) for Situation Awareness (SA) within ground vehicles, ships, or aircraft
Streaming Situational Awareness and FMV content across LANs and WANs with KLV / STANAG metadata
Streaming Intelligence, Surveillance and Reconnaissance (ISR) video feeds from ground and airborne vehicles over RF or satellite link
Streaming video to desktop/laptop, TV, and mobile devices over bandwidth-constrained pipes
SKU: 18281 Category: Tag:
Inputs / Outputs
System Connection
Proprietary
Video Inputs
1x BNC (12G-SDI) Female
4x BNC (3G-SDI) Female
2x BNC (DVB-ASI) Female
Audio Inputs
1x DB-25 Stereo Analog Female
Video Outputs
1x RJ45 Female
Other I/O
1x RJ45 LAN Input/Output
Simultaneous Multi-Input Support
Yes: 4 Simultaneous Inputs
Format Support
Input Video Format
SDI
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
720p at 25/29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94/60 fps
Input Audio Format
Analog: 48 kHz / 16-Bit
Output Video Format
RJ45
DCI 4K up to 60 fps
Embedded Audio
HDMI
LAN (RJ45): 32-Channel
Standards
Video Standard Compliance
SMPTE 259M/274M/292M/296M/424M/425M-A/ST-2082-1
HDR Support
,
Hardware
Power Consumption
Device: 12 VDC (14 W)
Environmental
Operating Temperature
12 to 87°F / -20 to 55°C
Operating Humidity
5 to 95%
General
Certifications
TAA
