Vixen Optics SL-40N Stereo Microscope 21231

Availability:

10 in stock


2,799.00 د.إ

10 in stock

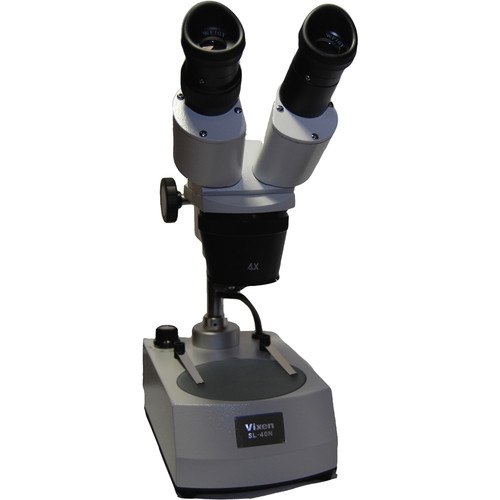

Vixen OpticsĀ SL-40N Stereo Microscope

Product Highlights

  • 2-3″ Interpupillary Adjustment
  • 2x/4x Objectives
  • 10x Eyepieces
  • 20x/40x Magnification
  • Coarse Focusing with Rack & Pinion
  • LED Illumination/Side and Bottom
  • 3.7″ Circular Base Plate with Two Clips
  • Metal Frame



With 45° viewing, theĀ SL-40N Stereo MicroscopeĀ fromĀ Vixen OpticsĀ provides a useful tool for your lab or home. While the stereo configuration provide a good sense of dimension and a 3-d viewing experience, the total magnification of 20x and 40x is ideal for studying minerals, insects, plants, circuit boards, and collectibles like coins and stamps. For adequate detail visibility, the scope has side and bottom LED illumination. With a working distance of 1.8″ you will have enough room to work with a variety of samples. You can easily secure your slides with samples using two metal clips attached to the 3.7″ round base plate. The coarse coaxial focusing offers two large knobs and rack and pinion mechanism. To illuminate samples and specimens, this microscope offers a bottom and side LED illumination. For accommodating individual differences, the eyepieces offer interpupillary adjustment of 2-3″ and are outfitted with comfortable rubber eyecups. Also included is a hard aluminum case with a handle and locks for a secure storage and transportation. It is padded with foam inside to protect the microscope while you are on the road.

Optical System and Viewing
  • Stereo viewing provides 3-d viewing
  • 2x and 4x objectives
  • 10x eyepieces
  • 20x and 40x magnification
  • 1.8″ working distance
  • 1.7″ travel
Focusing and Illumination
  • Coaxial coarse focusing
  • Rack and pinion system
  • Side and bottom LED illumination
Use and Handling
  • 51-75mm interpupillary adjustment
  • Diopter ring
Construction Details
  • Metal frame
  • 3.7″ round base plate with two metal clips
  • Rubberized eyecups

SKU: 21231 Category: Tags: , ,

Vixen Optics SL-40N Specs

Microscope Type Compound
Eyepiece 10x
Nosepiece Fixed
Objective(s) 2x, 4x
Head 45°
Focuser Coarse, rack and pinion
Working Distance 1.8″ (46 mm)
Diopter Adjustment Yes
Interpupillary Adjustment 2-3″ (51-75 mm)
Light Source Side and bottom LED illumination
Specimen Stage 3.7″ (95 mm), round base plate
Overall Dimensions 13 x 7.6 x 4.6″ (33 x 19.2 x 11.6 cm)
Weight 5.3 lb (2.4 kg)
