VocoPro VHF-3005 Dual Channel VHF Wireless Microphone System


AED599.00

Key Features
  • Frequency Channel 3 / VHF A, VHF B
  • Dual Microphone Operation
  • Range: 164′ (50.29m) Radius
  • Separate Level Controls

VocoPro VHF-3005Ā Overview

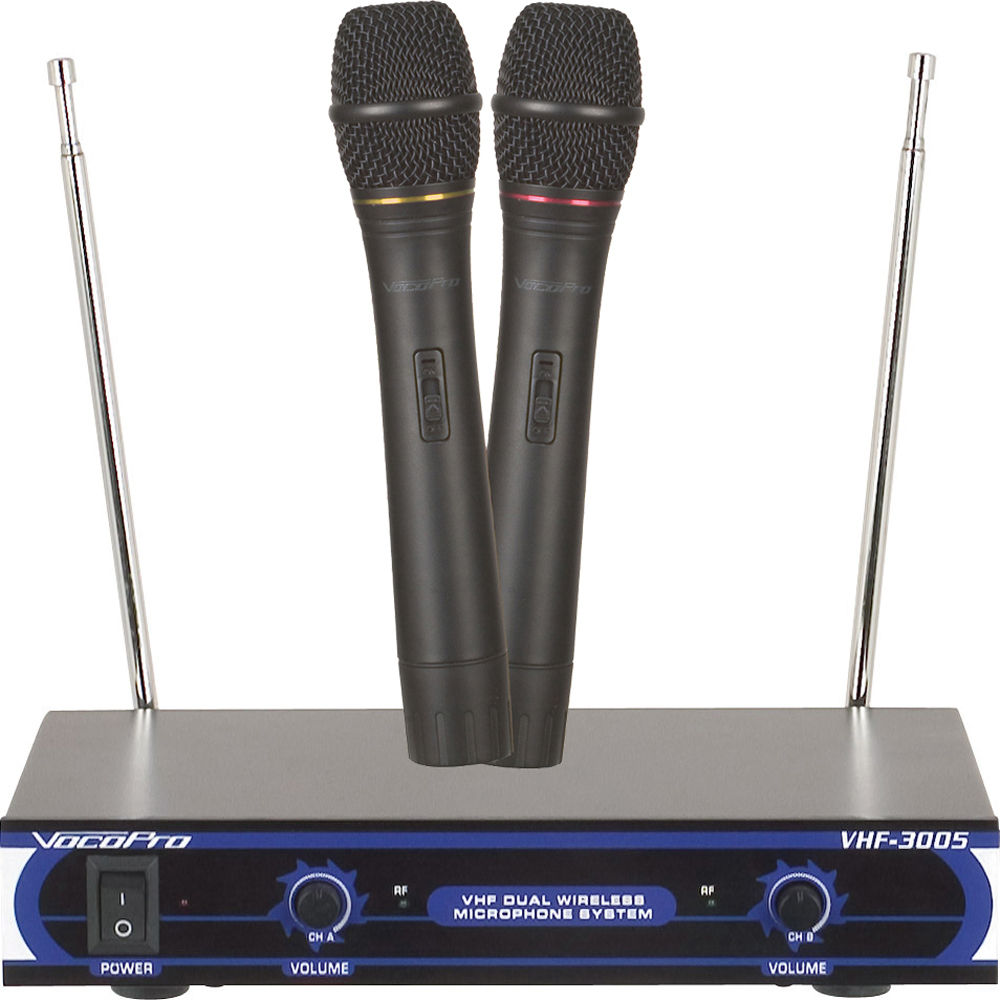

TheĀ VocoPro VHF-3005 Dual Channel VHF Wireless Microphone SystemĀ is an affordable yet reliable VHF wireless microphone system that supports simultaneous operation of the 2 included microphones, making it suitable for karaoke, DJs, small bands, small venues and much more. The system includes a VHF receiver and 2 handheld microphone transmitters that operate on 9V battery power for up to 8 hours. The receiver features individual level dials for each transmitter, separate output connections via 1/4″ phone, RF and level LED indicators. The operating range is rated at up to 164′ (50.29m).

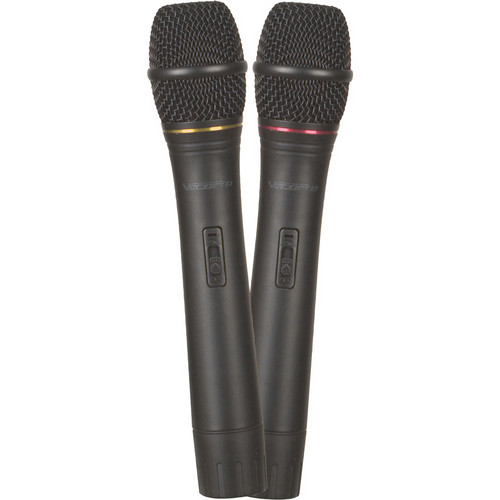

2 wireless handheld mics included

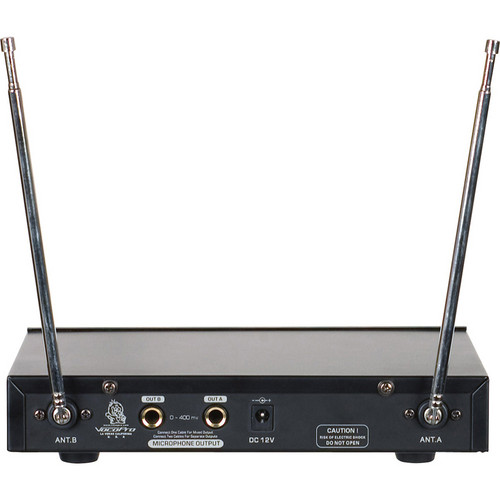

2 mic outputs
Individual Volume controls for precise vocal balancing
Antennas provide clear RF reception

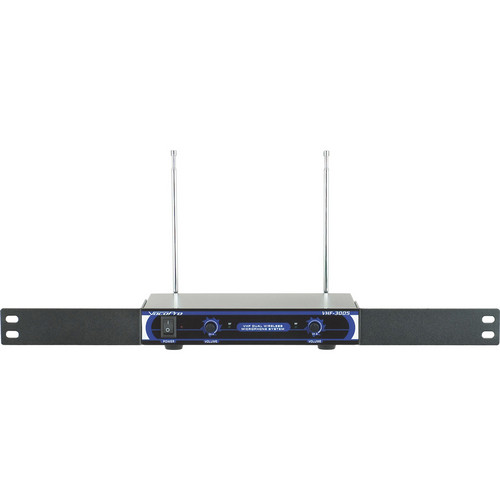

Rugged 1 RU metal receiver chassis
VHF Band (180 MHz-250MHz) quartz lock for drift-free operation
Rack-mountable with included mounting brackets

VocoPro VHF-3005Ā Specs

System
Carrier Frequency VHF 220 ~ 270MHz
Frequency Stabilization: < +/- 30PPM
Dynamic Range > 90dB
THD < 0.5 %
Frequency Response 40Hz ~ 18kHz
Audio Output Level 0 ~ +/- 400mV (mixed output), 0 ~ 200mV (separate output)
Temperature Range 50 ~ 122° F (10 ~ 50° C)
Operating Range 164′ (50.29m) Radius
Receiver
Signal to Noise Ratio > 90dB
Spurious Rejection > 80dB
Border upon channel rejection: > 80dB
Sensitivity > 12dBu (S/N=20dB)
Power Supply AC 110V / 50Hz
Consumption: 1W
Transmitter
Microphone Power 13dBm
Modulation FM, F3F
Deviation Maximum Deviation: +/- 30kHz
Spurious Emission > 60dB (with carrier)
Nominal Battery Voltage 9V Battery
Continual use: 8 hours
Noise Noise control: Auto-mute circuitry
Packaging Info
Package Weight 5.1 lb
Box Dimensions (LxWxH) 16 x 12 x 3″
