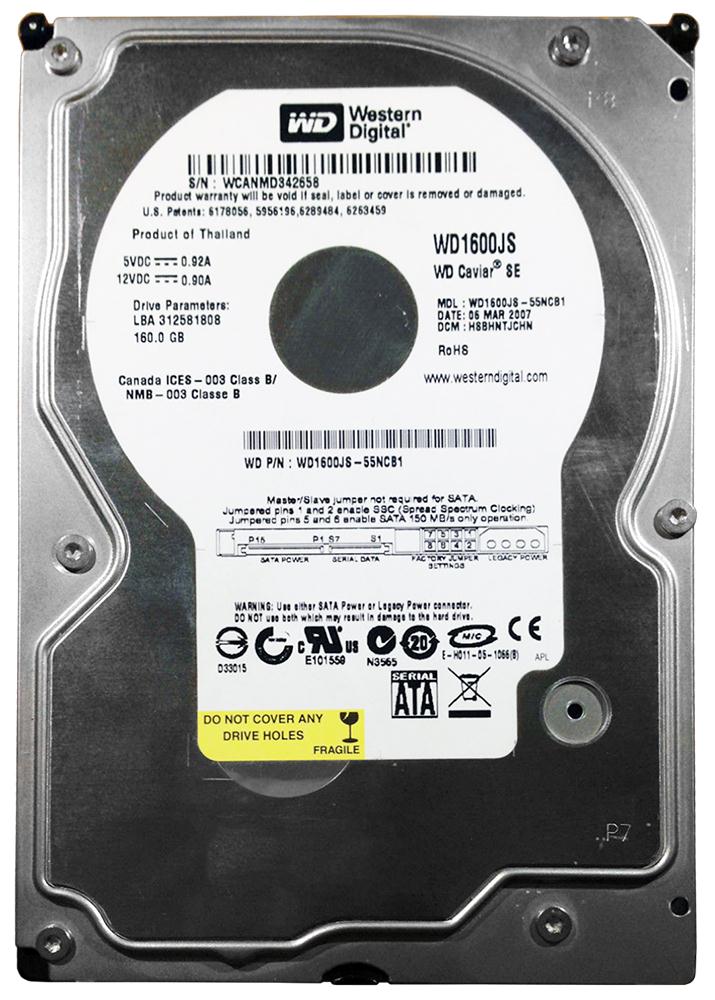

Western Digital Caviar SE 160GB 7.2K SATA Hard Drive WD1600JS – Refurbished
| Weight | 0.60 kg |
|---|
7200 RPM “50%”>7,200 RPM (nominal)
| Performance Specifications | |
| Rotational Speed | |
| Buffer Size | 8 MB |
| Average Latency | 4.20 ms (nominal) |
| Contact Start/Stop Cycles | 50,000 minimum |
| Seek Times | |
| Read Seek Time | 8.9 ms |
| Write Seek Time | 10.9 ms (average) |
| Track-To-Track Seek Time | 2.0 ms (average) |
| Full Stroke Seek | 21.0 ms (average) |
| Transfer Rates | |
| Buffer To Host (Serial ATA) | 300 MB/s (Max) |
| Buffer To Disk | 748 Mbits/s (Max) |
| Physical Specifications | |
| Formatted Capacity | 160,041 MB |
| Capacity | 160 GB |
| Interface | SATA 300 MB/s |
| User Sectors Per Drive | 312,581,808 |
| Physical Dimensions | |
| English | |
| Height | 1.028 Inches (Max) |
| Length | 5.787 Inches (Max) |
| Width | 4.00 Inches (+/- 0.010 inch) |
| Weight | 1.32 Pounds |
| Metric | |
| Height | 26.1 mm (Max) |
| Length | 147 mm (Max) |
| Width | 101.6 mm |
| Weight | 0.60 kg |
| Environmental Specifications | |
| Operating Shock (Read) | 65G, 2 ms |
| Non-operating Shock | 300G, 2 ms |
| Acoustics | |
| Idle Mode | 26 dBA (average) |
| Seek Mode 0 | 31 dBA (average) |
| Seek Mode 3 | 27 dBA (average) |
| Temperature (English) | |
| Operating | 41Ā° F to 131Ā° F |
| Non-operating | -40Ā° F to 149Ā° F |
| Temperature (Metric) | |
| Operating | 5Ā° C to 55Ā° C |
| Non-operating | -40Ā° C to 65Ā° C |
| Humidity | |
| Operating | 5-95% RH non-condensing |
| Non-operating | 5-95% RH non-condensing |
| Altitude (English) | |
| Operating | -1,000 feet to 10,000 feet |
| Non-operating | -1,000 feet to 40,000 feet |
| Altitude (Metric) | |
| Operating | -305M to 3,050M |
| Non-operating | -305M to 12,200M |
| Operating Vibration | |
| Linear | 20-300 Hz, 3.0G (0 to peak) |
| Random | 10-300 Hz, 0.008 gĀ² / Hz |
| Non-operating Vibration | |
| Low Frequency | 5-20 Hz, 0.195 inches (double amplitude) |
| High Frequency | 20-500 Hz, 4.0G (0 to peak) |
| Electrical Specifications | |
| 12 VDC Current Requirements | |
| Read/Write | 450 mA |
| Idle | 430 mA |
| Standby | 20 mA |
| Sleep | 20 mA |
| 5 VDC Current Requirements | |
| Read/Write | 800 mA |
| Idle | 730 mA |
| Standby | 270 mA |
| Sleep | 250 mA |
| Power Dissipation | |
| Read/Write | 9.50 Watts |
| Idle | 8.75 Watts |
| Standby | 1.60 Watts |
| Sleep | 1.50 Watts |
