Whirlwind MIX-16 – 16 Channel Line Level Rackmount Mixer

Add to Wishlist

3,799.00 د.إ

Add to Wishlist

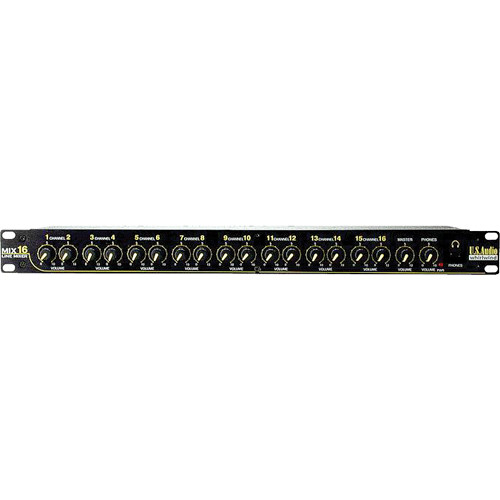

The Whirlwind Mix-16 is a simple and efficient 16-input line mixer in a compact, 19-inch rackmount frame. The mixer features 16 balanced 1/4″ phone inputs and volume controls for each input are located on the front panel. Additional features include balanced / unbalanced switched Master output with level control and headphone monitoring output. The Mix-16 is an ideal solution for touring musicians, broadcast production, monitoring, and wherever large numbers of balanced inputs are required in a minimum amount of space.

16 Input Channels
The Mix-16 features 16 balanced 1/4″ phone input channels for line level devices. Level controls for each input are provided on the front.
Balanced / Unbalanced Master Output
The stereo Master output is capable of balanced or unbalanced output with the use of TS or TRS 1/4″ cable.
Headphone Output
The headphone output is located on the front and separate level control is also featured.
Rackmount Frame
The Mix-16 features a single space, 19-inch rackmount frame.
SKU: MIX-16 Category: Tag:

Total # Of Inputs
16
Mic/Line Inputs
Line Only
Stereo Line Inputs
No
In-Line Inputs/Returns
No
AUX Sends
No
AUX Returns
No
Inserts
No
BUS (Group) Outputs
Stereo Output Only
2 Trk Master I/O
No
ALT I/O
No
Monitor Outputs
Headphone Output
EQ Section
No
Solo/Mute
No
Channel Level Control
Rotary
Trim/Gain Control
No
Phantom Power
Not Applicable
Metering
No
Frequency Response
20Hz to 20kHz
Dynamic Range
Not Specified By manufacturer
Signal-to-Noise Ratio
Not Specified By manufacturer
Total Harmonic Distortion (THD)
0.015%
Power Supply
0.15 Amps Max AC @ 120VAC
Dimensions
19 x 1.75 x 6″ (482.6 x 44.45 x 152.4)
Weight
7.5 lbs (3.40 kg)
Packaging Info
Package Weight
7.5 lb
Box Dimensions (LxWxH)
21.4 x 9.4 x 4.7″
