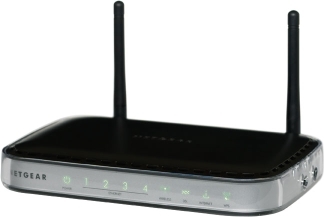

Wireless-N Router with Built-in DSL Modem

• Fully compatible with Verizon, AT&T, Qwest®

         Features

Specifications

System Requirements

– ADSL broadband Internet service

– 2.4 GHz 802.11n draft specification

adapter or 2.4 GHz 802.11b/g

wireless adapter. Alternatively, an

Ethernet adapter and cable for

each computer

– Microsoft®

Windows®

Vista, XP, 2000,

Me, Mac®

OS, or other operating

systems running a TCP/IP network

– Internet Explorer®

5.0 or higher

– We recommend using this product with

the RangeMax Wireless-N Adapters

(WN511B, WN311B, WN111, WN711,

WNDA3100)

Standards

– IEEE 802.11n draft version, IEEE

802.11g, IEEE 802.11b, 2.4 GHz

– WAN (ADSL): ITU 992.1 (G.dmt) Annex

A, ITU 992.2 (G.lite), ITU 992.3 ADSL2

(G.dmt.bis), ITU 992.5 ADSL2+

Physical Specifications

– Dimensions: 177.5 x 130 x 31

(7 x 5.1 x 1.22)

– Weight: .265 kg (.584 lb)

Ease of Use

– SmartWizard simplifies setup by automatically detecting and configuring your

router for virtually all ISP connections

Security

– Double firewall:

– Network Address Translation

(NAT) to hide PCs and files from

outside users

– Stateful packet inspection (SPI)

firewall to deny outside requests for

personal information

– Denial-of-service (DoS) attack

prevention

– Intrusion detection and prevention (IDS)

– Wi-Fi Protected Access™ (WPA2- PSK,

WPA- PSK)

– Wired Equivalent Privacy (WEP) 64-bit,

128-bit encryption

– Wireless Access Control to identify

authorized wireless network devices

– MAC address authentication

– Exposed host (DMZ) for secure gaming

– Wi-Fi Protected Setup™ (WPS), push

button and PIN

Privacy and Parental Control

– Time-based usage controls

– Activity logging

– Remote management

– URL content filtering

Warranty

– NETGEAR 1-year Warranty

Package Contents

– Wireless-N Router with Built-in DSL

Modem (DGN2000)

– Ethernet cable

– Setup CD

– 12V, 1.0A power adapter, localized to

country of sale

– Phone cable

– ADSL phone line filter

– Warranty/support information card

NETGEAR Related Products

– Notebooks:

– RangeMax Wireless-N

Notebook Adapter (WN511B)

– RangeMax Wireless-N USB 2.0

Adapter (WN111)

– RangeMax Dual Band Wireless-N

USB Adapter (WNDA3100)

– RangeMax Wireless-N ExpressCard

Adapter (WN711)

– Desktops:

– RangeMax Wireless-N PCI

Adapter (WN311B)

– RangeMax Wireless-N

USB 2.0 Adapter (WN111)

– Powerline: Powerline AV Networking

Kit (XAVB101)

– Multimedia: Digital Entertainer

(EVA8000)

– Storage: ReadyNAS Duo (RND2150)
