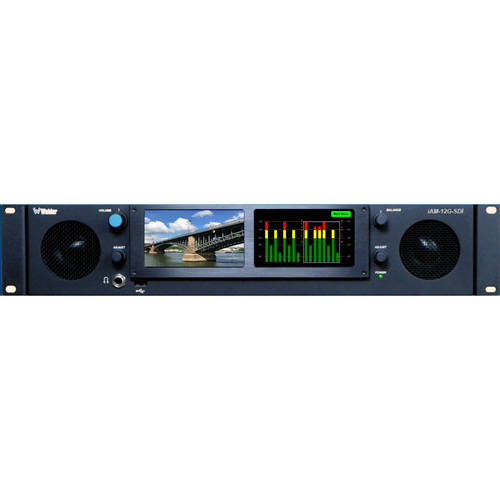

Wohler Multichannel Audio and 12G/4K Video Monitoring & Metering of IP and Baseband Signals (2 RU)

Add to Wishlist
Key Features
  • Supports up to 16-Channel Monitoring
  • 4 x SFP Cages
  • 2 x 12G/4K SDI Inputs and 1 x SDI Output
  • USB Port
  • Touchscreen Controls
  • Front Speakers and Subwoofers

د.إ47,499.00

Add to Wishlist

Monitor audio and video from multiple sources with the 2 RU Multichannel Audio and 12G/4K Video Monitoring & Metering of IP and Baseband Signals from Wohler. The unit features four SFP cages that allow for additional monitoring options including 2110 and 2022-6; additional SDI inputs that can be configured in a variety of combinations. It also features two SDI inputs, an SDI output, and two D-Sub 24-pin inputs. The front panel features buttons, touchscreen controls, and a USB port for software updates. Front speakers and subwoofers provide powerful sound output and audio reproduction.

Multiple units on the same network can be updated, monitored, and controlled via a browser-based user interface that supports fast configuration with authentication that protects configurations from unauthorized changes
12G (4K) SDI inputs also monitor 3G, HD, and SD-SDI signals
SFP cages allow a range of optional connectors and signal processing options
Optional Dolby Atmos that decodes Dolby D, D+, and E streams for playback, metering, and metadata
Touchscreen front panel for easy, intuitive control
Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources
Store and retrieve presets via USB or remote software control
APIs for remote control
Available APIs: get available presets, get preset information, get active preset, set mute/unmute clusters, set solo cluster, set solo channel, and source select
Presets are programmable/nameable and can be copied from unit to unit via USB or GUI software/Ethernet
Via USB or GUI web interface
Upgrade multiple units via web interface
SKU: IAM-12G-SDI Category: Tag:
Audio Channels
16
Display Type
LCD Capacitive Touchscreen
Display Size
4.3″ / 109 mm
Display Resolution
480 x 272
Connectors
2 x BNC, 12G SDI Video Input
1 x BNC, 12G SDI Video Output
4 x SFP, Fiber Optic Port
1 x SPF, Fiber Optic Output
1 x 15-Pin Sub-D, AES Audio Input
1 x 3-Pin XLR, Left Balanced Analog Output
1 x 3-Pin XLR, Right Balanced Analog Output
2 x 25-Pin D-Sub, 8-Channel Analog Audio Input
1 x RJ45, Software Management Port
1 x 1/4″ Jack, Headphones Output (Front)
1 x USB Type-A, Firmware Upgrade Port (Front)
Noise
> -75 dB
Peak Acoustic Output
104 dB SPL at 2′ / 61 cm
Power Output per Channel
Continuous: 15 W
Peak: 30 W
Power Consumption
40 W (Typical)
AC Power
100 to 240 VAC ±10% at 50/60 Hz
DC Power Input
18 VDC
Certifications
CD and UL
Rack Mountable
2 RU
Dimensions
19 x 3.5 x 9.5″ / 483 x 89 x 242 mm
Weight
11 lb / 5 kg
Packaging Info
Package Weight
14.945 lb
Box Dimensions (LxWxH)
23.7 x 18.1 x 10.3″
