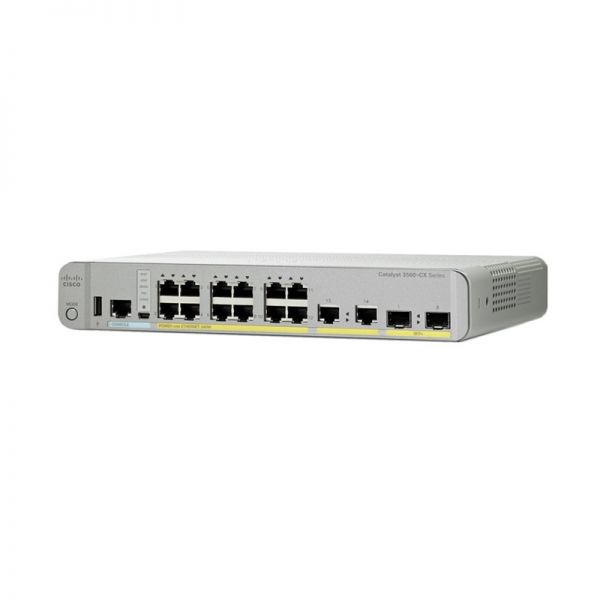

WS-C3560CX-12PD-S Catalyst Compact switch

WS-C3560CX-12PD-S Specification

Ethernet Ports

12 x 10/100/1000 Gigabit Ethernet

PoE
Output Ports

12 PoE+

Available
PoE Power

240W

Uplinks

2 x 1G copper plus

2 x 10G SFP+

Default Software

IP Base (IP Services with RTU License)

Powering Option

Internal power supply

Available PoE Power (W)

240W

Can Switch Be Powered with Uplinks?

No

Forwarding Bandwidth

34 Gbps

Switching Bandwidth (full-duplex capacity)

68 Gbps

Flash memory

128 MB

Memory DRAM

512 MB

Max VLANs

1023

VLAN IDs

4000

Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9198 bytes

Forwarding rate 64 Byte Packet

50.6 mpps

Dimensions
(H x W x D)

1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)

Weight

5.1 lb (2.31 Kg)

Operating* temperature up to 5000 ft (1524 m)

-5°C to +45°C (+23°F to +113°F)

Operating* temperature up to 10,000 ft (3048 m)

-5°C to +45°C (+23°F to +113°F)

Storage temperature up to 15,000 ft (4572 m)

-25°C to +70°C (-13°F to +158°F)

Operating altitude

Up to 3048 m (Up to 10,000 ft)

Storage altitude

Up to 4000 m (Up to 15,000 ft)

Operating relative humidity

5% to 95% noncondensing

Storage relative humidity

5% to 95% noncondensing

MTBF

528,480

Management

●  BRIDGE-MIB

●  CISCO-CABLE-DIAG-MIB

●  CISCO-CDP-MIB

●  CISCO-CLUSTER-MIB

●  CISCO-CONFIG-COPY-MIB

●  CISCO-CONFIG-MAN-MIB

●  CISCO-DHCP-SNOOPING-MIB

●  CISCO-ENTITY-VENDORTYPE-OID-MIB

●  CISCO-ENVMON-MIB

●  CISCO-ERR-DISABLE-MIB

●  CISCO-FLASH-MIB

●  CISCO-FTP-CLIENT-MIB

●  CISCO-IGMP-FILTER-MIB

●  CISCO-IMAGE-MIB

●  CISCO-IP-STAT-MIB

●  CISCO-LAG-MIB

●  CISCO-MAC-NOTIFICATION-MIB

●  CISCO-MEMORY-POOL-MIB

●  CISCO-PAGP-MIB

●  CISCO-PING-MIB

●  CISCO-POE-EXTENSIONS-MIB

●  CISCO-PORT-QOS-MIB

●  CISCO-PORT-SECURITY-MIB

●  CISCO-PORT-STORM-CONTROL-MIB

●  CISCO-PRODUCTS-MIB

●  CISCO-PROCESS-MIB

●  CISCO-RTTMON-MIB

●  CISCO-SMI-MIB

●  CISCO-STP-EXTENSIONS-MIB

●  CISCO-SYSLOG-MIB

●  CISCO-TC-MIB

●  CISCO-TCP-MIB

●  CISCO-UDLDP-MIB

●  CISCO-VLAN-IFTABLE

●  RELATIONSHIP-MIB

●  CISCO-VLAN-MEMBERSHIP-MIB

●  CISCO-VTP-MIB

●  ENTITY-MIB

●  ETHERLIKE-MIB

●  IEEE8021-PAE-MIB

●  IEEE8023-LAG-MIB

●  IF-MIB

●  INET-ADDRESS-MIB

●  OLD-CISCO-CHASSIS-MIB

●  OLD-CISCO-FLASH-MIB

●  OLD-CISCO-INTERFACES-MIB

●  OLD-CISCO-IP-MIB

●  OLD-CISCO-SYS-MIB

●  OLD-CISCO-TCP-MIB

●  OLD-CISCO-TS-MIB

●  RFC1213-MIB

●  RMON-MIB

●  RMON2-MIB

●  SNMP-FRAMEWORK-MIB

●  SNMP-MPD-MIB

●  SNMP-NOTIFICATION-MIB

●  SNMP-TARGET-MIB

●  SNMPv2-MIB

●  TCP-MIB

●  UDP-MIB

●  ePM MIB

Standards

●  IEEE 802.1D Spanning Tree Protocol

●  IEEE 802.1p CoS Prioritization

●  IEEE 802.1Q VLAN

●  IEEE 802.1s

●  IEEE 802.1w

●  IEEE 802.1x

●  IEEE 802.1AB (LLDP)

●  IEEE 802.3ad

●  IEEE 802.3af

●  IEEE 802.3ah
(100BASE-X single/multimode fiber only)

●  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

●  IEEE 802.3 10BASE-T specification

●  IEEE 802.3u 100BASE-TX specification

●  IEEE 802.3ab 1000BASE-T specification

●  IEEE 802.3z 1000BASE-X specification

●  100BASE-BX (SFP)

●  100BASE-FX (SFP)

●  100BASE-LX (SFP)

●  1000BASE-BX (SFP)

●  1000BASE-SX (SFP)

●  1000BASE-LX/LH (SFP)

●  1000BASE-ZX (SFP)

●  1000BASE-CWDM SFP 1470 nm

●  1000BASE-CWDM SFP 1490 nm

●  1000BASE-CWDM SFP 1510 nm

●  1000BASE-CWDM SFP 1530 nm

●  1000BASE-CWDM SFP 1550 nm

●  1000BASE-CWDM SFP 1570 nm

●  1000BASE-CWDM SFP 1590 nm

●  1000BASE-CWDM SFP 1610 nm

●  RMON I and II standards

●  SNMPv1, SNMPv2c, and SNMPv3

RFC compliance

●  RFC 768: UDP

●  RFC 783: TFTP

●  RFC 791: IP

●  RFC 792: ICMP

●  RFC 793: TCP

●  RFC 826: ARP

●  RFC 854: Telnet

●  RFC 951: Bootstrap Protocol

●  RFC 1542: BOOTP Extensions

●  RFC 959: FTP

●  RFC 1058: RIP Routing

●  RFC 1112: IP Multicast and IGMP

●  RFC 1157: SNMPv1

●  RFC 1166: IP Addresses

●  RFC 1253: OSPF Routing

●  RFC 1256: ICMP Router Discovery

●  RFC 1305: NTP

●  RFC 1492: TACACS+

●  RFC 1493: Bridge MIB

●  RFC 1542: Bootstrap Protocol

●  RFC 1583: OSPFv2

●  RFC 1643: Ethernet Interface MIB

●  RFC 1723: RIPv2 Routing

●  RFC 1757: RMON

●  RFC 1812: IP Routing

●  RFC 1901: SNMPv2C

●  RFC 1902-1907: SNMPv2

●  RFC 1981: MTU Path Discovery IPv6

●  FRC 2068: HTTP

●  RFC 2080: RIP for IPv6

●  RFC 2131: DHCP

●  RFC 2138: RADIUS

●  RFC 2233: IF MIB

●  RFC 2236: IP Multicast

●  RFC 2328: OSPFv2

●  RFC 2273-2275: SNMPv3

●  RFC 2373: IPv6 Aggregatable Addrs

●  RFC 2453: RIPv2 Routing

●  RFC 2460: IPv6 protocol

●  RFC 2461: IPv6 Neighbor Discovery

●  RFC 2462: IPv6 Autoconfiguration

●  RFC 2463: ICMP IPv6

●  RFC 2474: DiffServ Precedence

●  RFC 2597: Assured Forwarding

●  RFC 2598: Expedited Forwarding

●  RFC 2571: SNMP Management

●  RFC 2740: OSPF for IPv6

●  RFC 3046: DHCP Relay Agent Information Option

●  RFC 3101, 1587: NSSAs

●  RFC 3376: IGMPv3

●  RFC 3580: 802.1x RADIUS

Safety standards

●  UL 60950-1

●  CAN/CSA 22.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  CE Marking

●  GB 4943

●  IEC 60825

Electromagnetic emissions certifications

●  FCC Part 15, CFR 47, Class A, North America

●  EN/IEC 61000-4-5

●  EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union

●  AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand

●  VCCI Class A, V-3/2007.04, Japan

●  KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea

●  ANATEL, Brazil

●  CCC, China

●  GOST, Russia

Environmental

Reduction of Hazardous Substances (ROHS) 6

Telco

Common Language Equipment Identifier (CLEI) code
