WS-C4507R-E Cisco 4500 Switch

Add to Wishlist

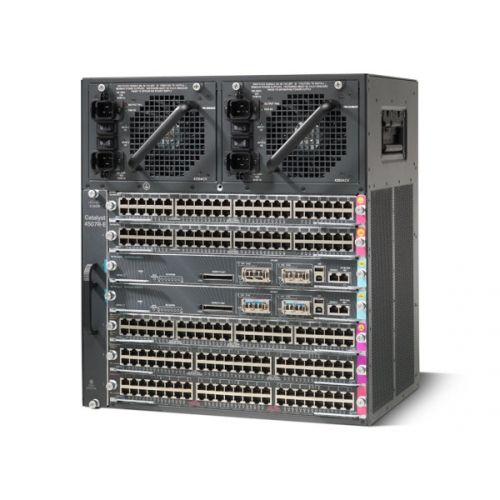

Model: WS-C4507R-E Cisco 4500 Switch
Detail:
Cat4500 E-Series 7-Slot Chassis, fan, no ps, Red Sup Capable

49,999.00 د.إ

Add to Wishlist

WS-C4507R-E (USED) Overview

The Cisco Catalyst 4500 Series offers non-blocking Layer2/3/4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice/video/data networks with high availability enable business resiliency for enterprise and metropolitan (metro) Ethernet customers deploying Internet-based business applications.

Category: Tag:
General Information
Manufacturer: Cisco
Product ID: WS-C4507R
Product Description: Catalyst 4500 Chassis (7-Slot),fan, no p/s, Red Sup Capable
Product Type: Ethernet Switch
I/O Expansions
Number of Total Expansion Slots: 7
Expansion Slot Type: Supervisor Engine
Management & Protocols
Manageable: Yes
Management:
  • Network topology discovery and display services
  • VLAN provisioning and logical display representation
  • Traffic monitoring and performance assessment
  • End-station tracking with search utilities
  • CiscoView graphical device management
  • Network topology integrity checking
  • Cisco Discovery Protocol
  • Cisco Virtual Trunking Protocol (VTP)
  • Simple Network Management Protocol (SNMP) agent Version 1 (RFCs 1155-1157)
  • SNMP Version 2c
  • Cisco Workgroup Management Information Base (MIB)
  • Ethernet MIB (RFC 1643)
  • Ethernet Repeater MIB (RFC 1516)
  • SNMP MIB II (RFC 1213)
  • Remote Monitoring (RMON) (RFC 1757)
  • Remote Monitoring II (RMON II) (RFC 2021)
  • Interface Table (RFC 1573)
  • Bridge MIB (RFC 1493)
  • Switched Port Analyzer (SPAN)
  • Enhanced Switched Port Analyzer (ESPAN)
  • Port snooping and connection steering
  • Standard Cisco IOS security capabilities: passwords and TACACS+
  • Telnet, Trivial File Transfer Protocol (TFTP), BOOTP for management access
Power Description
Power Source: Power Supply
Redundant Power Supply: Yes
Physical Characteristics
Height: 19.2″
Width: 17.3″
Depth: 12.5″
Weight (Approximate): 107.00 lb
Miscellaneous
Additional Information: Item Included:

  • Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)Supervisor Engines Supported:
  • Supervisor Engines II-Plus
  • Supervisor IV
  • Slots 1 and 2 are reserved for Supervisor Engines only. Slots 3 and higher are reserved for line cardsSupervisor Engine Redundancy:
  • Yes (Supervisor Engine IV only)
  • No Power SupplyPower supplies supported:
  • 1000-watt AC
  • 2800-watt ACV
  • 1300-watt ACV
  • 1400-watt DC
Certifications & Standards: Safety:

  • UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260EMC:
  • FCC Part 15 (CFR 47) Class A
  • ICES-003 Class A
  • EN55022 Class A
  • CISPR22 Class A
  • AS/NZS 3548 Class A
  • VCCI Class A
  • EN 55022EN 55024
  • EN 61000-6-1
  • EN 50082-1
  • EN 61000-3-2
  • EN 61000-3-3
  • ETS 300 386Industry EMC, Safety and Environmental Standards:
  • GR-63-Core NEBS Level 3
  • GR-1089-Core Level 3
  • ETS 300 019 Storage Class 1.1
  • ETS 300 019 Transportation Class 2.3 (Pending)
  • ETS 300 019 Stationary Use Class 3.1
  • ETS 300 386Telecom (E1):
  • CTR 12/13
  • CTR 4
  • ACA TS016Telecom (T1):
  • FCC Part 68
  • Canada CS-03
  • JATE Green Book Ethernet:
  • IEEE 802.3, 10BASE-TFast Ethernet:
  • IEEE 802.3u, 100BASE-TX
  • IEEE 802.3, 100BASE-FXGigabit Ethernet:
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3ab1000BASE-X (GBIC):
  • 1000BASE-SX
  • 1000BASE-LX/LH
  • 1000BASE-ZXVirtual LAN (VLAN) trunking/tagging:
  • IEEE 802.1QSpanning-Tree Protocol:
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1sSecurity:
  • IEEE 802.1
