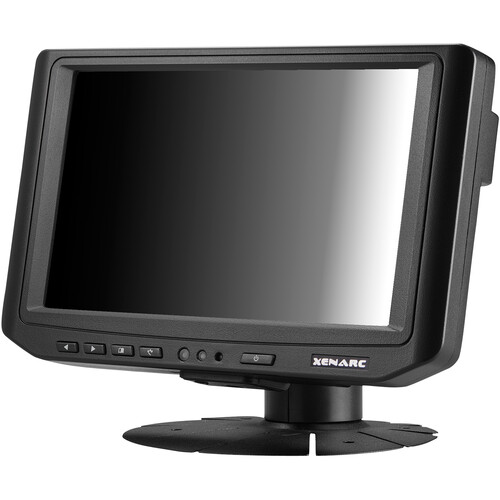

Xenarc 702YH 7″ Class 1024 x 600 Class Multi-Purpose LED Monitor

Add to Wishlist
Key Features
  • 1024 x 600 Native Resolution
  • 1000 nits Brightness
  • HDMI, VGA, Composite Video Inputs
  • Input Connectivity via Breakout Cable
  • Ambient Light Sensor for Auto-Adjustment
  • Mirror and Vertical Image Flip
  • AV2 Auto Switching for Backup Camera
  • IR Remote Control Included

AED1,399.00

Add to Wishlist

Add a display to nearly any project with the Xenarc 702YH 7″ Class 1024 x 600 Class Multi-Purpose LED Monitor. With its automotive use certification, it can be installed in vehicles for in-car computing, mobile production, and more. It features HDMI, VGA, and composite video connectivity via the included breakout cable. An IR remote control is also included as an added convenience.

Use Cases
  • Transportation: Marine, air, heavy vehicles, mining, weigh stations, fleet management, telematics, in-car computing, public transit, cargo
  • System Integration: Machinery controls, factory automation, environmental monitoring, home automation, military, smart home
  • Point of Sale: Hospitality, digital signage, self-service kiosks, outdoor kiosks and signage, casinos
  • Data Monitoring: Cloud, IoT, medical, logistics, inventory management, oil & gas/utilities, law enforcement, broadcast, veterinary, first-person view
  • Broadcast & Production: Broadcast stations, mobile production vehicles, field rugged deployment for your mobile workforce, studio video production
Features
  • 1000 nits sunlight readable design with long-life LED backlight
  • Automatic backlight adjustment through a built-in ambient light sensor
  • Anti-reflective and anti-fingerprint coating
  • Solid capacitors for improved durability
  • High-performance image and video signal processor
  • AISS – Advanced Image-Scaling and Shaping
  • Last input and power setting memory
  • Auto power-on upon signal detection
  • Mirror and vertical image flip
  • Function to disable front buttons and on-screen text
  • AV2 auto switching for backup camera
  • 360° copper monitor stand
  • 26-pin heavy-duty connector with connector locking
  • “E” Mark certified for automotive use
SKU: 702YH Category: Tag:
Key Specs
Display Size
7″
Native Resolution
1024 x 600
Maximum Brightness
1000 nits / cd/m2
Inputs
Rear:
1x Proprietary
Breakout Cable:
1x HDMI
1x DE-15/DB-15 (VGA)
1x RCA (Composite)
1x RCA (Analog Audio)
Outputs
No
USB I/O
1x USB-A (Unspecified Version)
Ethernet I/O
No
Built-In Speakers
Yes
Media Card Reader
No
Display
Display Size
7″
Panel Type
LCD
Aspect Ratio
15:9
Native Resolution
1024 x 600
Maximum Brightness
1000 nits / cd/m2
Contrast Ratio
700:1
Response Time
25 ms (GtG)
Viewing Angle (H x V)
150 x 145°
Video
TV Tuner
No
Connectivity
Inputs
Rear:
1x Proprietary
Breakout Cable:
1x HDMI
1x DE-15/DB-15 (VGA)
1x RCA (Composite)
1x RCA (Analog Audio)
Outputs
No
HDCP Support
Yes
USB I/O
1x USB-A (Unspecified Version)
Ethernet I/O
No
Ambient Light Sensor
Yes
Speaker
Built-In Speakers
Yes
Hardware
Media Card Reader
No
Environmental
Operating Temperature
-4 to 158°F / -20 to 70°C
Storage Temperature
-22 to 176°F / -30 to 80°C
Electrical
Power Consumption
Typical: < 10.0 W
Input Power
10 to 35 VDC
General
Certifications
CE, FCC, RoHS
Mounting-Hole Pattern
50 x 50 mm
Dimensions
7.7 x 4.8 x 1.4″ / 196 x 121.5 x 35 mm
Weight
1.54 lb / 699 g
