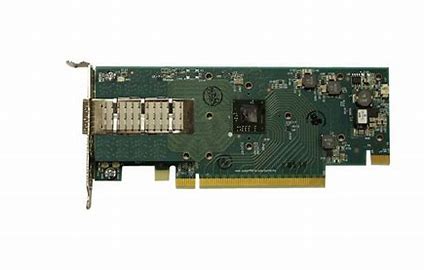

Xilinx XtremeScale X2541 – Network adapter – PCIe 3.1 x16 low profile – 100 Gigabit QSFP28 x 1
د.إ6,899.00
| Category | Details |
|---|---|
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 3.1 x16 |
| PCI Specification Revision | PCIe 3.1 |
| Networking | |
| Ports | 100 Gigabit QSFP28 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Features | VLAN support, MAC address filtering, IP address filtering, Quality of Service (QoS), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Solarflare Accelerated Receive Flow Steering (SARFS), TCP/IP checksum offload, UDP/IP checksum offload, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), VLAN filtering, Jumbo Frames support (up to 9000 bytes), Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), Data Plane Development Kit (DPDK), generic segmentation offload (GSO), VLAN Tagging, MCTP over SMBus, Receive Segment Coalescing (RSC), GENEVE support, TCP Direct, NetQueue |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 1588-2008, IEEE 802.3-2012, IEEE 802.3bx |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet – QSFP28 |
| Miscellaneous | |
| Compliant Standards | UL, FCC, RoHS 2011/65/EU |
| Software / System Requirements | |
| OS Required | SUSE Linux Enterprise Server, Microsoft Windows Server, Debian Linux, Red Hat Enterprise Linux, Ubuntu, VMware ESXi |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.7 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 80% |
