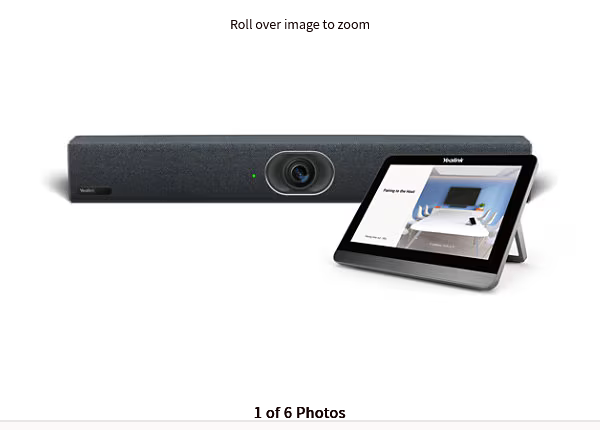

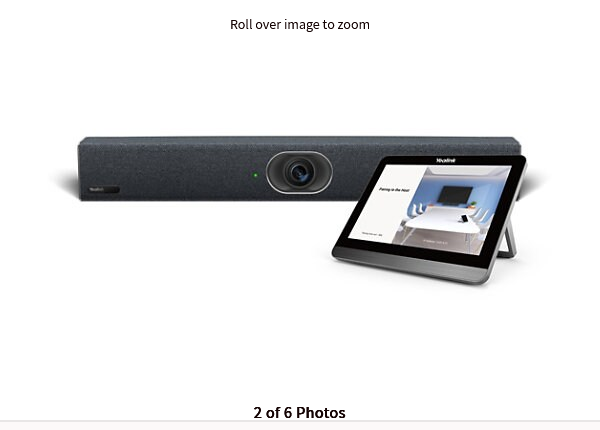

Yealink MeetingBar A20 – video conferencing kit – with Yealink Collaboration Touch Panel CTP18

Add to Wishlist

Quick tech specs

  • Video conferencing kit (video bar, touch console)
  • with Yealink Collaboration Touch Panel CTP18
  • Zoom Certified, Certified for Microsoft Teams

AED13,199.00

Add to Wishlist
Yealink MeetingBar A20 is an all-ine-one video bar deisgned for small space (up to 13, with additional extended wireless mic. VCM36). The built-in 20MP camera with 120° field of view catches details precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking, Multi-focus Framing, Picture-in-Picture and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
SKU: 1206651 Category: Tag:
Category Details
Overview
Brand Yealink
Product Line Yealink MeetingBar
Model A20
Manufacturer Yealink
Network & Communication
Connectivity Technology Wired, Wireless
Data Link Protocols Bluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet, Wi-Fi
Features Quality of Service (QoS), Static IP mode, VLAN support
IP Address Assignment DHCP
Network Protocols HTTP, HTTPS, Link Layer Discovery Protocol (LLDP), SNTP
Network Standard IPv4, IPv6
Product Type Network adapter
Connectivity
Interface Provided 1 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45, 1 x USB 2.0 – 4 pin USB Type A, 1 x Yealink VCH port – RJ-45, 2 x audio/video – HDMI output – 19 pin HDMI Type A
Display & Graphics
Touchscreen No
Audio
Audio Input Type 8-microphone array
Form Factor Integrated
Microphone Operation Mode Beamforming
Output Type Speaker(s)
Speaker Output Mode Mono
Speaker Output Power 5 watt
Video
Color Support Color
Form Factor Integrated
Video Input Type Digital video camera
Power
Power Consumption 10.5 watt
Power Device Type Power adapter
Required Voltage AC 100-240 volt
Software
Software Certification Certified for Microsoft Teams, Zoom Certified
Software Type Android 10.0
Technical Information
Built-in Devices 64 GB internal storage, 8 microphone array, Camera, Motion sensor, Speaker
Conferencing System Type Video conferencing kit
Power Device Form Factor External
Max Operating Temperature 104°F
Min Operating Temperature 32°F
Operating Humidity 10 – 95%
Product Information

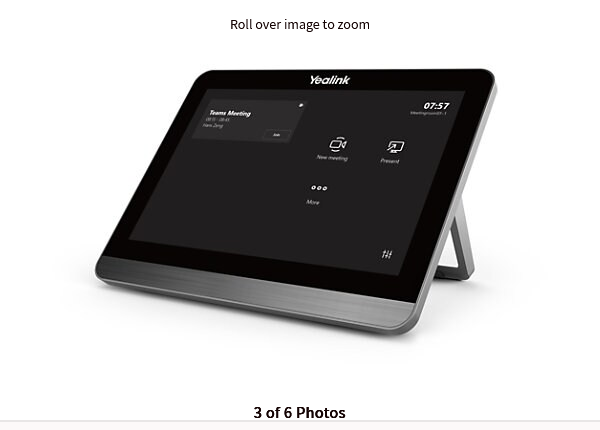

Bundled With Yealink Collaboration Touch Panel CTP18
Features 110° field of view (horizontal), 120° diagonal field of view, 20 megapixels resolution, 73° field of view (vertical), Auto-framing, Electronic shutter, ePTZ, Picture-in-picture capability, Smart Gallery, Speaker tracking, Yealink Noise Proof Technology
Packaged Quantity 1
Quality of Service Differentiated Services (DiffServ), IEEE 802.1p, IEEE 802.1Q (VLAN)
Security 256-bit AES, EAP-MD5, EAP-MSCHAPv2, EAP-TLS, EAP-TTLS, IEEE 802.1X, PEAP-MSCHAPv2, TLS
System Kit Content Touch console, Video bar
Video Codecs H.264, H.264 High Profile, H.264 SVC
VoIP Protocols SRTP
Included Items
Cables 1 x network cable – 10 ft, 2 x HDMI cable – 6 ft
Included Accessories Mounting bracket, TV-clip mount
Dimensions & Weight
Height 3.2 inch
Weight 6.38 lbs
Width 23.6 inch
Depth 2.7 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards ANATEL, CCC, CEC, FCC, ISO 9001, NOM, RCM, REACH, RoHS
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
