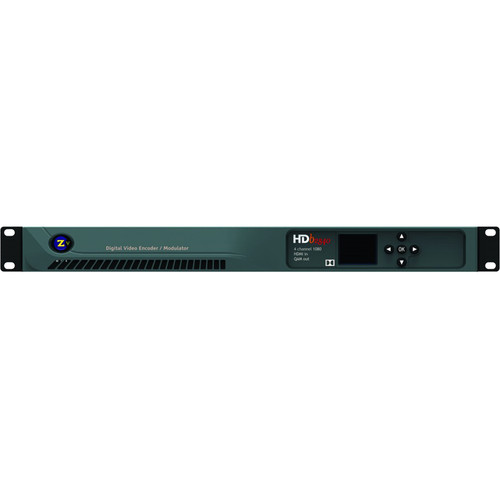

ZeeVee HDb2840 Digital Video Encoder/Modulator

Add to Wishlist

AED25,699.00

Add to Wishlist

ZeeVee HDB 2840 Overview

The HDb2840 Digital Video Encoder/Modulator from ZeeVee is a 4-channel HD modulator with unencrypted HDMI inputs. You can save an MPEG-2 video file to the 300MB internal memory, and use it as an additional 5th channel. This unit distributes HD video throughout your facility, while using existing coaxial cables. It is HDTV compatible, The LCD front panel provides device status of IP address, data rate encoding, configured RF and digital channels. The Maestro software allows you to configure and entire headend quickly, view status and configurations, apply a value to all channels with a few clicks, and create your channel plan on one page. This unit also features an Emergency Alert System (EAS) capability.

  • Unencrypted HDMI video inputs for up to 4 channels
  • Bonus 5th Channel for Signage – 300MB Internal memory for use with an MPEG-2 program stream file
  • Emergency Alert System capability
  • Maestro multibox management software via local or remote configuration and management
  • Color LCD for front panel configuration and at-a-glance monitoring and status
  • Ethernet port for configuration and remote management
  • Analog and Digital Audio internally encoded and broadcast as Mpeg-1 Layer 2
  • Integrated Closed Caption support required for ADA compliance in many applications
  • Delay Matched Audio on Port 1 for use with Audio Systems
  • Designed and built in the U.S.A.
SKU: HDB2840-NA Category: Tag:

ZeeVee HDB 2840 Specs

Connectors
1 x Coax output
4 x HDMI input
4 x 3.5 mm phone jack, composite video input (for TeleText only)
4 x 3.5 mm phone jack, HDb2840 analog audio input
1 x 3.5 mm phone jack, delay matched analog audio output
1 x 3-position emergency alert system input
2 x RJ-45 10/100 LAN port
1 x AC power input
Indicators and Controls
1 x Color display
5 x Selection buttons
HDMI Video Input
4 ports per model
Closed Caption
EIA/CEA-608 captions accepted over composite video input
Internal Memory
MPEG-2 Program Stream file, up to 300 Mb
Analog Audio Input
75 Ω, 0 to 0.7 V at Line-level output
Digital Audio
Digital as element of HDMI 1.3 port
Audio Encoding
Internally encoded into Dolby Digital AC-3 or MPEG1 Layer 2 (varies by region)
Encoder Video Profile
MPEG2 HD Profile 2: ISO13818-2 MP @ HL
Traffic Shaping
Variable Bit Rate
Video Transport Bit Rate
Variable, 10 Mbps – 24 Mbps per channel
Encoding Data Rates
Variable, 10 Mbs to 24 Mbs per channel
Average Encoding Data Rate
18 Mbs per channel
Encoding Latency
Programmable 100 msec to 400 msec
Color Profile
4:2:0
GOP Size
24
Video, Audio PID
Programmable
Program Information
Programmable
Encoder Audio Profile
ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer 1 (varies by region)
Modulation Type
QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C
QAM 256 (ITU-T J83 Annex A) (varies by region)
Cable Standard
HRC, IRC or STD or user defined (varies by region)
Frequency Range
54 to 864 MHz
2 kHz resolution
± 30 ppm accuracy
± 35 ppm stability
Output Power
+45 dBmV typical
Output Level Adjustment
25 to 45 dBmV in 1 dBmV steps
MER
> 38 dB typical
I/Q Amplitude Imablance
< 1% typical
Spectral Tilt
<= 1 dB over 6 MHz typical
Network Interface
10/100 mb Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface for easy configuration
Telnet connection for CLI scripting
Easy firmware updates
All settings saved in NV storage
Front Panel Color Display
Quickly obtain status at a glance
Power
100 to 240 VAC, 50/60 Hz
Power Consumption
60 W maximum, 30 W Typical
Cooling
Dual Internal cooling fans, front inlet, rear exhaust
Enclosure
Metal
Vibration
NSTA 1A in carton
MTBF
45,000 hours
Compliance
FCC Class A, IEC60065, EN61000, CE, RoHS, RCM C-Tick
Temperature & Humidity
32 to 113&DegF (0 to 45°C), 10% to 80%, non-condensing
Dimensions
1.72 x 17.3 x 9.9″ (43.6 x 440.2 x 251.5 mm)
Weight
6.25 lb (2.84 kg)
Packaging Info
Package Weight
8.6 lb
Box Dimensions (LxWxH)
21.1 x 12.4 x 4.9″
