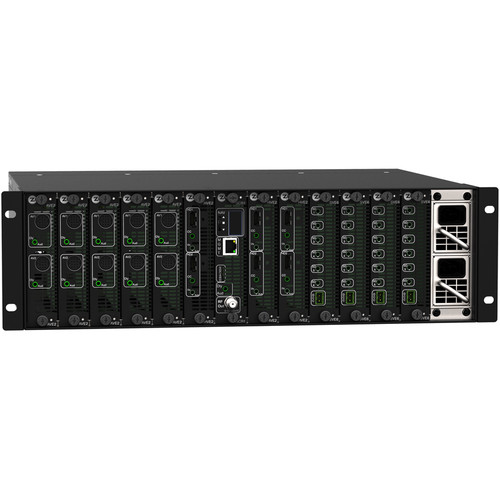

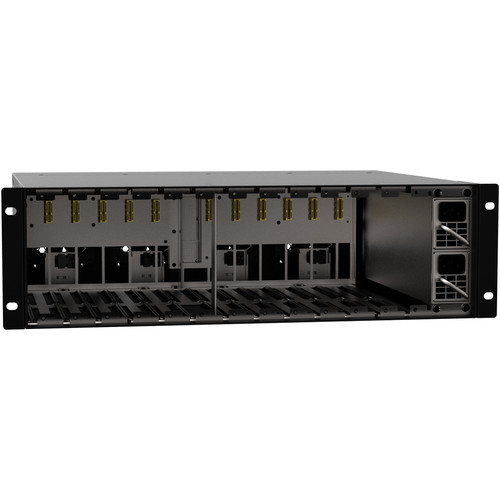

ZeeVee HDBridge3000 Chassis (3 RU)

Add to Wishlist

17,899.00 د.إ

Add to Wishlist

ZeeVee HDB 3KR Overview

The HDBridge3000 Chassis from ZeeVee provides a reliable solution for delivery of cable, satellite, and IPTV video content all within a compact 3 RU footprint. It gives HD and SD video output simultaneously in both RF and IP formats. The modular design of the chassis provides 12 media slots with the flexibility to mix-and-match HDMI, component, and composite cards, making it suitable for professional-grade video distribution.

  • 12 media module slots for delivery of any type of content regardless of source inputs
  • Simultaneous video output in both RF over coax and IP over CATx
  • Up to 24 channels of HD content or 72 channels of SD content
  • Zero downtime with hot-swappable media modules, fans, and power supplies
  • No active components on the backplane
  • Configured and maintained using ZeeVee’s user-friendly Maestro management platform
  • Distributes video over RF to an unlimited number of displays leveraging the QAM tuner in the TV
  • ZvEAS connects to national EAS and allows for local emergency message information
  • Playback custom content using the ZvShow channel
  • Compact 3RU form-factor
SKU: HDB3KR-NA Category: Tag:

ZeeVee HDB 3KR Specs

Power
100 to 240 VAC 50/60 Hz, 300 W capacity, IEC 60320-C14 jack
Cooling
Four hot swappable, N+1 redundant, high-capacity cooling fans, front inlet, rear exhaust
Supported Modulation Types
QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
Cable Standard
Standard, HRC, or IRC
Frequency Range
Frequency agile QAM RF CATV from 54-864 MHz, Channels 2-135
Frequency must be within 400 MHz band within the chassis
Output Level Adjust
34 to 13 dBmV in 1 dBmV steps
MER
> 39 dB, typical
Network Interface
10/100/1000 Mb Ethernet via RJ45 connection
Mounting
Standard 19″ (48.26 cm) equipment rack mounting
Three standard rack units
Front or rear mountable rack ears
Temperature / Humidity
32 to 113°F (0 to 45°C)
Weight
Not specified by the manufacturer
Dimensions
17.4 x 5.1 x 14.75″ (441 x 129 x 374 mm)
