ZeeVee ZyPerUHD-D ,4K Over IP Digital Video Distribution Decoder

Add to Wishlist
  • Video: HDMI 2.0a with HDCP pass-through
  • Video Connector: HDMI type A
  • Digital Audio: Mutli-channel linear PCM up to 8 channels, Dolby Digital, AC3
  • Digital Audio Connector: HDMI type A

AED5,399.00

Add to Wishlist

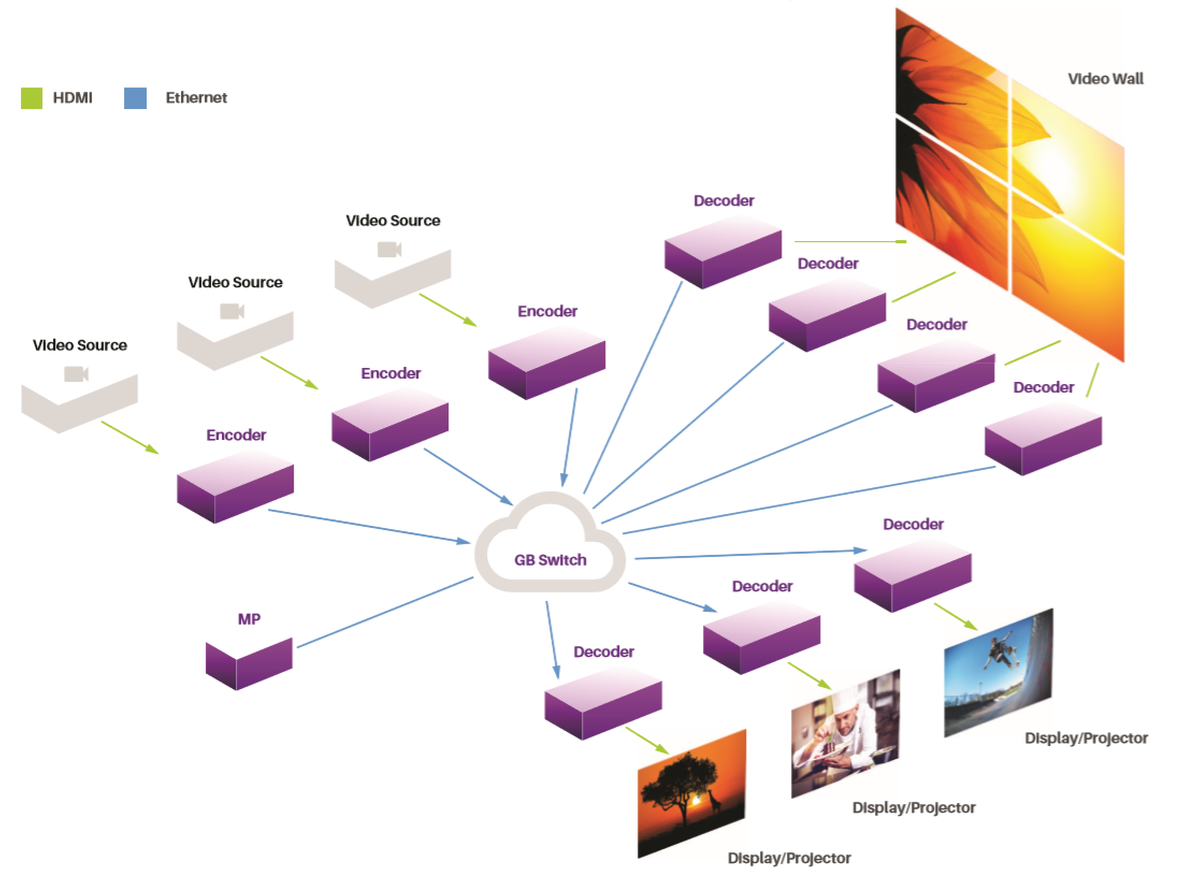

ZeeVee’s ZyPerUHD-D decoder is a signal distributor. This handy device compresses video signals, and it can distribute digital audio, video, and control signals over cables and network switches. The ZyPerUHD-D decoder distributes video signals up to 4K resolution from an unlimited number of displays, such as video walls, projectors, and other display types.

It features an HDMI 2.0 output and 1Gbps Ethernet interface (one for pass-through as well). This decoder accepts IP streaming via both copper and Gbps and supports USB, IR, and RS-232 via Phoenix connector.

SKU: ZyPerUHD-D Category: Tag:
  • Analog Audio: Balanced stereo output
  • Analog Audio Connector: Phoenix connector
  • IR: Input/output ports
  • IR Connector: 3.5mm mini jacks
  • Serial: Full duplex up to 115.2 kbps
  • Serial Connector: Phoenix
  • USB: Dual USB 2.0
  • USB Connector: 2 USB Type A
  • Ethernet (PoE): 1Gb for video/audio/control
  • Ethernet Connector: 1 Gb RJ45 port
  • Formats: Supports all major VESA resolutions and variations, including: VGA: 640×480 (4:3)
  • HDTV: 1280×720 (16:9)
  • 1080p/i: 1920×1080 (16:9)
  • Ultra HD: 3840×2160 (16:9)
  • 4K: 4096×2160 (17:9)
  • Video Color: Depth: 24-bit, 30-bit
  • Signal Transmission Distance: Cat6a: 328 ft (100 m)
  • Power Input: 12 VDC 1A
  • Power Consumption: Approximately 6W
  • Dimensions: 2-gang standard box
