Decoder
ZeeVee ZyPerUHD-E
- Video: HDMI 2.0a with HDCP pass-through
- Video Connector: HDMI type A
- Video Loopout: HDMI Video Loopout Connector: HDMI type A
- Digital Audio: Mutli-channel linear PCM up to 8 channels, Dolby Digital, AC3
AED5,099.00

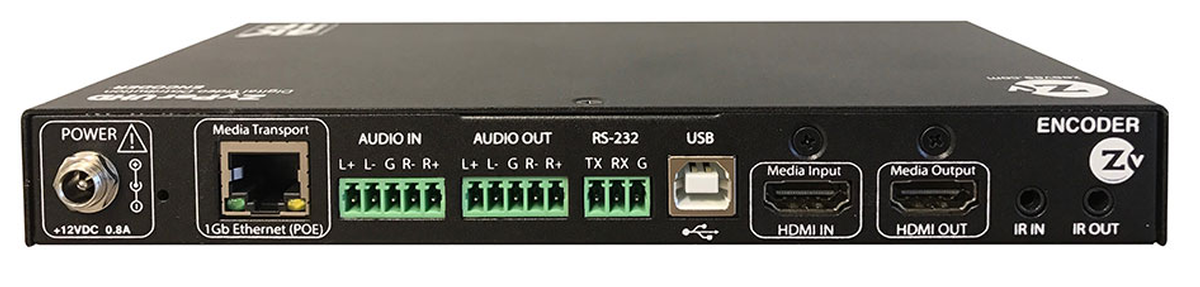

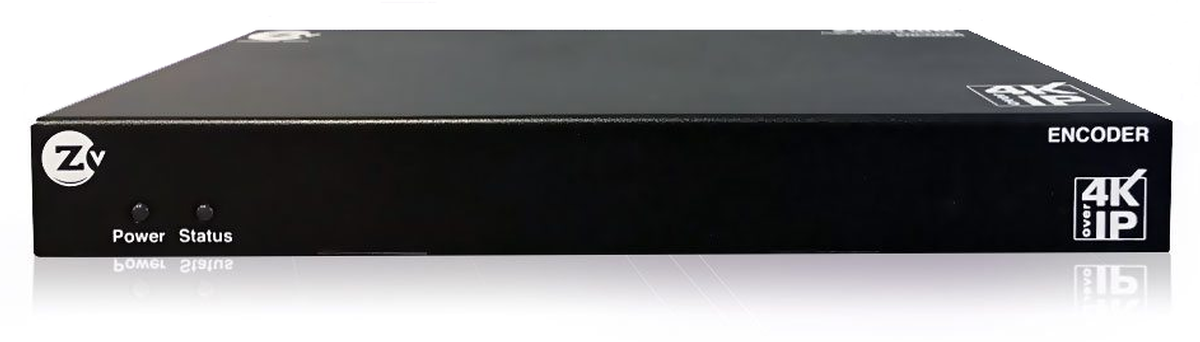

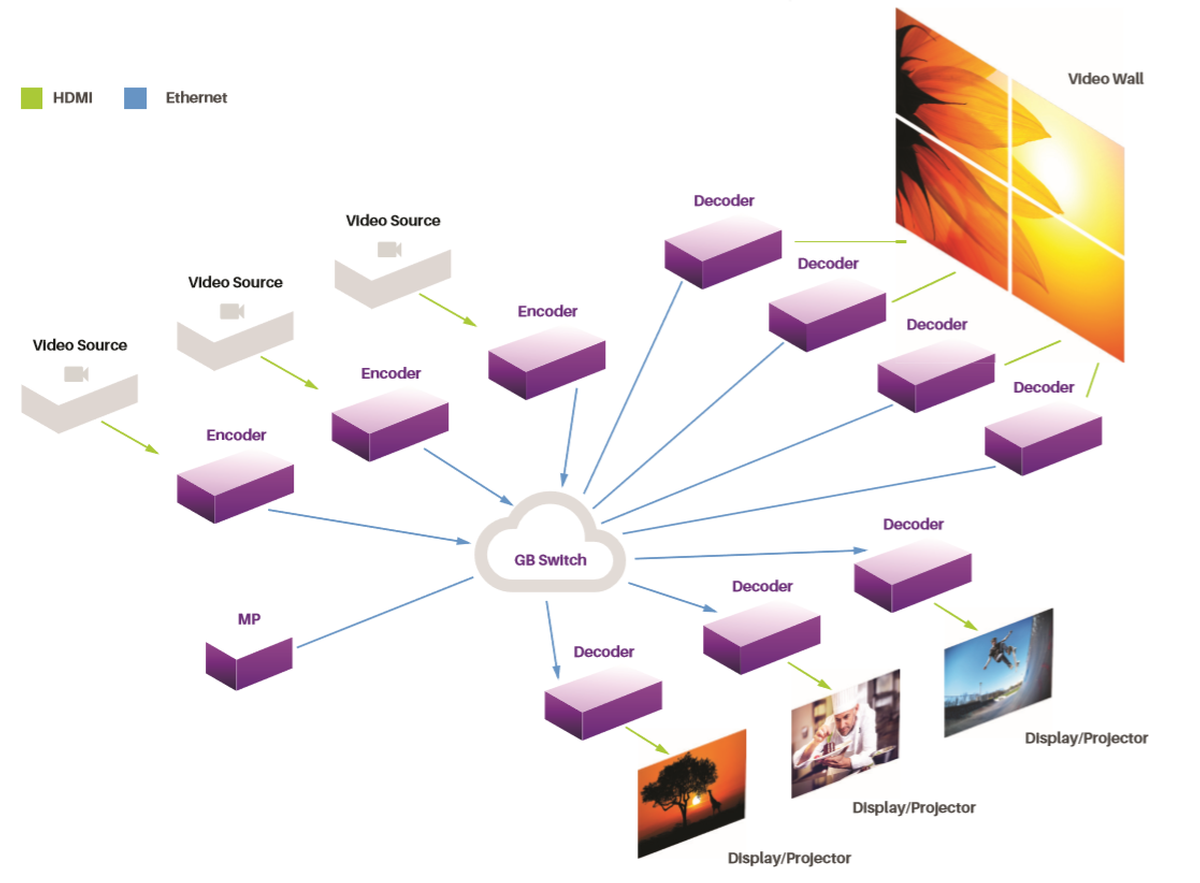

ZeeVee’s ZyPerUHD-E encoder is a signal distributor. This handy device compresses video signals, and it can distribute digital audio, video, and control signals from video sources to a network switch. The ZyPerUHD-E encoder distributes video signals up to 4K resolution to an unlimited number of displays, such as video walls.
It features an HDMI 2.0 output and 1Gbps Ethernet interface (one for pass-through as well). This encoder accepts IP streaming via both copper and Gbps and supports USB, IR, and RS-232 via Phoenix connector.
- Digital Audio Connector: HDMI type A
- Analog Audio: Balanced stereo input and output
- Analog Audio Connector: Phoenix
- IR: Input/output ports
- IR Connector: 3.5mm jack
- Serial: Full duplex up to 115.2 kbps
- Serial Connector: 3.5mm jack
- USB: Single USB 2.0
- USB Connector: USB Type B
- Ethernet (PoE): 1Gb for video/audio/control
- Ethernet Connector: 1 Gb RJ45 port
- Formats: Supports all major VESA resolutions and variations, including: VGA: 640×480 (4:3)
- HDTV: 1280×720 (16:9)
- 1080p/i: 1920×1080 (16:9)
- Ultra HD: 3840×2160 (16:9)
- 4K: 4096×2160 (17:9)
- Video Color: Depth: 24-bit, 30-bit
- Signal Transmission Distance: Cat6a: 328 ft (100 m)
- Power Input: 12 VDC 1A
- Power Consumption: Approximately 6W
- Dimensions: 2-gang standard box
