ZeeVee ZyPerUHD-WE

Add to Wishlist
  • Video: HSMI 2.0a with HCP pass-through
  • Video Connector: HDMI and VGA 15-pin D-sub
  • Video Loopout: HDMI Digital Audio: Mutli-channel linear PCM up to 8 channels, Dolby Digital, AC3
  • Digital Audio Connector: HDMI type A

AED5,099.00

Add to Wishlist

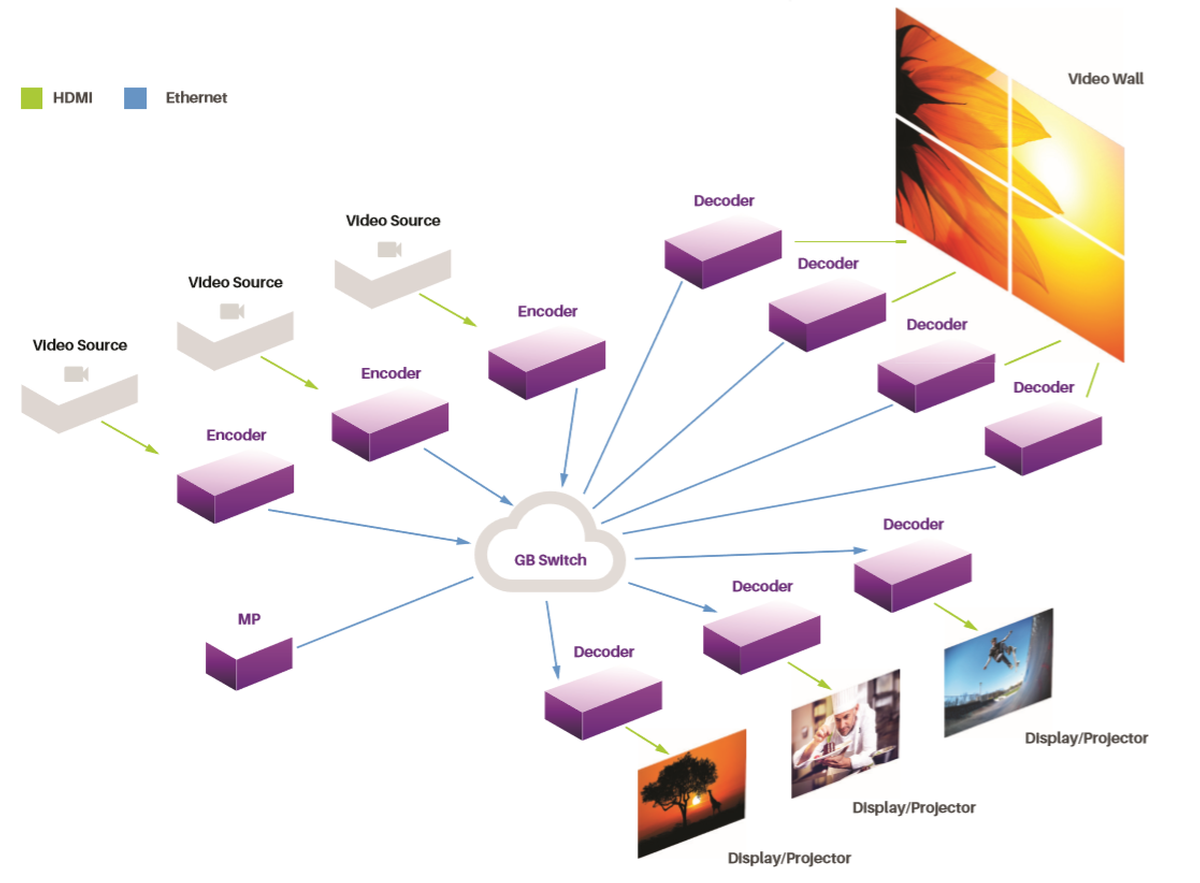

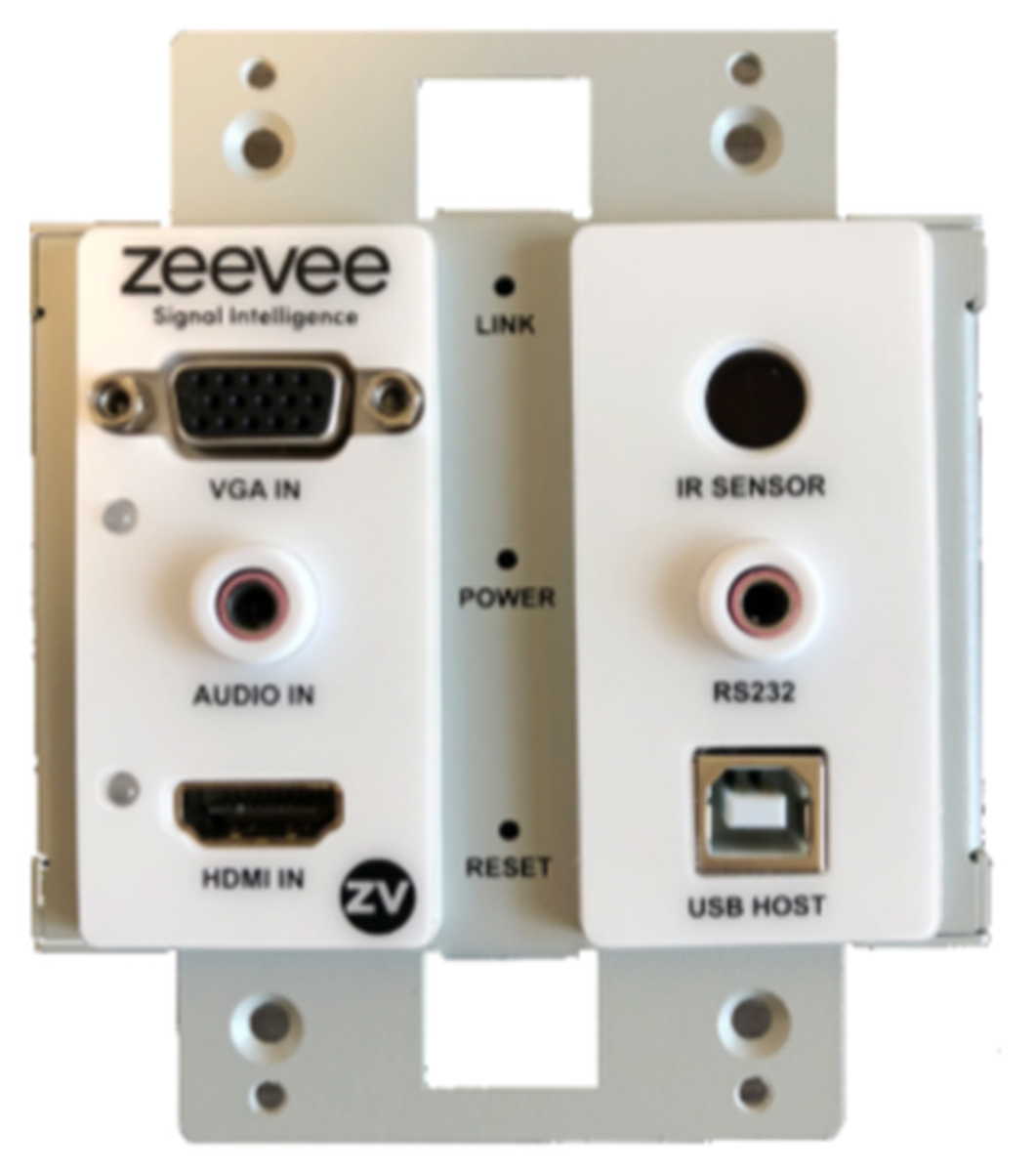

ZeeVee’s ZyPerUHD wall plate encoder is a 2-gang wall plate that features 6 ports. This handy device compresses video signals, and it can distribute digital audio, video, and control signals over cables and network switches from any HDMI source up to 328 feet.This capability makes the wall plate encoder a great alternative to standard matrix switchers. From the top-right corner moving clockwise, the ports are as follows:

  • IR sensor
  • RS2322
  • USB host port
  • HDMI input
  • Unbalanced stereo audio input
  • VGA input

The ZyPerUHD-WE wall plate encoder distributes video signals up to 4K resolution from an unlimited number of displays.

SKU: ZyPerUHD-WE Category: Tag:
  • Analog Audio: Balanced stereo input and output
  • Analog Audio Connector: 3.5mm jack with unbalanced input only
  • IR: Input/output ports
  • IR Connector: Built-in sensor
  • Serial: Full duplex up to 115.2 kbps
  • Serial Connector: 3.5mm jack
  • USB: Single USB 2.0
  • USB Connector: USB Type B
  • Ethernet (PoE): 1Gb for video/audio/control
  • Ethernet Connector: 1 Gb RJ45 port
  • Formats: Supports all major VESA resolutions and variations, including: VGA: 640×480 (4:3)
  • HDTV: 1280×720 (16:9)
  • 1080p/i: 1920×1080 (16:9)
  • Ultra HD: 3840×2160 (16:9)
  • 4K: 4096×2160 (17:9)
  • Video Color: Depth: 24-bit, 30-bit
  • Signal Transmission Distance: Cat6a: 328 ft (100 m)
  • Power Input: 12 VDC 1A
  • Power Consumption: Approximately 6W
  • Dimensions: 2-gang standard box
