The Zyxel NWA1123-AC HD is a Wave 2 dual-radio 3×3 MU-MIMO standalone Access Point with a combined data rate of up to 1.6Gbps. Thanks to its superior hardware design with next generation beamforming technology and advanced noise suppression, the NWA1123-AC HD delivers increased coverage and improved connection speeds for every client. The high-performance NWA1123-AC HD provides fast, reliable wireless experience that makes itself a favorable, cost-effective solution for high-density Wi-Fi deployments. MU-MIMO, New Definition of Wi-Fi Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3×3 AP. Generation-2 Transmit Beamforming benefits overall networking Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients. Built for Superior performance The NWA1123-AC HD is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market. Optimized wireless experience with advanced features To provide outstanding performance in crowded environment, NWA1123-AC HD features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.
ethernet

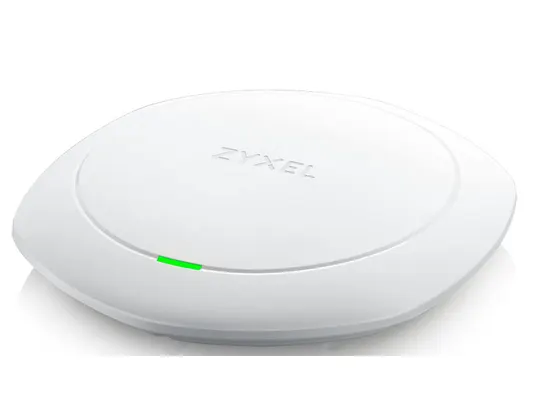

Zyxel NWA1123 AC HD 1300 Mbit/s White Power over Ethernet (PoE)
NWA1123-AC HD – 802.11ac Wave2 Dual-Radio Standalone Access Point
د.إ1,599.00
2.4 GHz | Y |
5 GHz | Y |
Maximum data transfer rate | 1300 Mbit/s |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Throughput data rate | 1600 Mbit/s |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
MIMO | Y |
Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, QPSK |
VLAN support | Y |
Maximal-Ratio Combining (MRC) | Y |
Maximum Likelihood Detection (MLD) | Y |
Cyclic Shift Diversity (CSD) | Y |
Quality of Service (QoS) support | Y |
Receiver sensitivity | -103 dBm |
Security algorithms | 802.1x RADIUS, EAP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
Number of SSID supported | 16 |
DHCP client | Y |
Management protocols | SNMP v2c/v3 |
Firmware upgradeable | Y |
Ethernet LAN (RJ-45) ports | 2 |
DC-in jack | Y |
Power over Ethernet (PoE) | Y |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Output voltage | 12 V |
Output current | 2 A |
Power consumption (typical) | 15.5 W |
Placement | Ceiling, Wall |
Product colour | White |
Cable lock slot | Y |
Cable lock slot type | Kensington |
Internal | N |
Antenna gain level (max) | 3 dBi |
Operating relative humidity (H-H) | 10 – 90% |
Operating temperature (T-T) | -20 – 50 °C |
Storage temperature (T-T) | -20 – 70 °C |
Storage relative humidity (H-H) | 10 – 90% |
Width | 211 mm |
Depth | 223 mm |
Height | 39 mm |
Weight | 750 g |
AC adapter included | Y |
Mounting kit | Y |
Package width | 266 mm |
Package depth | 268 mm |
Package height | 56 mm |
Package weight | 1.09 kg |
