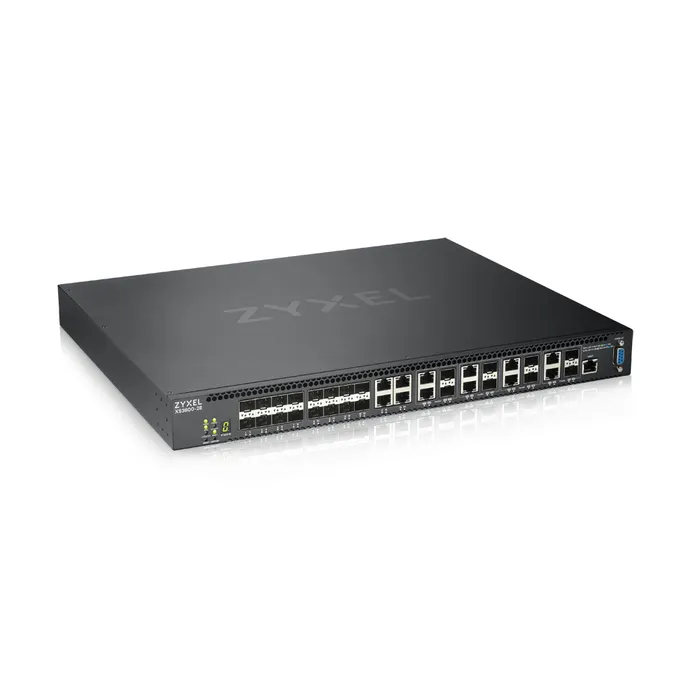

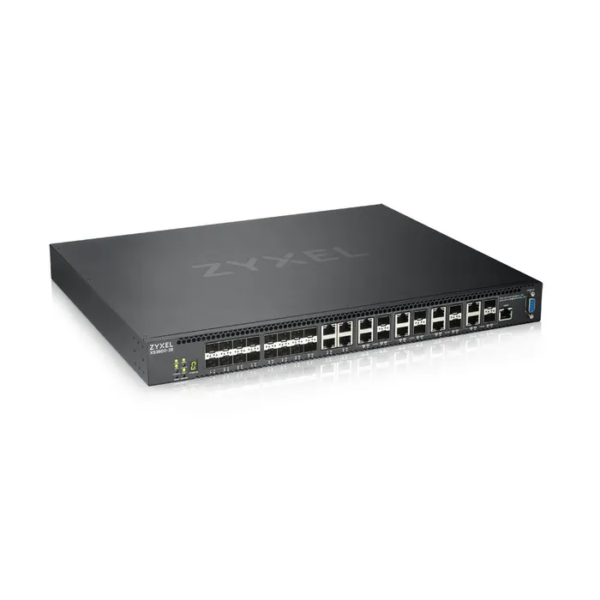

Zyxel XS3800-28 Managed L2+ 10G Ethernet (100/1000/10000) Black


4 x RJ-45, 8 x Multi-Gigabit combo RJ-45 / SFP+, 16 x SFP+, 560 Gbps, 416 Mpps, 64 MB/8 GB Flash/RAM, 100 – 240 V AC, 50/60 Hz, 441 x 360 x 44 mm

23,299.00 د.إ

Flexible port design XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks. Essentials of a core switch XS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability. Restore Button The “Restore” button saves the last workable configuration as the custom default, which allows you to fall back instantly in case of network misconfigurations. Dual Power Two PSUs support active-standby power redundancy that triggers backup power supply if the main unit fails. Designed for the long haul Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS3800-28 for your networks.

SKU: XS3800-28-ZZ0101F Categories: , Tag:
Attribute Details
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Y
Web-based management Y
Traffic classification Y
Traffic shaping Y
ARP inspection Y
Configuring Location Settings (CLI) Y
MIB support Y
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Combo SFP ports quantity 8
SFP+ module slots quantity 16
Fiber optic connector SFP+
Power connector AC-in jack
Networking standards IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support Y
Copper ethernet cabling technology 10GBASE-T, 100BASE-T, 1000BASE-T
Port mirroring Y
IP routing Y
Policy-based routing Y
Flow control support Y
Broadcast storm control Y
Rate limiting Y
Spanning tree protocol Y
Auto-negotiation Y
VLAN support Y
Fiber ethernet cabling technology 1000BASE-X
MAC address table 32 entries
Switching capacity 560 Gbit/s
Forwarding rate 416 Mpps
Packet buffer memory 4 MB
DHCP features DHCP client, DHCP relay, DHCP server
Access Control List (ACL) Y
IGMP snooping Y
IGMP proxy Y
MAC address filtering Y
SSH/SSL support Y
Loop protection Y
BPDU filtering/protection Y
Authentication MAC-based authentication
Password protection Y
Multicast support Y
Rack mounting Y
Product colour Black
Reset button Y
Internal memory 8000 MB
Flash memory 64 MB
Mean time between failures (MTBF) 656274.78 h
Harmonized System (HS) code 85176990
Power supply included Y
Redundant power supply (RPS) support Y
Number of power supply units 2
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 10 – 95%
Storage relative humidity (H-H) 10 – 95%
Width 441 mm
Depth 340 mm
Height 44 mm
Weight 4.81 kg
Cables included AC
Rack mount kit Y
