7609S-RSP720CXL-P Cisco 7609 Router
| Model: | 7609S-RSP720CXL-P Cisco 7609 Router |
| Detail: |
Cisco 7609S Chassis,9-slot,RSP720-3CXL,PS
|
د.إ307,599.00
The Cisco 7609-S Router is a high-performance router deployed at the network edge, where performance, IP services, redundancy, and fault resiliency are critical. 7609S-RSP720CXL-P enables Carrier Ethernet service providers to deploy an advanced network infrastructure that supports a range of IP video and triple-play (voice, video, and data) system applications in both the residential and business services markets. The Cisco 7609 enables enterprises to deploy advanced WAN and metropolitan-area network (MAN) networking solutions necessary to succeed in demanding, high-traffic environments.
Quick Spec

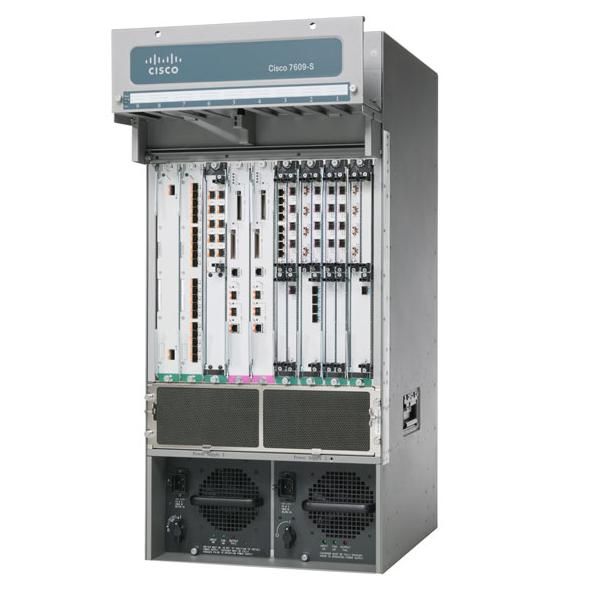

Figure 1 shows the appearance of 7609S-RSP720CXL-P.
Table 1 shows the quick spec.
| Product Number | 7609S-RSP720CXL-P |
| Description | Cisco 7609S Chassis,9-slot,RSP720-3CXL,PS |
| Manufacturer | Cisco Systems, Inc |
| Form Factor | Rack-mountable – modular – 21U |
| Dimensions (WxDxH) | 36.75 x 17.2 x 20.7 in |
| Weight | 54.9 kg, chassis only |
| DRAM Memory | 3 GB (installed) / 6 GB (max) |
Compare to Similar Items
Table 2 shows the comparison between 7609S-RSP720C-P and 7609S-RSP720C-P.
| Product Number | 7609S-RSP720CXL-P | 7609S-RSP720C-P |
| Description | Cisco 7609S Chassis,9-slot,RSP720-3CXL,PS | Cisco 7609S Chassis,9-slot,RSP720-3C,PS |
| Dimensions (H x W x D) | 36.75 x 17.2 x 20.7 in | 36.75 x 17.2 x 20.7 in |
| Weight | 54.9 kg, chassis only | 54.9 kg, chassis only |
| DRAM Memory | 3 GB (installed) / 6 GB (max) | 2 GB (installed) / 6 GB (max) |
7609S-RSP720CXL-P Specification |
|
| Product Number | 7609S-RSP720CXL-P |
| Description | Cisco 7609S Chassis,9-slot,RSP720-3CXL,PS |
| Manufacturer | Cisco Systems, Inc |
| Form Factor | Rack-mountable – modular – 21U |
| Dimensions (WxDxH) | 36.75 x 17.2 x 20.7 in |
| Weight | 54.9 kg, chassis only |
| DRAM Memory | 3 GB (installed) / 6 GB (max) |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, ICMP/IP |
| Features | Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.1x |
| Bundled with | Cisco 7600 Series Route Switch Processor 720 with PFC-3CXL |
