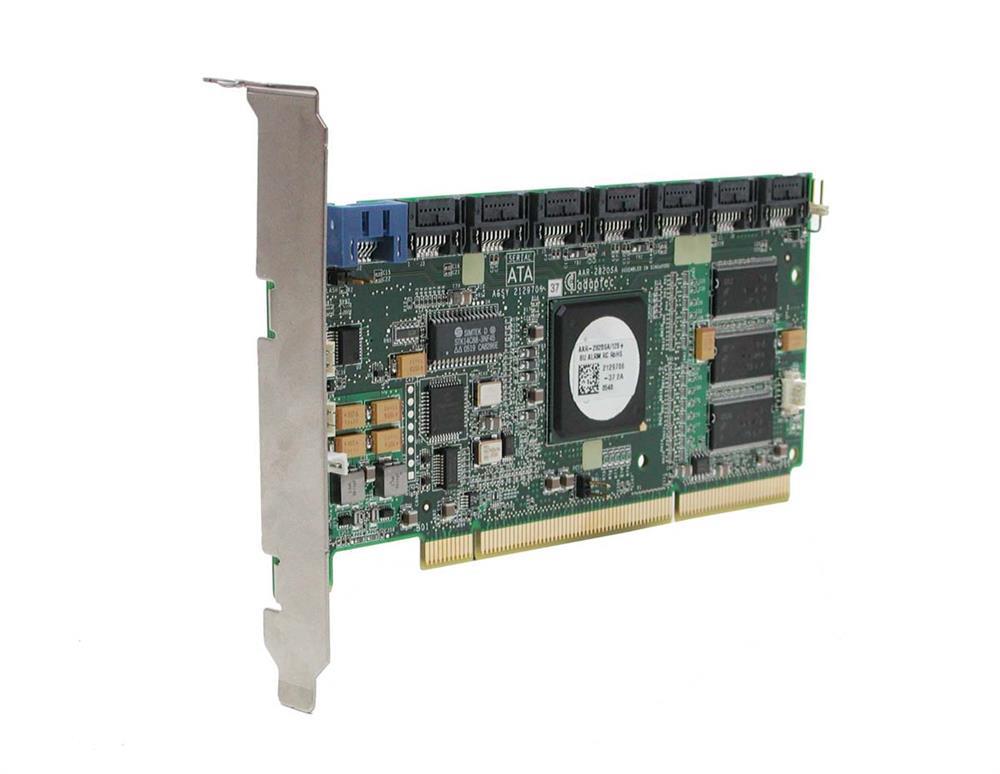

Adaptec 2820SA SATA Serial ATA II 8 port RAID Controller PCI-X – New Pull
Serial ATA II (SATA II), the successor to SATA technology for data storage, is a point-to-point connection that delivers full throughput to each storage device by allowing multiple ports to be managed by a single controller. Adaptec SATA II technology delivers data transfer rates with 3 Gb/s while also supporting 1.5 Gb/s (SATA I).
The Adaptec Serial ATA II RAID 2820SA card is an eight-port controller that supports SATA or SATA II direct attached disk drives. It features the Adaptec AIC-8210 SATA RAID-on-Chip (ROC) ASIC and Adaptec RAID Code (ARC) with standard RAID 0, 1, 5, 10, 50 as well as the Adaptec Advanced Data Protection Suite with RAID 1E, 5EE, 6, 60, Copyback Hot Spare and optional Snapshot Backup. With the industry’s most advanced feature set, the Adaptec 2820SA provides the highest level of data protection.
The Adaptec Advanced Data Protection Suite includes advanced RAID levels and features:
Alt PN: 2169900-R
| Weight | 0.907 kg |
|---|
| Supported Operating Systems | |
| Windows 2000, SP4 (Professional, Advanced Server, Server, Enterprise) – 32bit only Windows XP, SP1 and SP2 (Home Edition and Professional) – 32bit and 64bit Windows Server 2003, OOB and SP1 (Web, Standard, Enterprise) – 32bit and 64bit Netware 6.5 FreeBSD 5.3 and 5.4 Red Hat Enterprise Linux 3 – 32bit and 64bit Red Hat Enterprise Linux 4 – 32bit and 64bit SuSE Enterprise Linux 8 – 32bit and 64bit SuSE Enterprise Linux 9 – 32bit and 64bit |
|
| Benefits | |
| High-performance storage connectivity and data protection for servers and workstations | |
| Customer Needs | |
| Ideal for supporting server and workgroup applications where high levels of sustained read and write operations are required, such as video streaming, web content, video-on-demand, security and surveillance, fixed content, and reference data storage. | |
| System Environment | |
| Departmental and workgroup servers and workstations | |
| Key RAID Features | |
Hot spares, RAID Level Migration, Online Capacity Expansion, Optimized Disk Utilization, S.M.A.R.T and SNMP support as well as the features from the Adaptec Advanced Data Protection Suite including:
|
|
| Bus System Interface Type | |
| PCI-X 64-bit/133 MHz host interface (3.3v only) | |
| Internal Connectors | |
| 8 locking SATA connectors | |
| Data Transfer Rate | |
| Up to 3 Gb/s per port | |
| System Requirements | |
| Intel or AMD architecture with available 64-bit 3.3v PCI-X slot Supports EM64T and AMD64 architectures |
|
Standard RAID levels
Optional RAID Features
Board Dimensions
Operating Temperature
|
|
