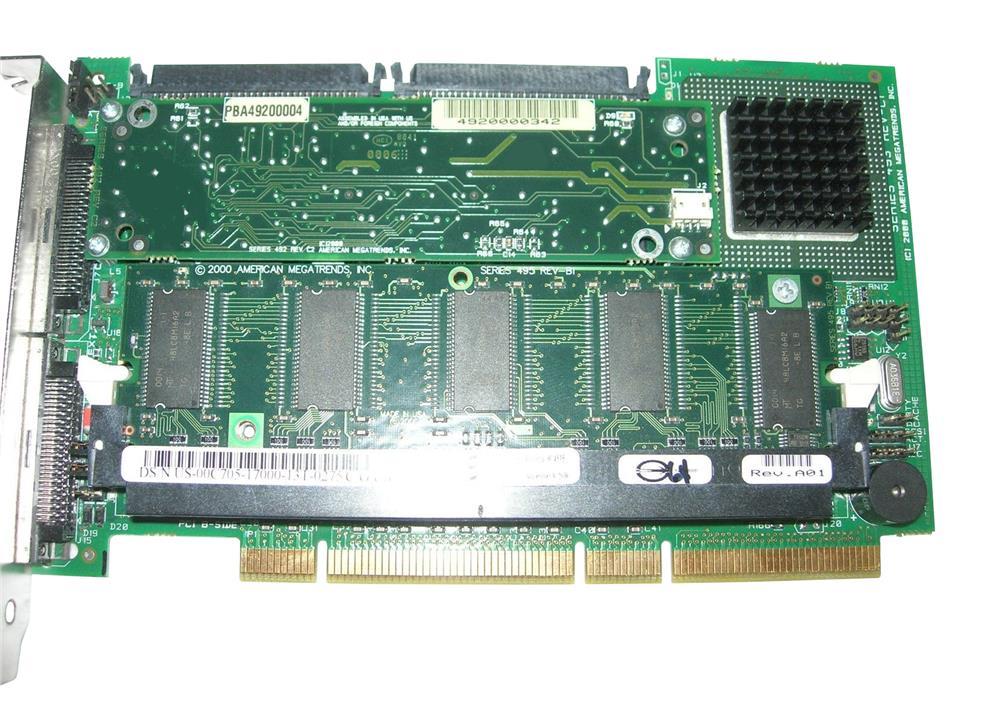

Dell PERC 3/DC Dual Channel U160 LVD SCSI RAID Controller, BBU, 128MB Cache 47JFR – Used Pull
The Dell PowerEdge Expandable RAID Controller 3 (PERC 3) PCI card is a high-performance, intelligent peripheral component interconnect (PCI)-to-SCSI host adapter with RAID control capabilities. The RAID controller provides system availability, high performance, and fault-tolerant disk subsystem management and is an ideal RAID solution with Dell PowerEdge systems. It offers a cost-effective way to implement RAID in a server.
Throughput on each SCSI channel can be as high as 160 MB/sec. PERC 3 supports both an LVD SCSI bus and a single-ended SCSI bus. PERC 3 is a high-performance, intelligent PCI-to-SCSI host adapter with RAID control capabilities. With LVD, you can use cables up to 12 meters long. PERC 3 requires no special motherboard PCI expansion slot.
| Weight | 0.907 kg |
|---|
| Feature | PERC 3/DC, 3/DCL |
|---|---|
| RAID levels | 0, 1, 5, 10, and 50 |
| SCSI channels | 2 |
| Array interface to host | PCI Rev 2.2 |
| Storage interface | Wide 160M |
| Cache memory size | 128 MB DIMM for PERC 3/DC
64 MB for PERC 3/DCL |
| Cache function | Write-back, write-through, adaptive read-ahead, non-read-ahead, read-ahead |
| Number of logical drives and arrays supported | Up to 40 logical drives and 32 arrays per controller |
| Maximum logical drive size supported | 2 TB for all RAID levels (0, 1, 5, 10, and 50) |
| Online capacity expansion | Yes |
| Hot spares | Yes |
| Flashable firmware | 2 MB |
| Hot swap devices supported | Yes |
| Non-disk devices supported
NOTE: PERC 3 does not support any non-disk devices except backplanes. |
No |
| Mixed capacity hard drives | Yes |
| Number of 16-bit internal connectors | Two |
| Number of 16-bit internal connectors | Two |
| Cluster support | PERC 3/DC only |
