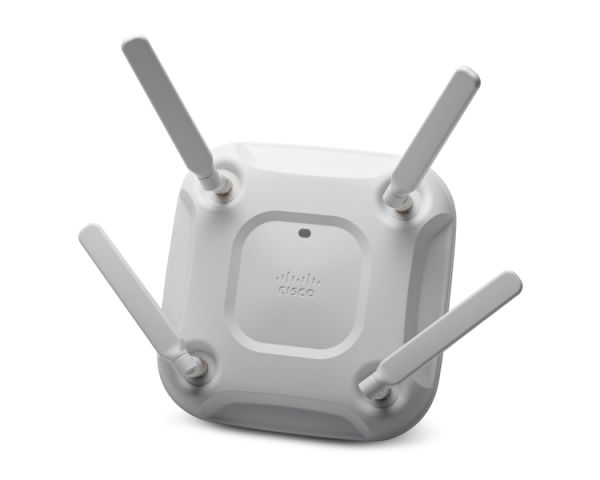

AIR-CAP3702E-H-K9 Cisco Aironet 3700 Series wireless Access Point

Name: AIR-CAP3702E-H-K9 Cisco Aironet 3700 Series wireless Access Point
SKU: AIR-CAP3702E-H-K9
Price: 8799.00 AED
Availability: InStock

Add to Wishlist

AED8,799.00

Add to Wishlist

AIR-CAP3702E-H-K9 Overview

AIR-CAP3702E-H-K9 is one of the 3700 series AP, needing wireless controller, providing external antenna and H regulatory domain. Based on the Cisco Aironet heritage of RF excellence, the 3700 Series utilizes a Purpose-built innovative chipset to provide a high density experience for enterprise network. 4 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing access points. Modular architecture enables flexible add-on options, which include Wireless Security Module, Cisco Universal Small Cell 5310 Module and Cisco Aironet 802.11ac Wave 2 Module.

Quick Specs

Table 1

Product Code	AIR-CAP3702E-H-K9
WiFi Standards	802.11a/b/g/n/ac
Ideal For	Midsize or large enterprises that require mission-critical traffic
Max Data Rate 5GHz	1.3 Gbps
MIMO Radio Design: Spatial Streams	4 x 4:3
Client count/ClientLink client count	200/128
Controller Available	Yes
Power	4 x 4:3 operation: 802.3at PoE+ Enhanced PoE, Universal PoE (UPOE) 3 x 3:3 operation: 802.3af PoE
Antenna	External Antenna
Regulatory Domain	H (H regulatory domain): – 2.412 to 2.472 GHz; 13 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels
Dimensions (W x L x H)	22.1 x 22.1 x 5.4 cm (without mounting bracket)
Package Weight	1.72 Kg

The Accessories

Table 2 shows the recommended accessories.

Accessories

Models

Description

Ethernet Switch Power Injectors

AIR-PWRINJ4=

Cisco AP power option AIR-PWRINJ4 Power Injector

– AP1140/1250/1260/3500/1600/1700/2600/2700/3600/3700 Series

Local Power supply

AIR-PWR-B

Cisco AP power option PwrSpply:100-240VAC,48VDC

Compare to Similar Item

Table 3 shows the comparison between two APs.

Models	AIR-CAP3702E-H-K9	AIR-CAP3702I-H-K9
WiFi Standards	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Antenna	External Antenna	Internal Antenna
Controller Available	Yes	Yes
Max Data Rate 5GHz	1.3 Gbps	1.3 Gbps
MIMO Radio Design: Spatial Streams	4 x 4:3	4 x 4:3
Regulatory Domain	H (H regulatory domain): – 2.412 to 2.472 GHz; 13 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels	H (H regulatory domain): – 2.412 to 2.472 GHz; 13 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels

SKU: AIR-CAP3702E-H-K9 Category: Wireless Access Points AP Tag: AIR-CAP3702E-H-K9

AIR-CAP3702E-H-K9 Specification

AIR-CAP3702E-H-K9 Specification
Product Description	Cisco Aironet 3700 Series Access Points with External antennas
Devide Type	Wireless Access point
Regulatory domain	H regulatory domain
Supported wireless LAN controllers	● Cisco 2500 Series Wireless Controllers, ● Cisco Wireless Controller Module for ISR G2 ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches ● Cisco 5500 Series Wireless Controllers ● Cisco Flex 7500 Series Wireless Controllers ● Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco 5760 Wireless LAN Controller ● Cisco Catalyst 3850 Series Switches ● Cisco Catalyst 3650 Series Switches
Software	Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 7.6 or later for the Cisco Aironet 3700 Series Access Point ● 7.6 or later for support of the Wireless Security Module for the 3700 Series Access PointCisco IOS XE Software Release: ● 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point ● Wireless Security Module for the 3700 Series Access Point support – (T arget 1HCY15)
Data rates supported	● 802.11a: up to 54 Mbps ● 802.11g: up to 54 Mbps
Maximum number of nonoverlapping channels	5 GHz ● 802.11a: ◦ 20 MHz: 21 ● 802.11n: ◦ 20 MHz: 21 ◦ 40 MHz: 9 ● 802.11ac: ◦ 20 MHz: 21 ◦ 40 MHz: 9 ◦ 80 MHz: 4 ● 802.11n on 2.4 GHz: up to 216.7 Mbps ● 802.11ac on 5 GHz: up to 1.3Gbps 2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3
Antenna	2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
Interfaces	● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45)
System memory	● 512 MB DRAM ● 64 MB flash
Module options	Cisco Aironet Wireless Security Module Cisco Universal Small Cell 5310
Power consumption	No external module installed, 4×4:3 on 2.4/5 GHz : 16.1 Watts with wireless Security module, 4×4:3 on 2.4/5 GHz +WSM: 19.6 Watts No external module installed, 3×3:3 on 2.4/5 GHz : 15.4 Watts with wireless Security module, 2×2:2 on 2.4/5 GHz +WSM: 15.4 Watts
IEEE standards	IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security	● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ● 802.1X ● IEEE 802.11ac Draft 5 ● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
Extensible Authentication Protocol (EAP) types	● EAP-Transport Layer Security (TLS) ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ● EAP-Flexible Authentication via Secure Tunneling (FAST) ● PEAP v1 or EAP-Generic Token Card (GTC) ● EAP-Subscriber Identity Module (SIM)
Frequency band and 20-MHz operating channels	H (H regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.150 to 5.350 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels
Environmental	● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% percent (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
