AKG WMS 470 Sports Set Wireless Headworn Microphone System

Add to Wishlist

2,999.00 د.إ

Add to Wishlist
Key Features
  • Band 8 / 570.1 – 600.5MHz
  • SR470 Diversity Receiver
  • PT470 Bodypack Transmitter
  • C 544 L Headworn Microphone

AKG Sports Set Overview

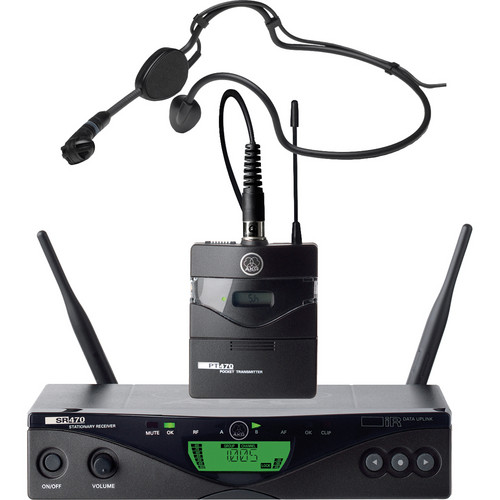

The AKG WMS 470 Sports Set Wireless Headworn Microphone System delivers quality, reliable wireless transmission, flexible features and intuitive control for cable-free guitar playing and other instruments on stage. The WMS 470 Sports Set consists of the SR470 diversity receiver, PT470 bodypack transmitter and C 544 L headworn microphone. The C 544 L headworn microphone features a rugged headband that wraps behind the neck. Its moisture shield protects the cardioid element from perspiration and humidity, making it an ideal choice for aerobics instruction, coaches and more.

Users can select up to 1200 frequencies across the 30MHz tuning range. This also allows for operation of up to 20 channels simultaneously within the same frequency band or up to 48 channels in multiple bands.

Automatic setup allows for quick and easy configuration to those who are less familiar with operating wireless microphone / instrument systems. Infrared sync between the transmitter and receiver allows for remote channel syncing. The transmitter omits 50mW of output power, is lightweight and operates for up to 14 hours on a single AA (lithium) battery. Additional features include all-metal receiver construction, balanced and unbalanced audio outputs and up to 16 pre-programmed frequencies per group over the 30.5 MHz tuning range.

30.5 MHz tuning range
Half 19″ all metal case diversity receiver
Automatic setup function designed for less experienced operators
Up to 16 pre-programmed frequencies per group
Pilot Tone prevents unexpected start-up noise
Infrared link of all frequency and setup data to the transmitter
Transmitter battery status monitoring
Programmable warning functions using a two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omnidirectional antennas
SKU: 3308H00380 Category: Tag:

AKG Sports Set Specs

Receiver
Frequency Range Band 8 / 570.1 – 600.5MHz
Switching Bandwidth -/< 30.5MHz (country dependent)
Sensitivity 6.3 dBV / -100dBm
Diversity Circuitry Microprocessor-controlled diversity
Modulation Wideband FM
Audio Bandwidth 35 – 20,000Hz (±3dB)
THD -/< 0.3%
Signal-to-Noise Ratio typ. 120 dB(A)
Audio Outputs 1 x XLR sockets balanced
1 x TS 1/4″ (6.3mm) jack sockets unbalanced
Dimensions 1/2 19inch 1U rack
7.8 x 1.7 x 7.4″ (202 x 44 x 190mm)
Weight 2.2 lb (972g)
Transmitter
Switching Bandwidth -/< 30.5 MHz (country dependent)
RF Output Power 10 or 50mW (ERP, country dependent)
Modulation Wideband FM
Audio Input TB3M / 3-pin mini-XLR socket (max. 2.5Vrms)
Audio Bandwidth 35 – 20 000Hz (± 3dB)
THD -/< 0.7%
Signal-to-Noise Ratio > 120 dB(A)
Battery Life -/< 7 hours with one 1.5 V LR6 AA alkaline battery
-/< 8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh)
-/< 14 hours with one 1.5 V FR6 AA lithium battery
Dimensions 2.4 x 2.9 x 1.2″ (60 x 73.5 x 30mm)
Weight 3.2 oz (90g)
