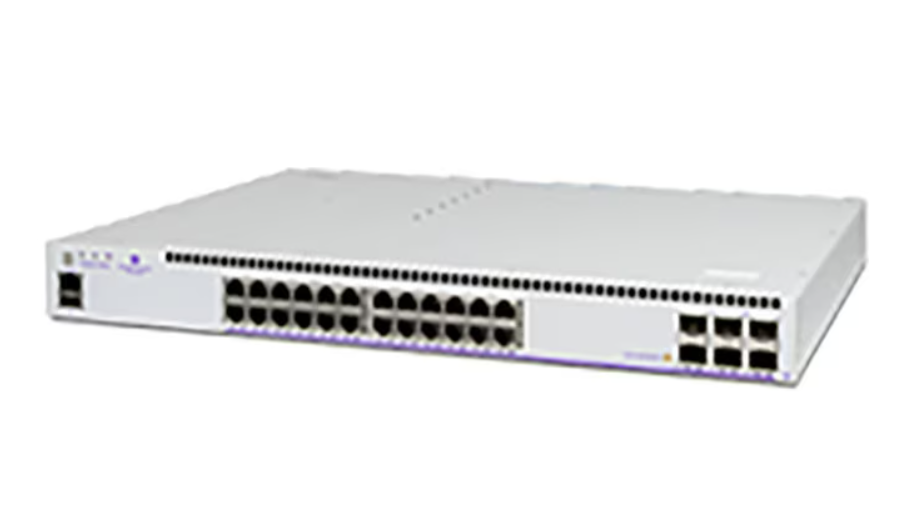

Alcatel Lucent OmniSwitch 6560 24x4GigE, 24xRJ-45 10/100/1G Port Ethernet Switch – US


Quick tech specs

  • 24x 10/100/1000 RJ-45 Port
  • Fixed Internal AC Primary Power
  • Provides Outstanding Performance
  • 4x 1GE/10GE SFP+ Uplink/Stacking Port
  • Modular Internal AC/DC Backup Power
  • OmniVista Cirrus Powers a Secure,Resilient and Scalable Cloud-based Network Management

23,299.00 د.إ

Know your gear

SKU: OS6560-24X4-US Category: Tag:
Category Specification
Overview
Brand Alcatel-Lucent
Product Line Alcatel-Lucent OmniSwitch
Model 6560
Manufacturer Alcatel Internetworking
Memory
Flash Memory Installed 1 GB
RAM Installed 1 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 1 fan, Access Control List (ACL) support, ARP detect, Auto-discovery, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bidirectional Forwarding Detection (BFD), BOOTP support, CPU protection, DHCP client, DHCP relay, DHCP snooping, DHCPv4 server, DHCPv6 server, Digital Diagnostics Monitoring (DDM), Dying Gasp support, Ether Ring Protection (ERP), Flow-based QoS, IGMP snooping, In-Service Software Upgrade (ISSU), IP source guard, JSON and XML (Web Services) APIs, Learned port security (LPS), Loopback, MAC address lockout, MAC address-based authentication, MACsec support, Media Endpoint Discover (MED), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Network Timing Protocol (NTP), Per-VLAN Spanning Tree Plus (PVST+), Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, RESTful APIs, sFlow v5, Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Unidirectional Link Detection (UDLD), User Network Profile (UNP), Virtual Chassis technology, Virtual Route Redundancy Protocol (VRRP) support, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16K entries
Manageable Yes
Max Units In A Stack 8
Ports 24
Product Type Switch
Remote Management HTTP, HTTPS, SCP, SFTP, SNMP 1, SNMP 2, SNMP 3, Telnet, TFTP
Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPFv2, OSPFv3, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing
Stackable Stackable
Status Indicators Link/activity, Power, System, Virtual chassis
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Connectivity
Interface Provided 1 x console RJ-45, 1 x USB Type A, 2 x 1000Base-X SFP+, 24 x 10/100/1000 Base-T RJ-45, 4 x 1/10Gbit LAN SFP+ uplink/stacking
Port Quantity 24
Port Type 10/100/1000
Ports Type (2nd) 1 Gigabit Ethernet SFP+
Power
Power Consumption Operational 36 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Redundant Power Supply Supported 1+1 (with optional power supply)
Technical Information
Encryption ESP, HMAC, MD5, PKI
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 185 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 372,000 Hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method Extensible Authentication Protocol (EAP), LDAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Capacity Multicast groups: up to 1000, Policies: up to 1500, Virtual interfaces (VLANs): 4000
Country United States
Device Type Internal power supply
Packaged Quantity 1
Performance Latency: < 4 µs, Stacking capacity (each): 40 Gbps, Stacking capacity (total): 320 Gbps, Switching ASIC capacity: 168 Gbps, Switching capacity: 168 Gbps, Throughput: 125 Mpps
Ports (2nd) Quantity 2
Ports (3rd) Quantity 4
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 10.36 lbs
Width 17.3 inch
Depth 13.8 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards ANATEL, AS/NZ TS-001, AS/NZS 3548 Class A, BSMI, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CCC, CDRH, EAC, EN 50581, EN 55024:2010, EN 60825-1, EN 60825-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55022, FCC CFR47 Part 15 B Class A 2015, ICES-003:2012 Issue 5 Class A, IEC 60950-1, IEC 62368-1, KCC, NOM-019-SCFI, RoHS, UL 60950-1 Second Edition, UL-AR, UL-GS, VCCI Class A, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
