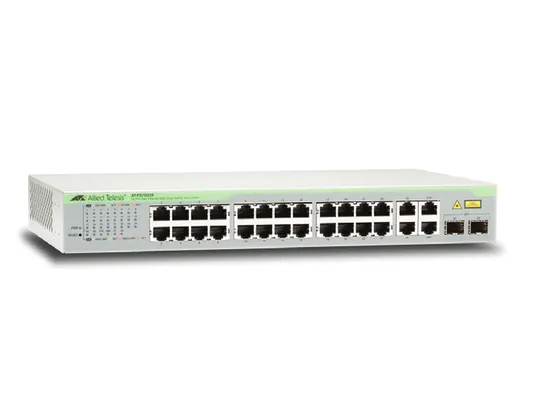

Allied Telesis AT-FS750/28-50 Managed Fast Ethernet (10/100) 1U Grey
24 Port Fast Ethernet WebSmart Switch with 4 uplink ports (2 x 10/100/1000T and 2 x SFP-10/100/1000T Combo ports)
د.إ1,299.00
Highlights
These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.
| Feature | Specification |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| System event log | Y |
| MIB support | RFC 1213 MIB-II, RFC 1643 Ethernet MIB, RFC 1493 Bridge MIB, RFC 2131 DHCP client, Private Enterprise MIB |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Networking standards | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | N |
| Port mirroring | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| MAC address table | 8000 entries |
| Switching capacity | 12.8 Gbit/s |
| Number of queues | 4 |
| Jumbo frames support | Y |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| DHCP features | DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| MAC address filtering | Y |
| Authentication | MAC-based authentication |
| Multicast support | Y |
| Number of multicast groups filtered | 256 |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Grey |
| Harmonized System (HS) code | 85176990 |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (max) | 8.7 W |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 – 40 °C |
| Width | 330 mm |
| Depth | 18 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
| Cables included | AC |
