AMT Q7-ACCW DUAL Quantum 7 Wireless System for Accordion (Right, Left Hands)


AED5,099.00

Key Features
  • 900 MHz Frequency Band
  • For Accordion Instruments
  • ACCR Dual Microphones for Right Hand
  • ACCL Single-Setup Mic for Left Hand
  • Dual-Channel Wireless Receiver
  • Transmitters for Left and Right Hands
  • Includes Cables and Hardware

AMT Quantum 7Ā Overview

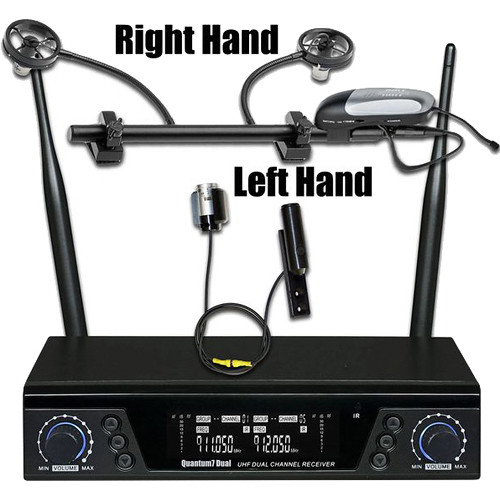

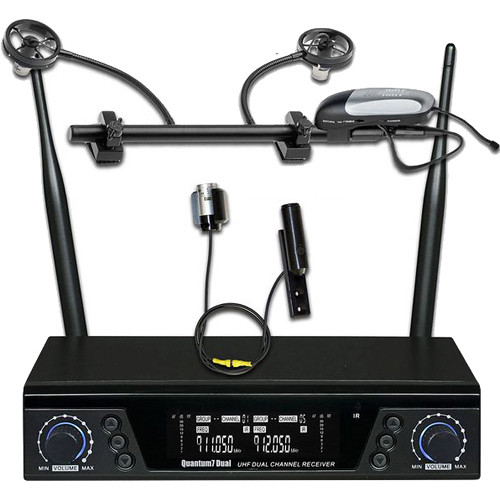

TheĀ Q7-ACCW DUAL Quantum 7 Wireless System for AccordionĀ fromĀ AMTĀ includes an ACCR dual microphone for the right hand, ACCL single microphone for left hand, a Q7 dual-channel wireless system receiver, two transmitters, hardware for installation, and connection cables. This kit can be used to capture audio for an accordion instrument in live stage, theater, recording, and rehearsal applications.

The volume of both transmitters can be controlled from the receiver or separately on a mixing board console. The ACCR dual mic is balanced for the accordion and allows the lower bassoon reeds to stand out from the higher volumes that the clarinet and piccolo reeds can produce.

The ACCL mic installs into the left-hand side of the accordion with the included hardware without a need to open the bellows. It is installed by removing the bass strap and cover and is placed inside, near the bass machine, with a cable and connector placed on the outside of the accordion instrument.

Additionally, the wireless system is capable of dual-channel transmission and allows for the Q7 transmitters to send the right- and left-hand signals at the same time to a single, 1/2 space rack, dual-channel receiver and offers a 300′ range in the 900 MHz frequency band. The receiver is equipped with dual XLR outputs, which allows discrete control of the right- and left-hand volume at a mixing board.

Easy to install

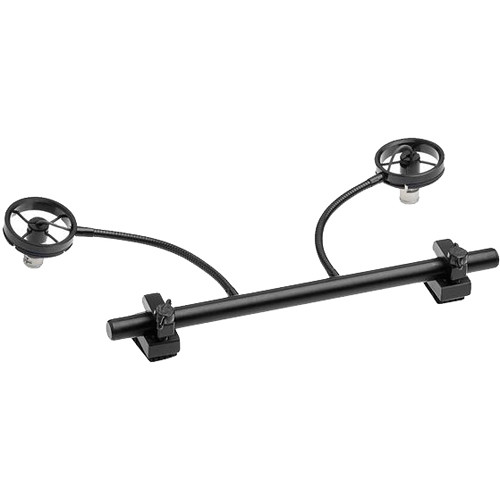

Right-hand microphone mounts to pillow blocks for easy removal after use. Pillow blocks mount to instrument with dual-lock, touch-tab fasteners or optional set screws for a more permanent installation
The ACCL is installed by simply removing the bass strap and cover. It is placed inside near the bass machine with a cable and connector placed on the outside of the accordion where convenient

AMT Quantum 7Ā Specs

System
Wireless Transmission Analog UHF (900 MHz)
Number of RF Channels 100
Included Transmitters 2 xĀ Clip-On with Microphone
Diversity True Diversity
RF Frequency Band 902 to 928 MHz
RF Bandwidth Up to 30 MHz
Max Operating Range 328.1′ / 100Ā m
Dynamic Range >95 dB
Encryption Yes

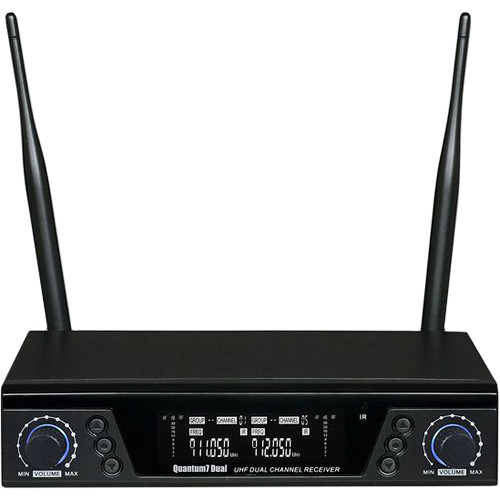

Receiver
Form Factor Rackmount
Mounting Options Rackmount, Tabletop
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 xĀ 1/4 Wave Telescopic, Fixed
Number of Audio Channels 2
Audio I/O 2 xĀ XLR 3-Pin Male Balanced Line Output
Frequency Response 40 Hz to 15 kHz ±3 dB
Word Clock I/O None
Approximate RF Sensitivity 5 dBuV
Power Requirements AC/DC Power Adapter
Display & Indicators 1 xĀ Backlit LCD (AF Level, Channel, RF Level)
Housing Metal
Transmitter 1

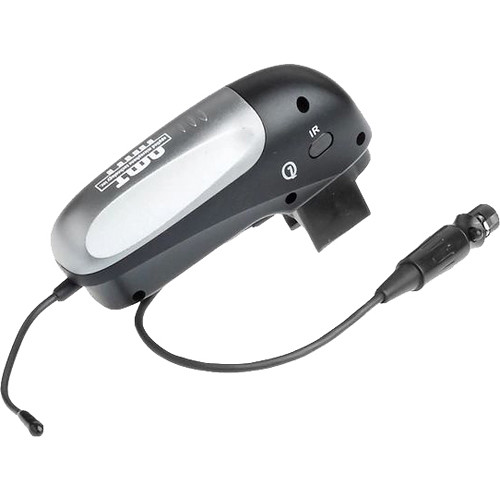

Transmitter
Form Factor Clip-On with Microphone
RF Output Power 10 mW
Audio I/O 1 xĀ TA3/Mini XLR 3-Pin Female Input
Sync Method IR
Antenna 1 xĀ 1/4 Wave Wire
Power Requirements Battery
Battery Type 1 xĀ AA (Not Included)
Approx. Battery Life 10 Hours (Alkaline)
Housing ABS
Dimensions 4.5 x 2.4 x 1″ / 115 x 62 x 25Ā mm
Microphone
Form Factor Clip-On Instrument
Instrument Mic Type Accordion
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Transmitter 2
Form Factor Clip-On with Microphone
RF Output Power 10 mW
Audio I/O 1 xĀ TA3/Mini XLR Input
Sync Method IR
Antenna 1 xĀ 1/4 Wave Wire
Power Requirements Battery
Battery Type 1 xĀ AA (Not Included)
Approx. Battery Life 10 Hour (Alkaline)
Display & Indicators 1 xĀ Backlit LCD
Housing ABS
Dimensions 4.5 x 2.4 x 1″ / 115 x 62 x 25Ā mm
Microphone 2
Form Factor Clip-On Instrument
Instrument Mic Type Accordion
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Output Connectors 1 xĀ TA3/Mini XLR
