AMT Q7-LS Dual Wireless System for Saxophone (900 MHz)


4,599.00 د.إ

Key Features

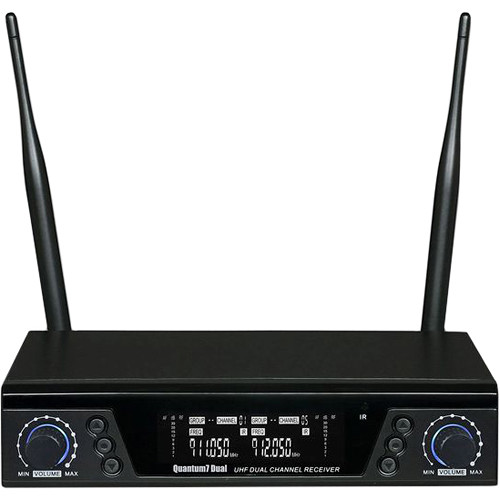

  • Dual-Channel Diversity Receiver

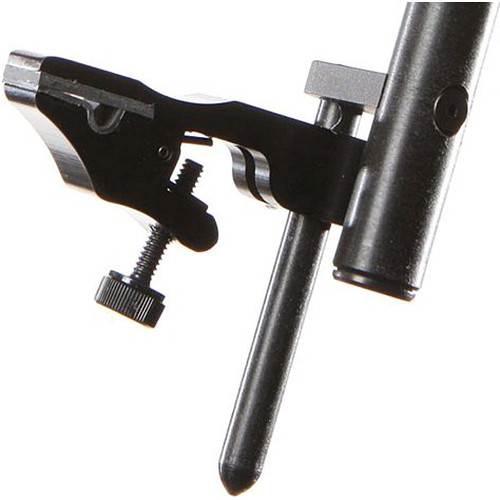

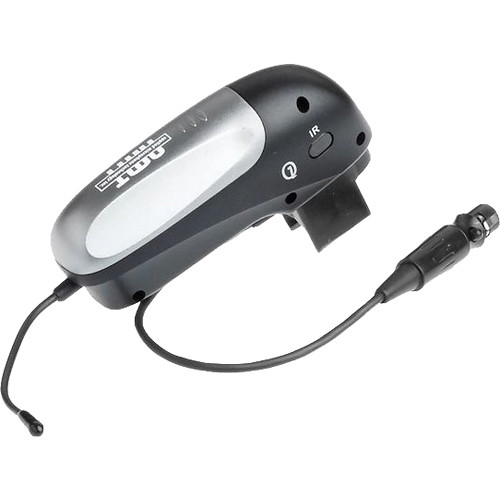

  • Q7C Clip-On Transmitter

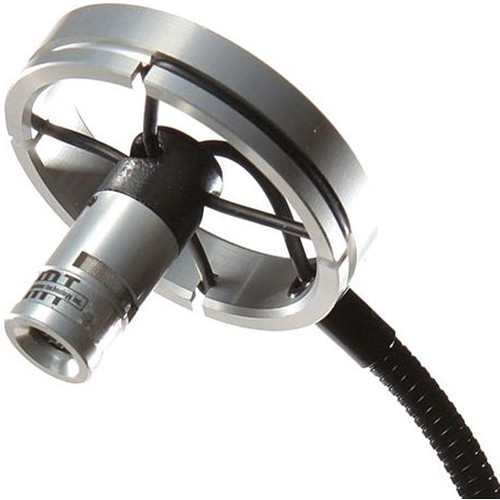

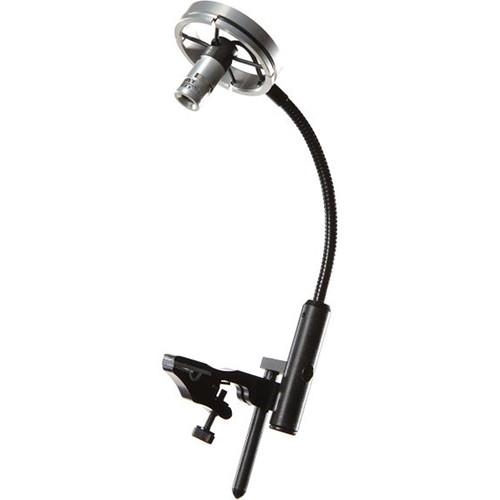

  • LS Saxophone Microphone
  • Transmitter Runs on Single AA Battery
  • LCD Display or RF and AF Signals
  • 300′ Range, 900 MHz
  • 100 Preset Adjustable Frequencies
  • 1/2 Unit Metal Chassis
  • Rack Mountable

AMT Quantum 7Ā Overview

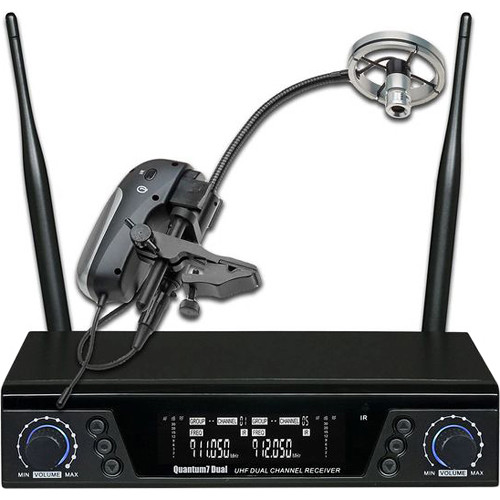

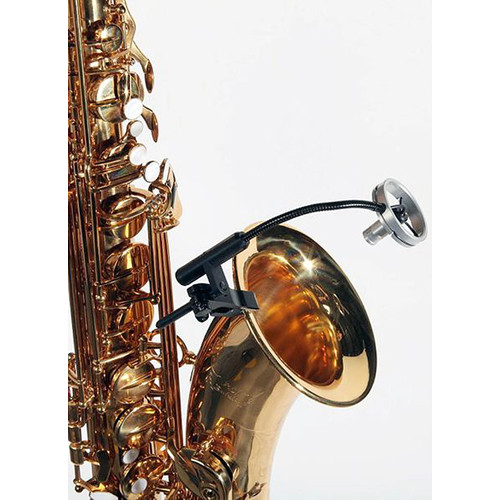

TheĀ Q7-LS Dual Wireless System for SaxophoneĀ fromĀ AMTĀ includes a Quantum 7 dual-channel diversity receiver, a Q7C clip-on transmitter, an LS Sax microphone, rack ears, and extension cables. This wireless system can be used to capture audio for saxophone in live stage, theater, recording, and rehearsal applications.

The AMT Quantum 7 is a high-quality system designed for musical instruments and features 100 channels to choose from (region dependent). It is simple to use and provides professional-quality sound. Clip on the transmitter to create an operating environment free of beltpacks and wires. The receiver allows wireless reception up to 300′ in the 900 MHz frequency range.

In addition, the Quantum 7 Dual receiver is constructed with a rugged metal chassis and includes both 1/4″ and XLR outputs. Other features include an LCD display of RF (radio frequency) and AF (audio frequency), IR sync from receiver to transmitter, and large analog style volume controls for quick access. The system includes high-quality transient response, no delay, no background noise, with multi-level narrow band filter technology.

True diversity
Transmitter powered by one AA battery
Quantum 7 Dual receiver includes heavy-duty metal chassis with rack ears
100 channels, region dependent, with up to 30 MHz bandwidth
Compatible with all AMT instrument microphones
Remove transmitter to convert microphone to a wired setup
Wireless operation without a bodypack
PLL frequency stabilization system
IR sync from receiver to transmitter
LCD display of radio frequency (RF) and audio frequency (AF)

AMT Quantum 7Ā Specs

System
Wireless Transmission Analog UHF (900 MHz)
Number of RF Channels 100
Included Transmitters 1 xĀ Clip-On with Microphone
Diversity True Diversity
RF Frequency Band 902 to 928 MHz
RF Bandwidth Up to 30 MHz
Max Operating Range 328.1′ / 100Ā m
Encryption Yes
Receiver
Form Factor Rackmount
Mounting Options Rackmount, Tabletop
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 xĀ 1/4 Wave Flexible Whip, BNC
Number of Audio Channels 2
Audio I/O 2 xĀ XLR 3-Pin Male Balanced Line Output
1 xĀ 1/4″ TS Female Unbalanced Line Output
Frequency Response 60 Hz to 17 kHz ±3 dB
Power Requirements AC/DC Power Adapter
Display & Indicators 1 xĀ Backlit LCD (AF Level, Channel, RF Level)
Housing Metal
Operating Temperature 14 to 122°F / -10 to 50°C
Dimensions 8.3 x 1.7 x 6.7″ / 210 x 44 x 170Ā mm
Transmitter 1
Transmitter
Form Factor Clip-On
RF Output Power 10 mW
Audio I/O 1 xĀ TA3/Mini XLR 3-Pin Female Input
Sync Method IR
Antenna 1 xĀ 1/4 Wave Wire
Power Requirements Battery
Battery Type 1 xĀ AA (Not Included)
Approx. Battery Life 10 Hours (Alkaline)
Housing ABS
Dimensions 4.5 x 2.4 x 1″ / 115 x 62 x 25Ā mm
Microphone
Form Factor Integrated
Instrument Mic Type Saxophone
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Output Connectors 1 xĀ TA3/Mini XLR
Packaging Info
Package Weight 8.48 lb
Box Dimensions (LxWxH) 17.8 x 13.8 x 12.3″
