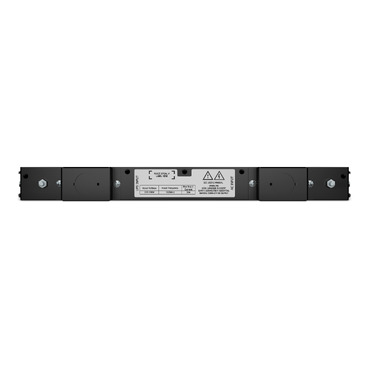

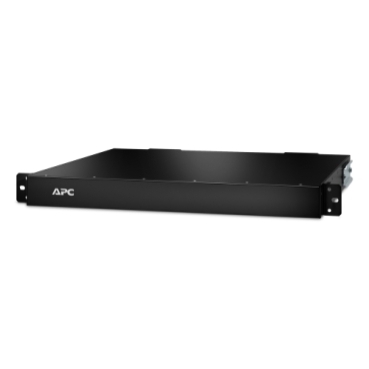

APC 5kVA and 6kVA Marine Filter

Add to Wishlist

AED7,999.00

Add to Wishlist
Category Specification
Overview High availability, ruggedized power protection for shipboard and other transportation applications
Lead Time Usually in Stock

Main Specifications

Feature Specification
Product or Component Type Filter
Main Input Voltage 200 V, 208 V, 220 V, 230 V, 240 V
Main Output Voltage 200 V, 208 V, 220 V, 230 V, 240 V
Other Output Voltage 208 V, 220 V, 230 V, 240 V
Output Connector Type 1 × Hard Wire 3-wire (H N + E)
Connections – Terminals 2 screw terminal
Number of Rack Units 1U
Provided Equipment Installation guide, Mounting hardware, User manual

Environmental Specifications

Feature Specification
Operating Temperature 32–131 °F (0–55 °C)
Operating Relative Humidity 0–95%
Operating Altitude 0–10,000 ft
Storage Temperature -13–167 °F (-25–75 °C)
Storage Relative Humidity 0–95%
Storage Altitude 0–50,000 ft (0–15,240 m)

Physical Characteristics

Feature Specification
Color Black
Height 1.73 in (4.4 cm)
Width 19.02 in (48.3 cm)
Depth 12.99 in (33 cm)
Weight 14.84 lb (6.73 kg)
Mounting Location Front
Mounting Preference No preference
Mounting Mode Not rack-mountable
Mounting Position Horizontal

Input Specifications

Feature Specification
Input Frequency 45–65 Hz
Line Rated Current 50 A
Number of Input Connectors 1 × Hard Wire 3-wire
Acceptable Input Voltage 100–240 V
Max Line Current 50 A
Input Current Limits 50 A
Load Capacity 6000 VA

Output Specifications

Feature Specification
Maximum Total Current Draw per Phase 50 A

Conformance

| Certifications | DNV |
