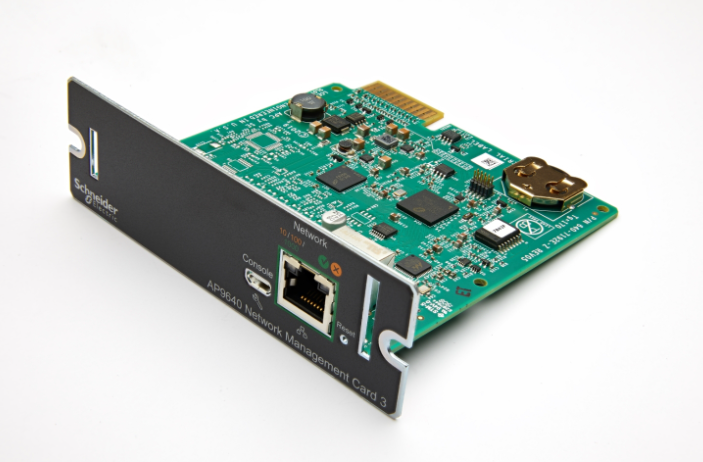

APC AP9640 UPS Network Management Card 3, EN 55022 class A Standard, altitude up to 10,000 ft, Relative humidity up to 95%, Authentication via Radius

A Direct Connection to Your APC UPS

APC UPS Network Management Card 3 (NMC3) allows for secure remote monitoring and control of an individual APC UPS via a web browser, command line interface of SNMP. The configurable notification features keep you informed of problems as they occur.

Software Included with Scheduling

For protected servers, the included Powerchute™ Network Shutdown software provides graceful, unattended shutdown in the event of a power outage(certified Vmware Ready, Nutanix Ready, Nutanix-AHV Ready).

Advanced Security Features

Keep your sensitive data secure with the newest compliance offerings including stricter credentials and force password policy configurations, EAPoL (Extensible Authentication Protocol over LAN) architecture used in IEEE 802.1x port-based network access control, secure access SSH, HTTPS (TLS 1.2), secure email authentication, 3-tier user access, secure file transfer (SCP), 2048 bit encryption key support (SSH/web).

Updated Performance

A new processor, Low Cost Ethernet Solution (LCES) provides a faster, more powerful experience. 1Gigabit ethernet connection (RJ-45 10/100/1000 Base-T), RADIUS support for centralized user management, simultaneous multiple user logins.

Enhanced Storage and Ease-of-Use

Extended memory space to accommodate increased event and data log storage with 100x event log and data logs, pre-loaded multiple language support, and micro USB based console.

EcoStruxure™ IT Integration

Monitor and manage your equipment more efficiently. The vendor-neutral architecture delivers a new standard for proactive insights on critical assets of an IT environment.

Easily Enable Notifications

Be notified of problems ensuring crucial situations are dealt with in a timely manner.

Review Data and Event Logs

Identify problematic trends before they escalate or export logs for analysis. Pinpoint timing and sequence of events leading up to an incident with event log.

Network Management System (NMS) Compatible

Make device information available to your preferred NMS by forwarding SNMP traps (events) or polling across SNMP (v1/v2c/v3) using the PowerNet MIB.

Package Includes

Network Management Card, USB cable, User manual
