UPS , Power Back up and accessories

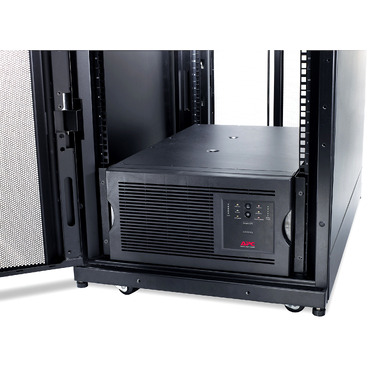

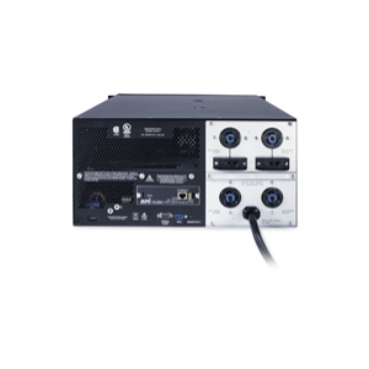

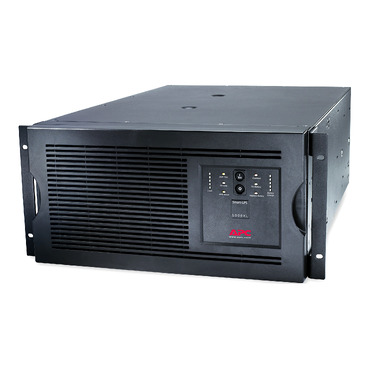

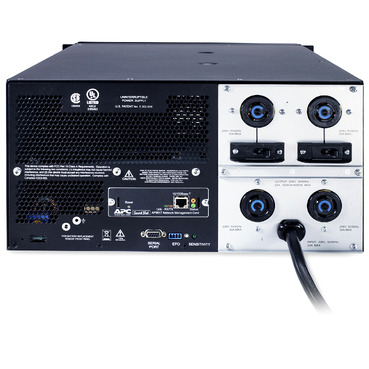

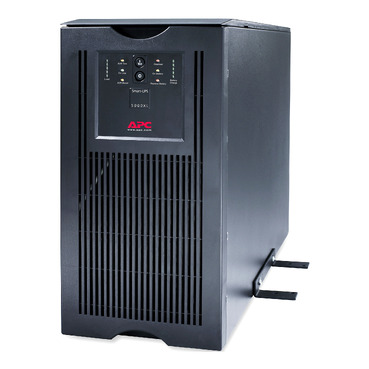

APC Smart-UPS 5000VA 208V Rackmount/Tower
- Intelligent and efficient network power protection from entry level to scalable runtime. “
- “Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.”
- “Provides remote management of the UPS over the network.”
- “LED status indicators Quickly understand unit and power status with visual indicators”
AED32,299.00
The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It supports 208V input and output, and includes multiple output connections such as 2 NEMA L6-20R and 2 NEMA L6-30R. The UPS uses lead-acid batteries and features a SmartSlot for additional management options.
Overview
| Feature | Description |
|---|---|
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, POS, routers, switches, hubs, and other network devices. |
| Lead Time | Usually Ships within 3 Weeks |
Main
| Feature | Description |
|---|---|
| Product or Component Type | Uninterruptible Power Supply (UPS) |
Complementary
| Feature | Description |
|---|---|
| Communication Port | SmartSlot |
Batteries & Runtime
| Feature | Description |
|---|---|
| Battery Type | Lead-Acid battery |
| Extendable Run Time | No (0) |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 2 |
| Battery Life | 3–5 years |
| Replacement Battery | RBC55 |
| Battery Charge Power | 542 W rated |
| Runtime Graph | Available (external) |
| Efficiency Graph | Available (external) |
General
| Feature | Description |
|---|---|
| Provided Equipment | CD with software, Support rails, RS-232 cable, User Manual, Web/SNMP Management Card |
| Number of Power Modules | 0 |
| Power Module Slots Filled | 0 |
| Power Module Slots Free | 0 |
| Redundant | No |
Physical
| Feature | Description |
|---|---|
| Number of Rack Units | 5U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 8.74 in (22.2 cm) |
| Width | 19.02 in (48.3 cm) |
| Depth | 25.98 in (66 cm) |
| Net Weight | 215.46 lb (97.73 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No (0) |
| USB Compatible | No |
Input
| Feature | Description |
|---|---|
| Main Input Voltage | 208 V |
| Input Connection Type | NEMA L6-30P |
| Input Voltage Range | 131–268 V (adjustable), 141–255 V |
| Input Frequency | 50/60 Hz ± 5 Hz (manual switch) |
Output
| Feature | Description |
|---|---|
| Main Output Voltage | 208 V |
| Power Rating (Watts) | 4000 W |
| Power Rating (VA) | 5000 VA |
| Output Connection Types | 2 NEMA L6-20R, 2 NEMA L6-30R |
| Harmonic Distortion | < 5% at full load |
| Max Configurable Power (Watts) | 4000 W |
| Max Configurable Power (VA) | 5000 VA |
| Transfer Time | 2 ms typical, 4 ms maximum |
| Topology | Line Interactive |
| Wave Type | Sine Wave |
| Output Frequency (sync to mains) | 47–53 Hz for 50 Hz / 57–63 Hz for 60 Hz |
Conformance
| Feature | Description |
|---|---|
| Product Certifications | CSA |
| Equipment Protection Policy | Lifetime: $150,000 |
Environmental
| Feature | Description |
|---|---|
| Acoustic Level | 53 dBA |
| Online Thermal Dissipation | 344 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–113 °F (0–45 °C) |
| Storage Temperature | 23–131 °F (-5–55 °C) |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Relative Humidity (Operating & Storage) | 0–95 % |
