UPS , Power Back up and accessories

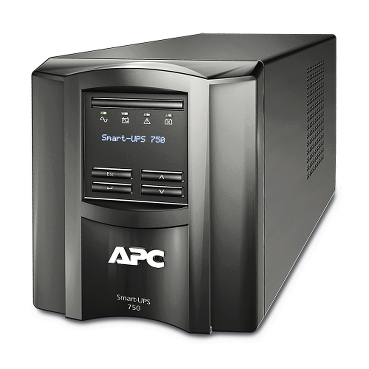

APC Smart-UPS 750VA 120V SHIPBOARD

750VA load capacity, work without any interruption during power outages

Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions

Provides enhanced protection in shipboard environments

Provides quick access and control of the UPS in case of an emergency

AED6,799.00

The APC Smart-UPS 750VA 120V Shipboard (SMT750X93) is a robust and reliable uninterruptible power supply (UPS) designed specifically for marine and shipboard applications. This UPS ensures continuous power supply during outages, protecting critical equipment and preserving data integrity. With naval ready features shipboard UPSs provide clean, reliable, and battle-ready performance.

SKU: SMT750X93 Category: UPS , Power Back up and accessories Tag: SMT750X93

Product Overview

Attribute	Details
Lead Time	Usually in Stock

Main Specifications

Attribute	Details
Product or Component Type	Uninterruptible Power Supply (UPS)

Batteries & Runtime

Attribute	Details
Efficiency	View Efficiency Graph
Battery Type	Lead-Acid battery
Extendable Run Time	0
Included Battery Modules	0
Battery Slots Empty	0
Typical Recharge Time	3 h
RBC Quantity	1
Battery Life	3–5 years
Battery Charge Power (Watts)	15 W rated

General Information

Attribute	Details
Provided Equipment	User Manual
Number of Power Modules	0
Product Web Sub-Family	TAA Compliance
Redundant	No

Physical Characteristics

Attribute	Details
Number of Cables	1
Height	6.3 in (161 mm)
Width	5.4 in (138 mm)
Depth	14.5 in (369 mm)
Net Weight	27.6 lb (12.5 kg)
Mounting Location	Front
Mounting Preference	No preference
Mounting Mode	Not rack-mountable
Two Post Mountable	0
USB Compatible	Yes

Input Specifications

Attribute	Details
Main Input Voltage	120 V
Input Connection Type	NEMA 5-15P
Efficiency at Full Load	82…144 V 120 V
Input Frequency	50/60 Hz ± 3 Hz

Output Specifications

Attribute	Details
Main Output Voltage	120 V
Power Rating	500 W / 750 VA
Output Connection Type	6 × NEMA 5-15R
Harmonic Distortion	< 5%
Max Configurable Power	500 W / 750 VA
Transfer Time	6 ms typical / 10 ms max
Topology	Line Interactive
Wave Type	Sine Wave
Output Frequency (Sync to Mains)	50/60 Hz ± 3 Hz (for 60 Hz nominal)
Full Load Runtime	5 minutes
Half Load Runtime	15 minutes

Conformance & Certifications

Attribute	Details
Product Certifications	CSA C22.2 No 107.1
Marking	UL

Environmental Conditions

Attribute	Details
Acoustic Level	41 dBA
Online Thermal Dissipation	90 Btu/h
Operating Altitude	0–9842.52 ft (0–3000 m)
Operating Temperature	32–104 °F (0–40 °C)
Storage Temperature	-4–131 °F (-20–55 °C)
Storage Altitude	0–49212.6 ft (0–15000 m)
Relative Humidity (Operating/Storage)	0–95%
