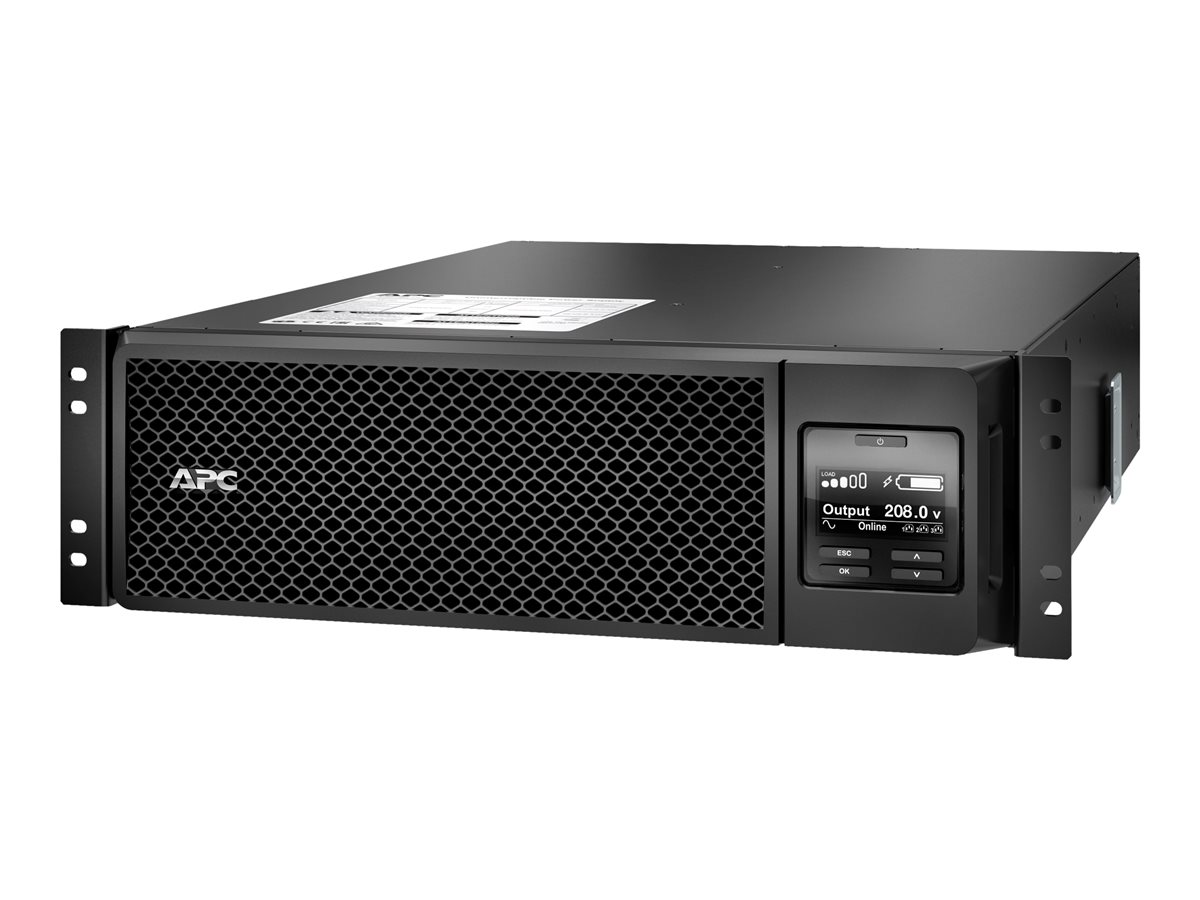

APC SRT5KRMXLI 3U 4500W SRT 5000VA Smart-UPS RM 230V UPS


د.إ9,999.00

Want create site? Find Free WordPress Themes and plugins.

APC SRT5KRMXLI Smart-UPS SRT 5000VA RM 230V

LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.

Key Features

  • Green mode
  • Battery failure notification
  • LCD graphics display
  • ECO Mode
  • 10/100 BaseT Connection

Product Features

  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • 10/100 BaseT Connection
    Connect the device to a network using a 10 or 100 BaseT connection
Did you find apk for android? You can find new Free Android Games and apps.
Weight54.55 kg
Dimensions19 × 17 × 3.3 cm
Want create site? Find Free WordPress Themes and plugins.

Output

Output power capacity 4.5 KWatts / 5.0 kVAMax Configurable Power (Watts) 4.5 KWatts / 5.0 kVANominal Output Voltage 230VOutput Voltage Distortion Less than 2%Output Frequency (sync to mains) 50/60Hz +/- 3 HzOther Output Voltages 220, 240Load Crest Factor 3 : 1Topology Double Conversion OnlineWaveform type Sine waveOutput Connections
(6) IEC 320 C13 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Bypass Internal Bypass (Automatic and Manual)
Input

Nominal Input Voltage 230VInput frequency 40 – 70 Hz (auto sensing)Input Connections Hard Wire 3 wire (1PH+N+G)Input voltage range for main operations 160 – 275VInput voltage adjustable range for mains operation 100 – 275 (half load)VOther Input Voltages 220, 240
Batteries & Runtime

Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproofTypical recharge time 1.5hour(s)Replacement BatteryAPCRBC140 Expected Battery Life (years) 3 – 5RBC Quantity 1Extendable Run Time 1Battery Volt-Amp-Hour CapacityAPC-Smart-UPS-SRT-5000VA-RM-230V Extended Run OptionsRuntimeView Runtime Graph View Runtime Chart EfficiencyView Efficiency Graph
Communications & Management

Interface Port(s) RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USBControl panel Multi-function LCD status and control consoleAudible Alarm Audible and visible alarms prioritized by severityEmergency Power Off (EPO) YesAvailable SmartSlot™ Interface Quantity 1
Surge Protection and Filtering

Surge energy rating 480Joules
Physical

Maximum Height 130mm , 13.0cmMaximum Width 432mm , 43.2cmMaximum Depth 719mm , 71.94cmRack Height 3UNet Weight 54.43kgShipping weight 66.86kgShipping Height 330mm , 33.0cmShipping Width 610mm , 61.0cmShipping Depth 960mm , 96.0cmColor BlackUnits per Pallet 6.0
Environmental

Operating Environment 0 – 40 °C Operating Relative Humidity 0 – 95% non-condensing % Operating Elevation 0-3000metersStorage Temperature -15 – 45 °C Storage Relative Humidity 0 – 95% non-condensing % Storage Elevation 0-15000metersAudible noise at 1 meter from surface of unit 55.0dBAOnline thermal dissipation 931.0BTU/hrProtection Class IP 20
Conformance

Approvals CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), IRAM, RCM, VDEStandard warranty 3 years repair or replace (excluding battery) and 2 years for battery
Sustainable Offer Status

RoHS CompliantREACH REACH: Contains No SVHCs
