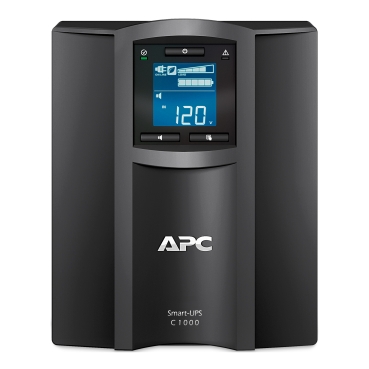

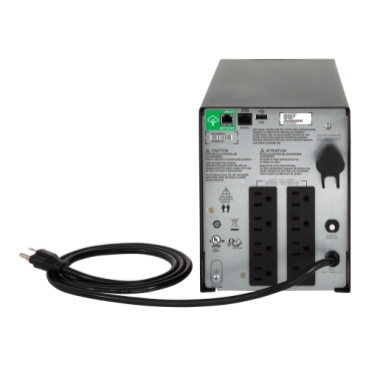

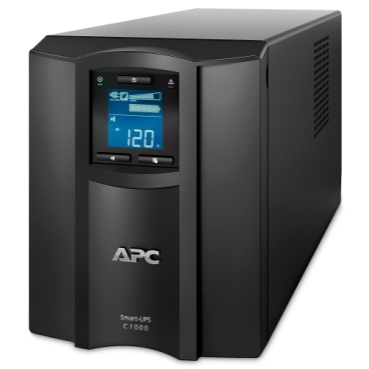

APC Smart-UPS C, Line Interactive, 1000VA, Tower, 120V, 8x NEMA 5-15R outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD
- 1000VA/600W line interactive pure sine wave tower UPS
- Ideal for entry-level servers, networks, retail POS, business VOIP and desktops
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
AED2,899.00
This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device.
Overview
| Parameter | Details |
|---|---|
| Lead Time | Usually Ships within 2 Weeks |
Main
| Parameter | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
Complementary
| Parameter | Details |
|---|---|
| Communication Port Type | SmartConnect Ethernet port |
| Software Package | SmartConnect software for remote monitoring (availability varies by terms) |
Batteries & Runtime
| Parameter | Details |
|---|---|
| Runtime Graph | View Runtime Graph |
| Efficiency Graph | View Efficiency Graph |
| Battery Type | Lead-Acid battery |
| Extendable Run Time | No |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC142 |
| Battery Charge Power | 72 W rated |
General
| Parameter | Details |
|---|---|
| Provided Equipment | USB cable |
| Number of Power Modules | 0 |
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Product Web Sub-Family | Cloud-enabled monitoring |
| Redundant | No |
Physical
| Parameter | Details |
|---|---|
| Cable Length | 6 ft (1.8 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 8.62 in (21.9 cm) |
| Width | 6.73 in (17.1 cm) |
| Depth | 17.28 in (43.9 cm) |
| Net Weight | 37.5 lb (17 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two Post Mountable | No |
| USB Compatible | Yes |
Input
| Parameter | Details |
|---|---|
| Main Input Voltage | 120 V |
| Other Input Voltages | 110 V, 125 V |
| Input Connection Type | NEMA 5-15P |
| Efficiency at Full Load | 85–136 V adjustable, 93–130 V |
| Input Frequency | 50/60 Hz ± 3 Hz auto-sensing |
Output
| Parameter | Details |
|---|---|
| Main Output Voltage | 120 V |
| Other Output Voltages | 110 V, 125 V |
| kW Rating | 600 W |
| Rated Power (VA) | 1000 VA |
| Output Connection Type | 8 × NEMA 5-15R |
| Harmonic Distortion | Less than 5% |
| Maximum Configurable Power (VA/W) | 1000 VA / 600 W |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (sync to mains) | 50/60 Hz ± 3 Hz |
Conformance
| Parameter | Details |
|---|---|
| Product Certifications | cULus, ENERGY STAR V2.0 (USA) |
| Equipment Protection Policy | Lifetime: $150,000 |
Environmental
| Parameter | Details |
|---|---|
| Acoustic Level | 41 dBA |
| Online Thermal Dissipation | 175 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Relative Humidity | 0–95% |
| Storage Relative Humidity | 0–95% |
