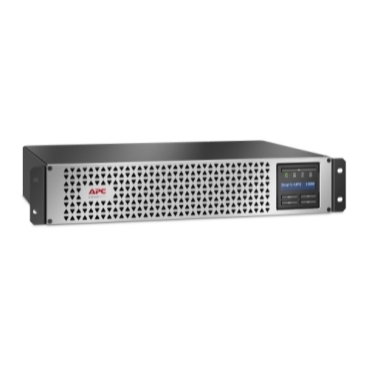

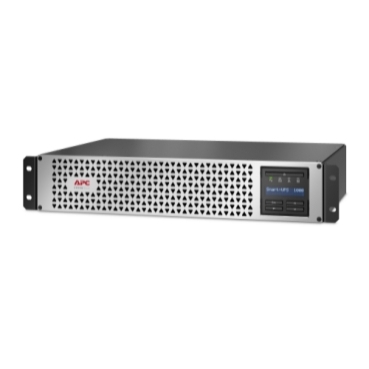

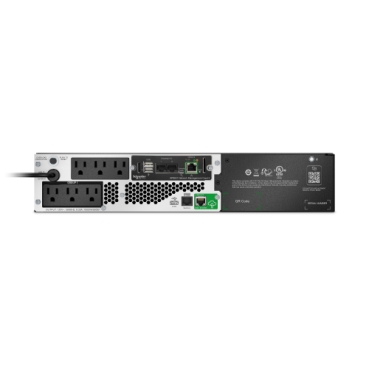

APC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rack/Tower, 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+Network Card, Short Depth, AVR
- 1000VA/800W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Short depth UPS provides extra space for cable management
AED15,999.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
| Category | Specification |
|---|
| Overview |
| Presentation | Intelligent and efficient network power protection for entry-level to scalable runtime. Ideal for servers, POS, routers, switches, hubs, and network devices. |
| Lead Time | Usually in Stock |
| Main |
| Product Type | Uninterruptible Power Supply (UPS) |
| Complementary |
| Communication Port Type | SmartConnect Ethernet port |
| Software Package | SmartConnect software for remote power monitoring (availability varies) |
| Batteries & Runtime |
| Battery Type | Li-Ion (Lithium Ion) |
| Battery Comments | Based on measured runtime data with new, fully charged batteries and resistive load. Actual runtimes vary by several factors. |
| Extendable Runtime | No |
| Typical Recharge Time | 3 h |
| Battery Design Life | 8–10 years |
| Battery Charge Power | 79 W rated |
| General |
| Provided Equipment | Rack mounting brackets, support rails, screws, washers, USB cable, Ethernet patch cable |
| Product Sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Physical |
| Rack Units | 2U |
| Cable Length | 8 ft (2.4 m) |
| Color | Black with silver front bezel |
| Height | 3.39 in (8.6 cm) |
| Width | 17.24 in (43.8 cm) |
| Depth | 12.52 in (31.8 cm) |
| Net Weight | 35.9 lb (16.3 kg) |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| USB Compatible | Yes |
| Input |
| Main Input Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Input Protection Type | Circuit breaker |
| Input Voltage Range | 75–154 V adjustable, 82–144 V typical |
| Input Frequency | 50/60 Hz ± 3 Hz auto-sensing |
| Output |
| Main Output Voltage | 120 V |
| kW Rating | 800 W |
| Rated Power (VA) | 1000 VA |
| Output Connections | 6 × NEMA 5-15R |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 5% |
| Max Configurable Power | 800 W / 1000 VA |
| Transfer Time | 6 ms typical / 10 ms max |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ± 3 Hz sync to mains |
| Conformance |
| Product Certifications | NOM |
| Equipment Protection | Lifetime: $150,000 |
| Environmental |
| Acoustic Level | 41 dBA |
| Thermal Dissipation | 135 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–25,000 ft (0–7620 m) |
| IP Degree of Protection | IP20 |
| Relative Humidity | 0–95% non-condensing |
| Storage Relative Humidity | 0–95% non-condensing |
