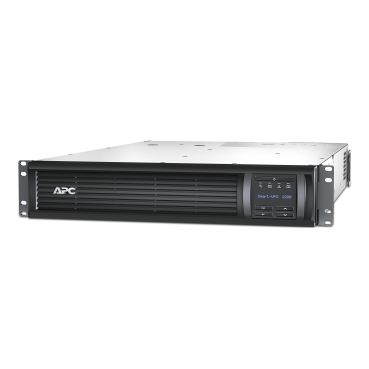

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartSlot, AVR, LCD [TAA]

Add to Wishlist
  • 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
  • Ideal for servers, storage, network closets, business VoIP and retail POS
  • Automatic Voltage Regulation helps correct utility voltage
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

AED13,699.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMT2200RMUS Category: Tag:
Category Specification
Overview
Lead time Usually Ships within 3 Weeks
Main
Product or Component Type Uninterruptible power supply (UPS)
Complementary
Communication port type SmartSlot
Batteries & Runtime
Battery Type Lead-Acid battery
Extendable Run Time 0
Included Battery Modules 0
Battery Slots Empty 0
Typical recharge time 3 h
RBC Quantity 1
Battery life 3–5 years
Replacement battery RBC43
Battery Charge Power 164 W rated
General
Provided equipment CD with software, Documentation CD, Rack Mounting brackets, Rack Mounting support rails, RS-232 cable, USB cable
Number of power modules 0
Filled module slots 0
Free module slots 0
Product web sub-family TAA compliance
Redundant No
Physical
Number of rack unit 2U
Cable length 8 ft (2.4 m)
Number of cables 1
Color Black
Height 3.39 in (8.6 cm)
Width 18.90 in (48 cm)
Depth 26.89 in (68.3 cm)
Net Weight 93.28 lb (42.31 kg)
Mounting Location Front
Mounting preference Lower
Mounting Mode Rack-mounted
Two post mountable No
USB compatible Yes
Input
Main Input Voltage 120 V
Input Connection Type NEMA 5-20P
Efficiency at full load 75–154 V adjustable, 82–143 V
Input Frequency 50/60 Hz ± 3 Hz auto-sensing
Output
Main Output Voltage 120 V
kW Rating 1920 W
Rated power in VA 1920 VA

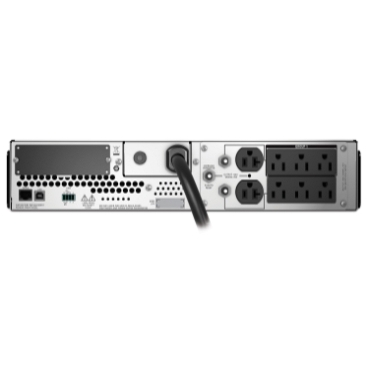

Output connection type 6 × NEMA 5-15R, 2 × NEMA 5-20R
Harmonic distortion Less than 5%
Max Configurable Power VA 2200 VA
Max Configurable Power W 1980 W
Transfer Time 4 ms typical, 8 ms maximum
Topology Line Interactive
Wave type Sine wave
Output Frequency 50/60 Hz ± 3 Hz sync to mains
Conformance
Product Certifications CSA, TAA compliance
Equipment protection Lifetime : $150,000
Environmental
Acoustic level 55 dBA
Online Thermal Dissipation 215 Btu/h
Operating altitude 0–10,000 ft
Operating temperature 32–104 °F (0–40 °C)
Storage temperature 5–113 °F (-15–45 °C)
Storage altitude 0–50,000 ft (0–15,240 m)
Relative Humidity 0–95%
Storage Relative Humidity 0–95%
