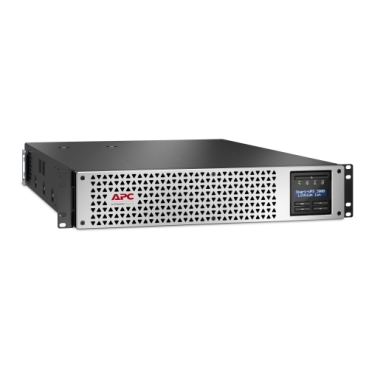

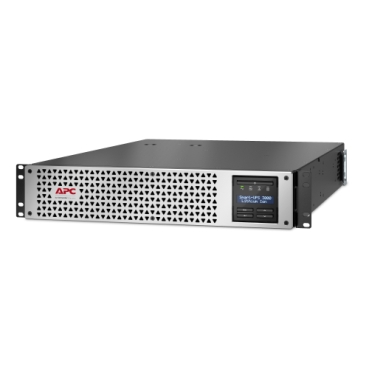

APC Smart-UPS, Line Interactive, 3kVA, Lithium-ion, Rackmount 2U, 120V, 2x NEMA 5-20R+6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD

2880VA/2700W line interactive pure sine wave 2U rackmount UPS

Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets

Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS

Cloud-based remote power monitoring via SmartConnect Ethernet Port

Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown

AED25,099.00

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.

SKU: SMTL3000RM2UC Category: UPS , Power Back up and accessories Tag: SMTL3000RM2UC

🧾 Overview

Attribute	Details
Lead Time	Usually in Stock
Product Type	Uninterruptible Power Supply (UPS)

⚡ Power & Performance

Attribute	Details
Run Time for Load	2700 W – 5 min 18 s
Min–Max Load Range	270–2700 W
Max Capacity Used	100%
kW Rating	2700 W
Rated Power (VA)	2880 VA
Max Configurable Power (Watts)	2700 W
Max Configurable Power (VA)	3000 VA
Input Voltage	120 V (also supports 110 V / 125 V)
Output Voltage	120 V (also supports 110 V / 125 V)
Input Frequency	50/60 Hz ± 3 Hz (auto-sensing)
Efficiency at Full Load	82–144 V
Transfer Time	6 ms typical / 10 ms maximum
Crest Factor	3:1
Harmonic Distortion	Less than 5%
Topology	Line Interactive
Wave Type	Sine wave
Output Frequency (sync to mains)	50/60 Hz ± 3 Hz

🔌 Input/Output Connections

Attribute	Details
Input Connection Type	NEMA L5-30P
Input Protection Type	Circuit breaker

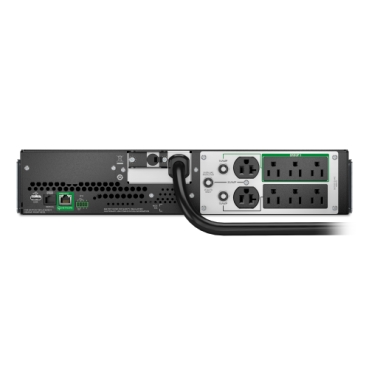

Output Connections	2 × NEMA 5-20R, 6 × NEMA 5-15R

🔋 Battery & Runtime

Attribute	Details
Battery Type	Li-Ion (Lithium Ion)
Typical Recharge Time	2 hours
Battery Charge Power	216 W rated
Replacement Battery	APCRBC174-LI
RBC Quantity	1
Extendable Runtime	No
Battery Design Life	8–10 years
Battery Runtime Graph Note	Runtime varies by battery age, charge level, environment

🧰 Included Equipment

Items Provided
Rack Mounting Brackets
Rack Mounting Support Rails
Screw
Washer
USB Cable
Ethernet Patch Cable

🌐 Connectivity & Software

Attribute	Details
Communication Ports	SmartConnect Ethernet port
SmartSlot	Yes
Software Package	SmartConnect software for remote monitoring
Web Sub-Family	Cloud-enabled monitoring

📦 Physical Specifications

Attribute	Details
Color	Black with silver front bezel
Height	3.39 in (8.6 cm)
Width	17.01 in (43.2 cm)
Depth	26.89 in (68.3 cm)
Net Weight	75.44 lb (34.22 kg)
Rack Units (U)	2U
Cable Length	8 ft (2.4 m)
Mounting Preference	Lower
Mounting Mode	Rack-mounted
USB Compatible	Yes

✅ Certifications & Policies

Attribute	Details
Product Certifications	cULus, ENERGY STAR V2.0 (USA)
Equipment Protection Policy	Lifetime: $150,000

🌱 Environmental Specifications

Attribute	Details
Operating Temperature	32–104 °F (0–40 °C)
Storage Temperature	5–113 °F (-15–45 °C)
Operating Altitude	0–10,000 ft
Storage Altitude	0–25,000 ft (0–7620 m)
Operating Humidity	0–95% non-condensing
Storage Humidity	0–95% non-condensing
Acoustic Level	55 dB
Online Thermal Dissipation	348 Btu/h
IP Degree of Protection	IP20
