UPS , Power Back up and accessories

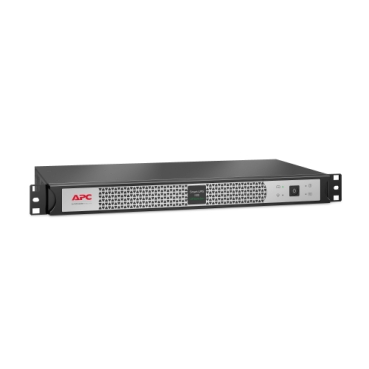

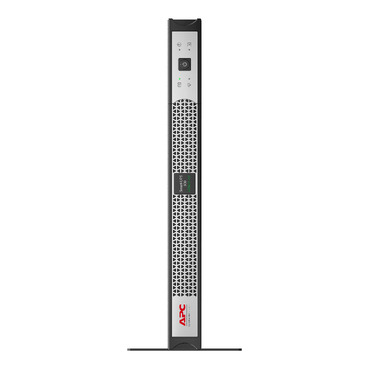

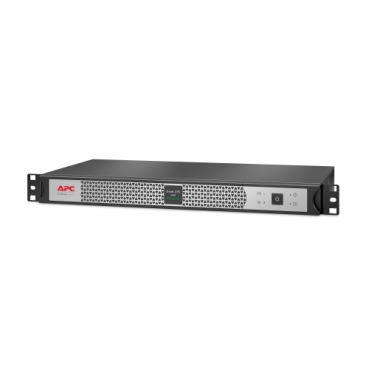

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Short depth UPS provides extra space for cable management
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
AED3,199.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.
Overview
| Parameter | Details |
|---|---|
| Lead Time | Usually in Stock |
Main Specifications
| Parameter | Details |
|---|---|
| Run Time for Load | 400 W |
| Min-Max Load | 40–400 W |
| Runtime at Full Load | 3 min 26 sec |
| Max. Capacity Used | 100% |
| Product Type | Uninterruptible Power Supply (UPS) |
Complementary
| Parameter | Details |
|---|---|
| Communication Port Type | SmartConnect Ethernet port |
| Software Package | SmartConnect software for remote power monitoring (availability varies by terms) |
Batteries & Runtime
| Parameter | Details |
|---|---|
| Run Time Graph | View Runtime Graph |
| Efficiency Graph | View Efficiency Graph |
| Battery Type | Li-Ion (Lithium Ion) |
| Battery Notes | Runtime varies with age, charge level, environment, and load characteristics |
| Extendable Run Time | No |
| Battery Design Life | 8–10 years |
| Battery Charge Power | 10 W (rated) |
General
| Parameter | Details |
|---|---|
| Provided Equipment | CD with software, Documentation CD, Installation guide, Rack support rails, USB cable |
| Product Web Sub-Family | Cloud-enabled monitoring |
| Redundant | No |
Physical
| Parameter | Details |
|---|---|
| Rack Units | 1U |
| Cable Length | 6 ft (1.8 m) |
| Number of Cables | 1 |
| Color | Black with silver front bezel |
| Height | 1.73 in (4.4 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 9.13 in (23.2 cm) |
| Net Weight | 9.22 lb (4.18 kg) |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted |
| USB Compatible | Yes |
Input
| Parameter | Details |
|---|---|
| Main Input Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Input Protection Type | Circuit breaker |
| Efficiency at Full Load | 92–139 V |
| Input Frequency | 50/60 Hz ± 3 Hz (auto sensing) |
Output
| Parameter | Details |
|---|---|
| Main Output Voltage | 120 V |
| kW Rating | 400 W |
| Rated Power (VA) | 500 VA |

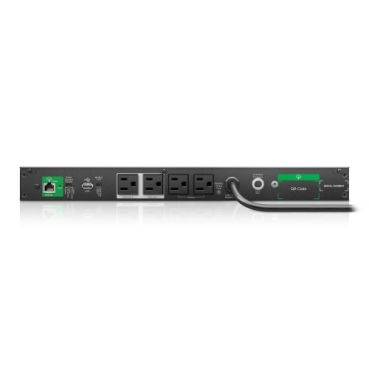

| Output Connection Type | 4 × NEMA 5-15R |
| Harmonic Distortion | Less than 5% |
| Maximum Configurable Power (VA/W) | 500 VA / 400 W |
| Transfer Time | 6 ms typical, 10 ms max |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (sync to mains) | 50/60 Hz ± 3 Hz |
Conformance
| Parameter | Details |
|---|---|
| Product Certifications | cULus, NOM |
| Equipment Protection Policy | Lifetime: $150,000 |
Environmental
| Parameter | Details |
|---|---|
| Acoustic Level | 45 dBA |
| Online Thermal Dissipation | 41.61 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–25,000 ft (0–7,620 m) |
| IP Degree of Protection | IP20 |
| Operating/Storage Relative Humidity | 0–95% non-condensing |
