UPS , Power Back up and accessories

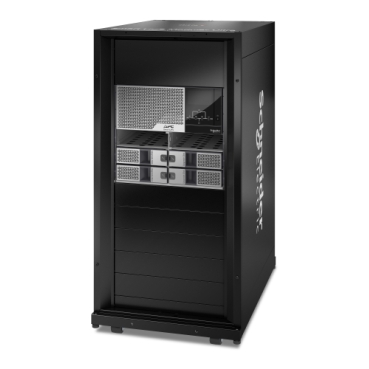

APC Smart-UPS Modular Ultra 15kW Frame, N+1 Redundant,Tower, 24U, 208/120V
- 24U Tower UPS chassis, scalable to 15kW
- 100 Amp input Smart-UPS Modular Ultra Tower Frame
- Works with genuine APC modules SRYL5KPMT, SRYLBM sold separately
AED168,099.00
Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.
UPS Frame Specification Table
| Category | Parameter | Value |
|---|---|---|
| Overview | Lead Time | Usually in Stock |
| Main | Main Input Voltage | 208 V AC |
| Product or Component Type | Frame | |
| Main Output Voltage | 240 V AC | |
| Other Output Voltage | 240 V | |
| Battery Type | Li-Ion (Lithium Ion) | |
| Range of Product | Smart-UPS Modular Ultra | |
| General | Product Web Sub-family | Network management card |
| Number of Power Modules | 2 | |
| Number of Preinstalled Power Modules | 2 | |
| Physical | Color | Black and silver |
| Height | 47.2 in (1198 mm) | |
| Width | 23.6 in (600 mm) | |
| Depth | 35.4 in (900 mm) | |
| Product Weight | 342.2 lb (155.2 kg) | |
| Mounting Mode | Rack-mounted with kit | |
| Input | Input Frequency | 40–70 Hz |
| Number of Input Connectors | 1 Hard Wire 4-wire (2PH+N+G) | |
| Maximum Input Current per Phase | 51 A | |
| Load Power Factor | 0.5 leading to 0.5 lagging | |
| Output | Topology | On-Line |
| Waveform Type | Sine wave | |
| Overload Operation | 60 seconds @ 125%, 30 seconds @ 150% | |
| Bypass Type | Built-in Bypass |
