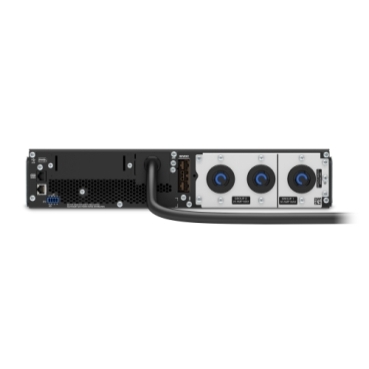

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V, 2x L6-20R+1x L6-30R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit

Add to Wishlist
  • 3kVA/2.7kW double-conversion on-line pure sine wave 2U rackmount UPS
  • Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
  • Rack/Tower convertible (rail kit included)
  • Delivers clean power with zero transfer time for critical or sensitive devices
  • Add up to 10 external battery packs (SRT96RMBP) for extended runtime

AED25,699.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 1x NEMA L6-30R and 2x NEMA L6-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown.

SKU: SRT3000RMXLT Category: Tag:
Category Specification
Overview
Lead time Usually in Stock
Main
Main Input Voltage 208 V
Product or Component Type Uninterruptible power supply (UPS)
Other Input Voltage 240 V
Main Output Voltage 208 V
Other Output Voltage 240 V
Kw Rating 2700 W
Rated power in VA 3000 VA
Input Connection Type NEMA L6-20P
Output connection type 2 NEMA L6-20R, 1 NEMA L6-30R
Number of rack unit 2U
Cable length 10 ft (3.05 m)
Number of cables 1
Provided equipment CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting brackets, Rack Mounting support rails, USB cable, Warranty card
Range of Product Smart-UPS On-Line
Batteries & Runtime
Run Time View Runtime Graph (action_new_window)
Efficiency View Efficiency Graph (action_new_window)
Battery Type Lead-Acid battery
Battery Voltage 96 V
Extendable Run Time Yes (1)
Included Battery Modules 2
Typical recharge time 3 h
RBC Quantity 1
Battery life 3–5 year(s)
Replacement battery APCRBC152 (action_new_window)
Battery Charge Power (Watts) 165 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Product web sub-family High density
Redundant No
Topology Double Conversion Online
Physical
Color Black
Height 3.35 in (8.5 cm)
Width 17.01 in (43.2 cm)
Depth 25.00 in (63.5 cm)
Net Weight 69.005 lb (31.3 kg)
Mounting Location Front
Mounting preference Lower
Mounting Mode Rack-mounted
Two post mountable 0
USB compatible Yes
Mounting position Horizontal
Input
Efficiency at full load 100…275 V adjustable (half load)
Input Frequency 40 – 70 Hz auto-sensing
Output
Bypass type Internal Bypass (Automatic and Manual)
Crest factor 3 : 1
Harmonic distortion Less than 2%
Maximum configurable power in VA 3000 VA
Max Configurable Power (Watts) 2700 W
Wave type Sine wave
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz sync to mains
Additional information Configurable for 208 or 240 nominal output voltage
Conformance
Product Certifications ENERGY STAR V2.0 (USA)
Environmental
Acoustic level 55 dBA
Online Thermal Dissipation 773 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 32…104 °F (0…40 °C)
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage altitude 0…50000 ft (0…15240 m)
IP degree of protection IP20
Relative Humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing
