UPS , Power Back up and accessories

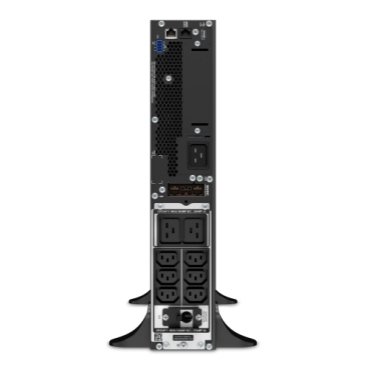

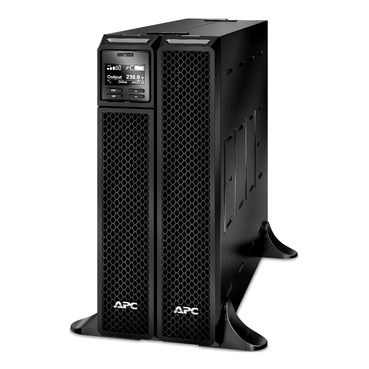

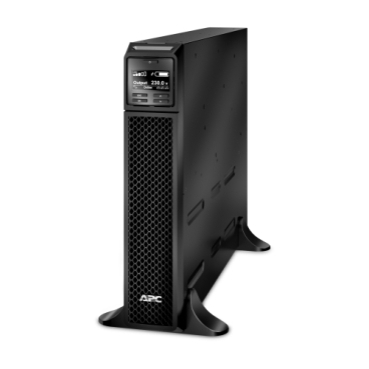

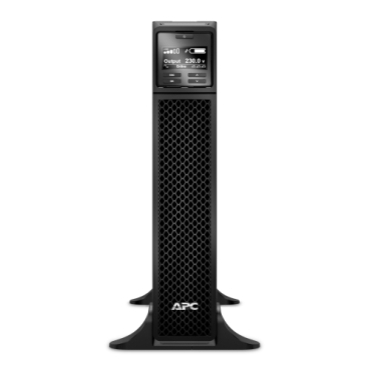

APC Smart-UPS On-Line, 3kVA, Tower, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit
- 3kVA/2.7kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
AED25,399.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Overview
| Feature | Description |
|---|---|
| Presentation | High density, double-conversion on-line power protection with scalable runtime |
| Lead Time | Usually in Stock |
Main
| Product Type | Uninterruptible Power Supply (UPS) |
|---|---|
| Range of Product | Smart-UPS On-Line |
| Main Input Voltage | 208 V / 230 V |
| Other Input Voltages | 220 V / 240 V |
| Main Output Voltage | 208 V / 230 V |
| Other Output Voltages | 220 V / 240 V |
| kW Rating | 2700 W |
| Rated Power (VA) | 3000 VA |
| Input Connection Types | BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P |
| Output Connection Types | 6 × IEC 60320 C13, 2 × IEC Jumpers, 2 × IEC 60320 C19 |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 3 |
| Provided Equipment | CD with software, Documentation CD, Installation guide, Removable support feet, RS-232 cable, USB cable |
Batteries & Runtime
| Battery Type | Lead-Acid battery |
|---|---|
| Battery Voltage | 96V |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 1 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC152 |
| Battery Charge Power | 168 W rated |
General
| Power Module (Filled Slots) | 0 |
|---|---|
| Power Module (Free Slots) | 0 |
| Product Web Sub-Family | High density |
| Redundant | No |
| Topology | Double Conversion Online |
Physical
| Color | Black |
|---|---|
| Height | 17.01 in (43.2 cm) |
| Width | 3.35 in (8.5 cm) |
| Depth | 25.00 in (63.5 cm) |
| Net Weight | 69.005 lb (31.3 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Rack-mounted with kit |
| Mounting Position | Vertical |
| Two-Post Mountable | No (0) |
| USB Compatible | Yes |
Input
| Efficiency Voltage Range | 100–275 V (adjustable at half load) |
|---|---|
| Input Frequency | 40–70 Hz auto-sensing |
Output
| Bypass Type | Internal Bypass (Automatic and Manual) |
|---|---|
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 2% |
| Max Configurable Power (VA) | 3000 VA |
| Max Configurable Power (Watts) | 2700 W |
| Wave Type | Sine wave |
| Output Frequency (sync) | 50/60 Hz ± 3 Hz sync to mains |
| Additional Info | Configurable for 220V, 230V, or 240V output |
Conformance
| Certifications | CE, EAC, ENERGY STAR V2.0 (USA), RCM, VDE, UK PSTI |
|---|---|
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
Environmental
| Acoustic Level | 55 dBA |
|---|---|
| Thermal Dissipation (Online) | 703 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft |
| IP Protection | IP20 |
| Relative Humidity (Operating) | 0–95% non-condensing |
| Relative Humidity (Storage) | 0–95% non-condensing |
