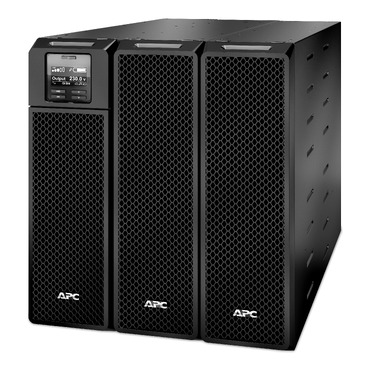

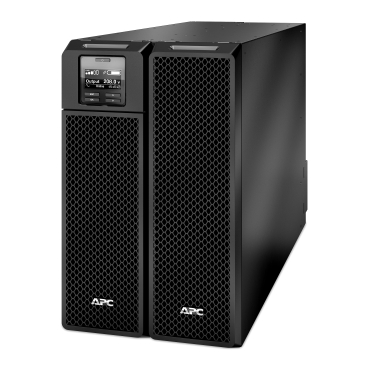

APC Smart-UPS On-Line, 8kVA/8kW, Tower, 208V, 4x L6-20R+2x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Add to Wishlist
  • 8kVA/8kW double-conversion on-line pure sine wave tower UPS
  • Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
  • Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
  • Add up to 10 external battery packs (SRT192BP2) for extended runtime

AED57,099.00

Add to Wishlist

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms

SKU: SRT8KXLT Category: Tag:

Overview

Attribute Details
Presentation High density, double-conversion on-line power protection with scalable runtime
Lead Time Usually in Stock

Main

Attribute Details
Main Input Voltage 208 V
Other Input Voltage 240 V
Main Output Voltage 208 V
Other Output Voltage 240 V
Power Rating 8000 W / 8000 VA

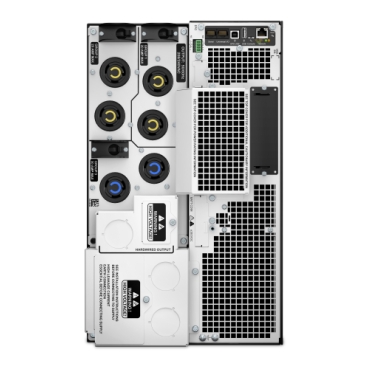

Output Connection Types 4 × NEMA L6-20R, 2 × NEMA L6-30R
Output Connector Type 1 × Hard Wire 3-wire (2PH + G)
Provided Equipment CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
Range of Product Smart-UPS On-Line

Batteries & Runtime

Attribute Details
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery Type Lead-Acid battery
Battery Voltage +/-192 V (split battery referenced to neutral)
Extendable Run Time Yes (1)
Included Battery Modules 0
Typical Recharge Time 1.5 hours
RBC Quantity 2
Battery Life 3–5 years
Replacement Battery APCRBC140
Battery Charge Power 1136 W rated

General

Attribute Details
Power Module Filled Slots 0
Power Module Free Slots 0
Web Sub-Family High density
Redundant No
Topology Double Conversion Online

Physical

Attribute Details
Color Black
Height 17.01 in (43.2 cm)
Width 10.35 in (26.3 cm)
Depth 28.15 in (71.5 cm)
Net Weight 245.99 lb (111.58 kg)
Mounting Location Front
Mounting Preference No preference
Mounting Mode Rack-mounted with kit
Two Post Mountable No (0)
USB Compatible Yes

Input

Attribute Details
Efficiency at Full Load 100–275 V adjustable (half load)
Number of Input Connectors 1 × Hard Wire 3-wire (2PH + G)
Input Frequency 40–70 Hz (auto-sensing)

Output

Attribute Details
Bypass Type Internal Bypass (Automatic and Manual)
Crest Factor 3:1
Harmonic Distortion Less than 2%
Max Configurable Power 8000 W / 8000 VA
Wave Type Sine wave
Output Frequency (Sync to Mains) 50/60 Hz ± 3 Hz

Conformance

Certifications
ENERGY STAR V2.0 (USA)
FCC Part 15 Class A
NOM
UL 1778

Environmental

Attribute Details
Acoustic Level 55 dBA
Online Thermal Dissipation 1712 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
IP Degree of Protection IP20
Relative Humidity (Operating/Storage) 0–95% (non-condensing)
