04 3550600 052 7036860

APC Smart-UPS On-Line, 8kVA/8kW, Tower, 208V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Add to Wishlist
  • 8kVA/8kW double-conversion on-line pure sine wave tower UPS
  • Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
  • Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
  • Add up to 10 external battery packs (SRT192BP2) for extended runtime

AED58,999.00

Add to Wishlist

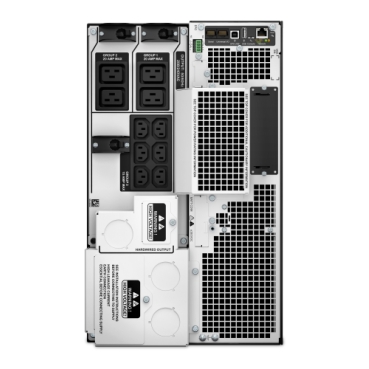

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SRT8KXLT-IEC Category: Tag:
Category Specification
Overview
Lead time Usually in Stock
Main
Main Input Voltage 208 V
Product or Component Type Uninterruptible power supply (UPS)
Other Input Voltage 240 V
Main Output Voltage 208 V
Other Output Voltage 240 V
Kw Rating 8000 W
Rated power in VA 8000 VA
Output connection type 6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19
Output connector type Hard Wire 3-wire (2PH + G)
Provided equipment CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
Range of Product Smart-UPS On-Line
Batteries & Runtime
Run Time View Runtime Graph (action_new_window)
Efficiency View Efficiency Graph (action_new_window)
Battery Type Lead-Acid battery
Battery Voltage +/-192 V (split battery referenced to neutral)
Extendable Run Time Yes (1)
Included Battery Modules 0
Typical recharge time 1.5 h
RBC Quantity 2
Battery life 3–5 year(s)
Replacement battery APCRBC140 (action_new_window)
Battery Charge Power (Watts) 1136 W rated
General
Number of power module filled slots 0
Number of power module free slots 0
Product web sub-family High density
Redundant No
Topology Double Conversion Online
Physical
Color Black
Height 17.01 in (43.2 cm)
Width 10.35 in (26.3 cm)
Depth 28.15 in (71.5 cm)
Net Weight 245.99 lb (111.58 kg)
Mounting Location Front
Mounting preference No preference
Mounting Mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Input
Efficiency at full load 100…275 V adjustable (half load)
Number of input connectors 1 Hard Wire 3-wire (2PH + G)
Input Frequency 40 – 70 Hz auto-sensing
Output
Bypass type Internal Bypass (Automatic and Manual)
Crest factor 3 : 1
Harmonic distortion Less than 2%
Maximum configurable power in VA 8000 VA
Max Configurable Power (Watts) 8000 W
Wave type Sine wave
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz sync to mains
Conformance
Product Certifications ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778
Environmental
Acoustic level 55 dBA
Online Thermal Dissipation 1712 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 32…104 °F (0…40 °C)
Ambient Air Temperature for Storage 5…113 °F (-15…45 °C)
Storage altitude 0…50000 ft (0…15240 m)
IP degree of protection IP20
Relative Humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing
