AED131,499.00

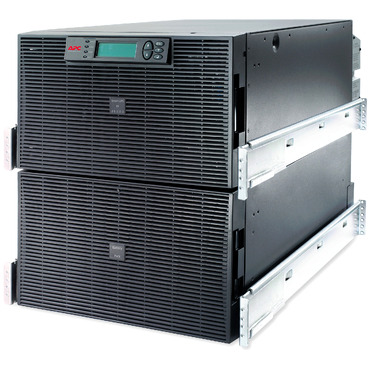

The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
| Category | Specification |
|---|---|
| Overview | |
| Lead Time | Usually Ships within 2 Weeks |
| Main | |
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Product Type | Uninterruptible Power Supply (UPS) |
| Main Output Voltage | 208 V |
| Other Output Voltage | 240 V |
| kW Rating | 16000 W |
| Rated Power in VA | 20000 VA |
| Output Connection Types | 4 NEMA L6-20R, 2 NEMA L6-30R |
| Output Connector Type | Hard Wire 3-wire (2PH + G) 1 |
| Number of Rack Units | 12U |
| Provided Equipment | CD with software, Rack Mounting support rails, RS-232 cable, User Manual, Web/SNMP Management Card |
| Range of Product | Smart-UPS On-Line |
| Batteries & Runtime | |
| Battery Type | Lead-Acid battery |
| Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 4 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 2 hours |
| RBC Quantity | 4 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC140 |
| End of Discharge Voltage | +/-154 V |
| Battery Charge Power | 1910 W rated |
| General | |
| Filled Power Module Slots | 0 |
| Free Power Module Slots | 0 |
| Redundant | No |
| Topology | Double Conversion Online |
| Physical | |
| Color | Black |
| Height | 20.98 in (53.3 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 30.43 in (77.3 cm) |
| Net Weight | 546.15 lb (247.73 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two-Post Mountable | No |
| USB Compatible | No |
| Input | |
| Max Input Current per Phase | 114 A |
| Input Total Harmonic Distortion | < 5% (full load) |
| Input Power Factor at Full Load | 0.99 |
| Switching Current Capacity | 125 A |
| Efficiency Input Range | 160–280 V |
| Number of Input Connectors | 1 Hard Wire 3-wire (2PH + G) |
| Input Frequency | 40–70 Hz auto-sensing |
| Output | |
| Bypass Type | Built-in Static Bypass, Internal Bypass (Auto & Manual), Optional External Bypass |
| Crest Factor | 3:1 |
| Harmonic Distortion | < 5% |
| Max Configurable Power (VA) | 20000 VA |
| Max Configurable Power (W) | 16000 W |
| Overload Operation | 60s @ 125%, 30s @ 150% |
| Wave Type | Sine wave |
| Efficiency at Full Load | 93% (in battery operation) |
| Output Frequency | 50/60 Hz ±3 Hz user adjustable, ±0.1 Hz sync to mains |
| Additional Information | Configurable for 208 or 240 nominal output voltage |
| Conformance | |
| Product Certifications | UL 1778 |
| Environmental | |
| Acoustic Level | 59 dBA |
| Online Thermal Dissipation | 4320 Btu/h |
| Operating Altitude | 0–10000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50000 ft (0–15240 m) |
| IP Degree of Protection | IP20 |
| Relative Humidity (Op/Store) | 0–95% non-condensing |
| Communications & Management | |
| Emergency Power Off (EPO) | Yes |
| Free SmartSlot™ Slots | 0 |
| Pre-Installed SmartSlot™ Cards | Network management card 2 with environmental monitoring |
