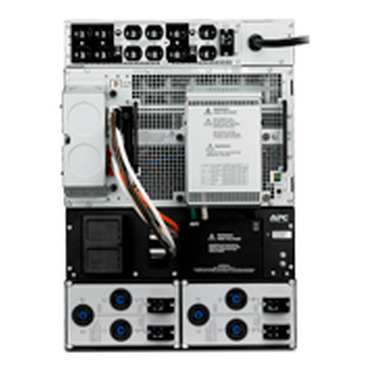

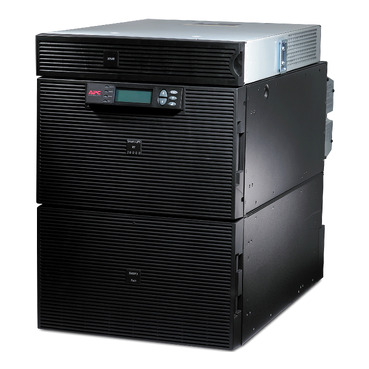

APC Smart-UPS RT 20kVA, 208V, LCD, rackmount, 14U, 12x 5-20R & 4x L6-20R & 1x L6-30R NEMA outlets, w/transfo 208V to 120V
- 20kVA power capacity for high-demand environments
- True double-conversion on-line power protection
- Rackmount design fits 14U space for flexible installation
- LCD display for easy monitoring and management
AED144,699.00
The APC Smart-UPS RT is an online UPS with transformer and a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Overview
| Attribute | Value |
|---|---|
| Lead Time | Usually Ships within 2 Weeks |
| Run Time for Load | 4 min 53 s at 16000 W (Min-max: 1600–16000 W) |
| Max. Capacity Used | 100% |
| Main Input Voltage | 208 V |
| Product Type | Uninterruptible Power Supply (UPS) |
| Main Output Voltage | 120 V, 208 V |
| kW Rating | 16000 W |
| Rated Power (VA) | 20000 VA |
| Output Connections | 12 × NEMA 5-20R, 4 × NEMA L6-20R, 1 × NEMA L6-30R, 1 × Hard Wire 3-wire (2PH + G) |
| Rack Units | 14U |
| Provided Equipment | CD with software, Rack Mounting Support Rails, RS-232 Cable, User Manual, Web/SNMP Management Card |
| Range of Product | Smart-UPS On-Line |
Batteries & Runtime
| Attribute | Value |
|---|---|
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery Type | Lead-Acid Battery |
| Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 4 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 2.5 h |
| RBC Quantity | 4 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC140 |
| End of Discharge Voltage | +/-154 V |
| Battery Charge Power | 1530 W rated |
General
| Attribute | Value |
|---|---|
| Filled Power Module Slots | 0 |
| Free Power Module Slots | 0 |
| Redundant | No |
| Topology | Double Conversion Online |
Physical
| Attribute | Value |
|---|---|
| Color | Black |
| Height | 24.49 in (62.2 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 30.43 in (77.3 cm) |
| Net Weight | 641.35 lb (290.91 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No (0) |
| USB Compatible | No |
Input
| Attribute | Value |
|---|---|
| Max Input Current per Phase | 105 A |
| Input THD | Less than 5% for full load |
| Input Power Factor (Full Load) | 0.98 |
| Switching Current Capacity | 125 A |
| Efficiency Voltage Range | 160–280 V |
| Input Connectors | 1 Hard Wire 3-wire (2PH + G) |
| Input Frequency | 40–70 Hz auto-sensing |
Output
| Attribute | Value |
|---|---|
| Bypass Type | Built-in Static, Internal (Auto/Manual), Optional External |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 5% |
| Max Configurable Power (VA) | 20000 VA |
| Max Configurable Power (W) | 16000 W |
| Overload Operation | 60 sec @ 125%, 30 sec @ 150% |
| Wave Type | Sine wave |
| Efficiency (Full Load) | 93% (on battery operation) |
| Output Frequency (Sync to Mains) | 50/60 Hz ±3 Hz (user adj. ±0.1 Hz when synced) |
Conformance
| Attribute | Value |
|---|---|
| Product Certifications | UL 1778 |
Environmental
| Attribute | Value |
|---|---|
| Acoustic Level | 59 dBA |
| Thermal Dissipation | 4320 Btu/h |
| Operating Altitude | 0–10000 ft |
| Operating Temp | 32–104 °F (0–40 °C) |
| Storage Temp | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50000 ft (0–15240 m) |
| IP Degree of Protection | IP20 |
| Relative Humidity (Operating) | 0–95% non-condensing |
| Relative Humidity (Storage) | 0–95% non-condensing |
