UPS , Power Back up and accessories

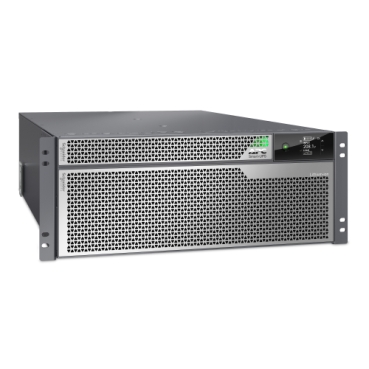

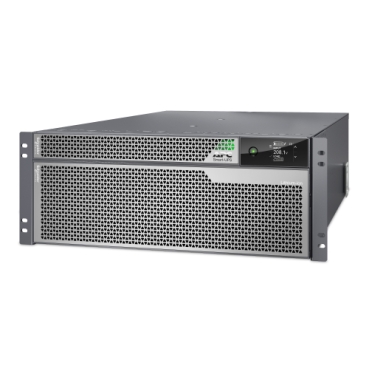

APC Smart-UPS Ultra On-Line, 10000VA, Lithium-ion, Rack/Tower 4U, 208V, 2 L6-20R + 2 L6-30R NEMA outlets, Network Card, Extended runtime, W/rail kit
- 4U, 10000VA/10000W rack/ tower convertible UPS with autorotating LCD display
- Add up to 10 external battery packs (SRTL180RM2UBP) for extended runtime
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure™ Ready for remote monitoring and management
AED104,499.00
With Smart-UPS™ Ultra you can put up to 10000W of power protection in places never before possible. Make installation effortless with a 10kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime.
Overview
| Attribute | Value |
|---|---|
| Lead Time | Usually in Stock |
Main
| Attribute | Value |
|---|---|
| Run Time for Load | 10000 W |
| Min-Max Load | 1000–10000 W |
| Runtime at Max Load | 5 min 34 s |
| Max. Capacity Used | 100% |
| Main Input Voltage | 208 V AC |
| Product or Component Type | Uninterruptible Power Supply (UPS) |
| Other Input Voltage | 208/240 V |
| Main Output Voltage | 208 V AC |
| Other Output Voltage | 208 V |
| kW Rating | 10000 W |
| Rated Power in VA | 10000 VA |
| Input Connection Type | Hard Wire 3-wire 58 A |

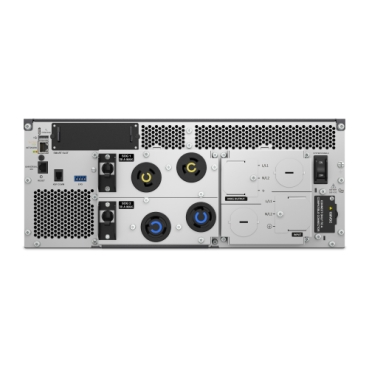

| Output Connection Type | 2 NEMA L6-30R, 2 NEMA L6-20R |
| Output Connector Type | Hard Wire 3-wire (2PH + G) x1 |
| Number of Rack Units | 4U |
| Number of Cables | 1 |
| Battery Type | Li-Ion (Lithium Ion) |
| Provided Equipment | Temperature Probe, USB Cable, Stabilization Feet, Strain Relief, Rack Mounting Hardware |
| Range of Product | Smart-UPS Ultra |
Batteries & Runtime
| Attribute | Value |
|---|---|
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 1.5 h |
| RBC Quantity | 2 |
| Battery Voltage | 180 V |
| Battery Charge Power | 1200 W rated |
| Battery Life | 5–10 years |
| Extendable Run Time | Yes (1) |
General
| Attribute | Value |
|---|---|
| Product Web Sub-Family | High Density |
| Number of Power Module Free Slots | 0 |
| Redundant | No |
Physical
| Attribute | Value |
|---|---|
| Color | Silver Grey |

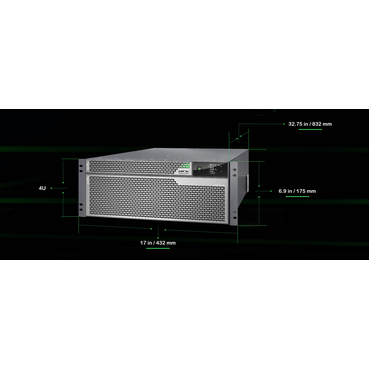

| Height | 6.9 in (175 mm) |
| Width | 17.008 in (432 mm) |
| Depth | 32.8 in (832 mm) |
| Product Weight | 121.3 lb(US) (55 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted with kit, Tower-mounted with kit |
| USB Compatible | Yes |
| Mounting Position | Horizontal, Vertical |
Input
| Attribute | Value |
|---|---|
| Input Frequency | 40–70 Hz ± 0.1 Hz (auto-sensing) |
| Number of Input Connectors | 1 Hard Wire 3-wire (2PH + G) |
Output
| Attribute | Value |
|---|---|
| Max Configurable Power (Watts) | 10000 W |
| Harmonic Distortion | Less than 5% |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
| Crest Factor | 3:1 |
| Topology | Double Conversion Online |
| Waveform Type | Sine Wave |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Full Load Runtime | 00:05:00 (10000 W) |
| Half Load Runtime | 00:11:00 (5000 W) |
| Max Configurable Power (VA) | 10000 VA |
Conformance
| Attribute | Value |
|---|---|
| Product Certifications | cULus, ENERGY STAR V2.0 (USA) |
| Marking | UL |
| Standards | UL 1778 |
Environmental
| Attribute | Value |
|---|---|
| Operating Ambient Temperature | 32–104 °F (0–40 °C) |
| Relative Humidity (Operating) | 0–95% non-condensing |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Relative Humidity | 0–95% non-condensing |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Acoustic Level | 55 dB |
| Online Thermal Dissipation | 1800 Btu/h |
| IP Degree of Protection | IP20 |
