UPS , Power Back up and accessories

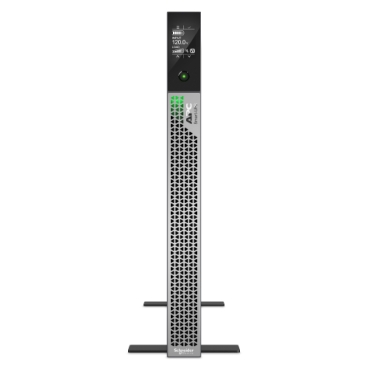

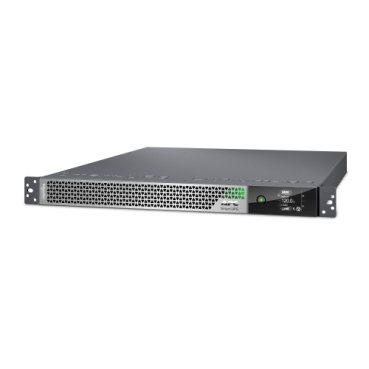

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 120V, 5x 5-20R + 1x L5-30R NEMA outlets, Network Card, Extended runtime, W/rail kit
- 3kVA/2880W on-line pure sine wave 1U rackmount UPS
- Add up to 5 external battery packs (SRTL50RMBP1U-Li) for extended runtime
- Rack/Tower convertible (rail kit included)
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
AED43,899.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
š§¾ Overview
| Attribute | Details |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Smart-UPS Ultra |
| Redundant | No |
ā” Power Specifications
| Attribute | Details |
|---|---|
| Run Time for Load | 4 min 27 sec @ 2850 W |
| Power Range | 285ā2850 W |
| Max Capacity Used | 100% |
| kW Rating | 2850 W |
| Rated Power (VA) | 2880 VA |
| Max Configurable Power (W) | 2850 W |
| Max Configurable Power (VA) | 2880 VA |
| Crest Factor | 3:1 |
| Topology | On-Line |
| Wave Type | Sine wave |
| Bypass Type | Internal Bypass (Auto/Manual) |
š Input Specifications
| Attribute | Details |
|---|---|
| Main Input Voltage | 120 V, 125 V |
| Other Input Voltage | 120 V, 125 V |
| Input Frequency | 50/60 Hz |
| Input Connection | NEMA L5-30P |
š Battery & Runtime
| Attribute | Details |
|---|---|
| Battery Type | Li-Ion (Lithium Ion) |
| Battery Voltage | 50 V |
| Typical Recharge Time | 1.5 hours |
| Battery Charge Power | 448 W |
| Extendable Run Time | Yes (1 supported) |
| RBC Quantity | 1 |
| Replacement Battery | APCRBC173-LI |
| Runtime Graph | View Runtime Graph |
| Efficiency Graph | View Efficiency Graph |
š Output Specifications
| Attribute | Details |
|---|---|
| Main Output Voltage | 120 V |
| Other Output Voltage | 120 V, 125 V |
| Output Frequency | 50/60 Hz Ā± 3 Hz (sync to mains) |

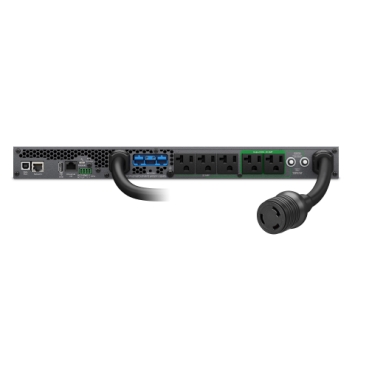

| Output Connections | 5 x NEMA 5-20R, 1 x NEMA L5-30R |
š§° Included Equipment
| Items Included |
|---|
| RJ45 Cable, USB Cable, Country-specific Detachable Power Cord, |
| Rack Mounting Brackets, Rack Mounting Support Rails, Installation Guide, |
| Warranty Card |
š¦ Physical Specifications
| Attribute | Details |
|---|---|
| Color | Silver Grey |
| Height | 1.7 in (43 mm) |
| Width | 17.008 in (432 mm) |
| Depth | 22.05 in (560 mm) |
| Net Weight | 35.05 lb (15.9 kg) |
| Mounting Mode | Rack-mounted / Tower-mounted |
| Mounting Preference | No preference |
| Two Post Mountable | Yes |
| Rack Units | 1U |
| USB Compatible | Yes |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
š± Environmental Specifications
| Attribute | Details |
|---|---|
| Operating Temp Range | 32ā104 Ā°F (0ā40 Ā°C) |
| Storage Temp Range | 5ā113 Ā°F (-15ā45 Ā°C) |
| Operating Humidity | 0ā95% non-condensing |
| Storage Humidity | 0ā95% non-condensing |
| Operating Altitude | 0ā10,000 ft |
| Storage Altitude | 0ā50,000 ft (0ā15,240 m) |
| Acoustic Level | 55 dB |
| IP Degree of Protection | IP20 |
ā Certifications & Standards
| Attribute | Details |
|---|---|
| Product Certifications | UL/cUL listed, FCC |
| Standards | UL 1778, CSA C22.2 No.107.3-05, FCC Part 15 Class A |
